【Godot】Complete Guide to Area2D in Godot Engine: Range Detection and Trigger Implementation

Introduction: Why Range Detection Matters

In game development, range detection and trigger implementation are essential elements for enriching interactions between the player and the game world. For example, enemy characters "discovering" the player within their detection range, areas where items can be "picked up," and mechanisms that trigger events when entering specific areas—all of these rely on range detection technology.

In Godot Engine, the Area2D node handles range detection and trigger functionality. This article covers everything from basic Area2D usage to practical trigger implementations like enemy detection ranges and continuous damage zones, as well as performance optimization.

---

What is Area2D? The Difference from Physics Collision

Area2D is a node for defining a region (area) in 2D space. Its main purpose is to detect states like "entered," "exited," or "overlapping" when other objects interact with that region.

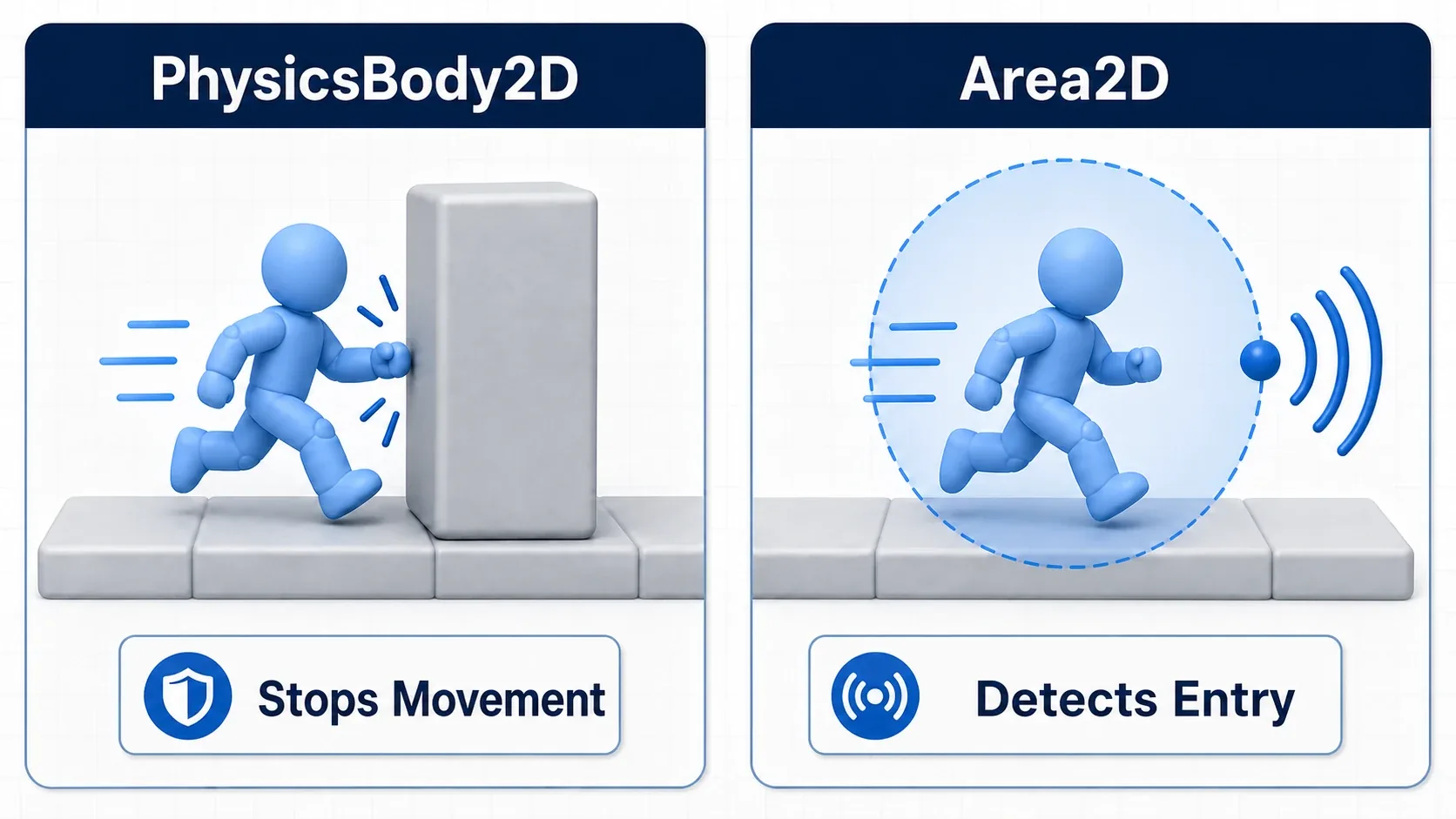

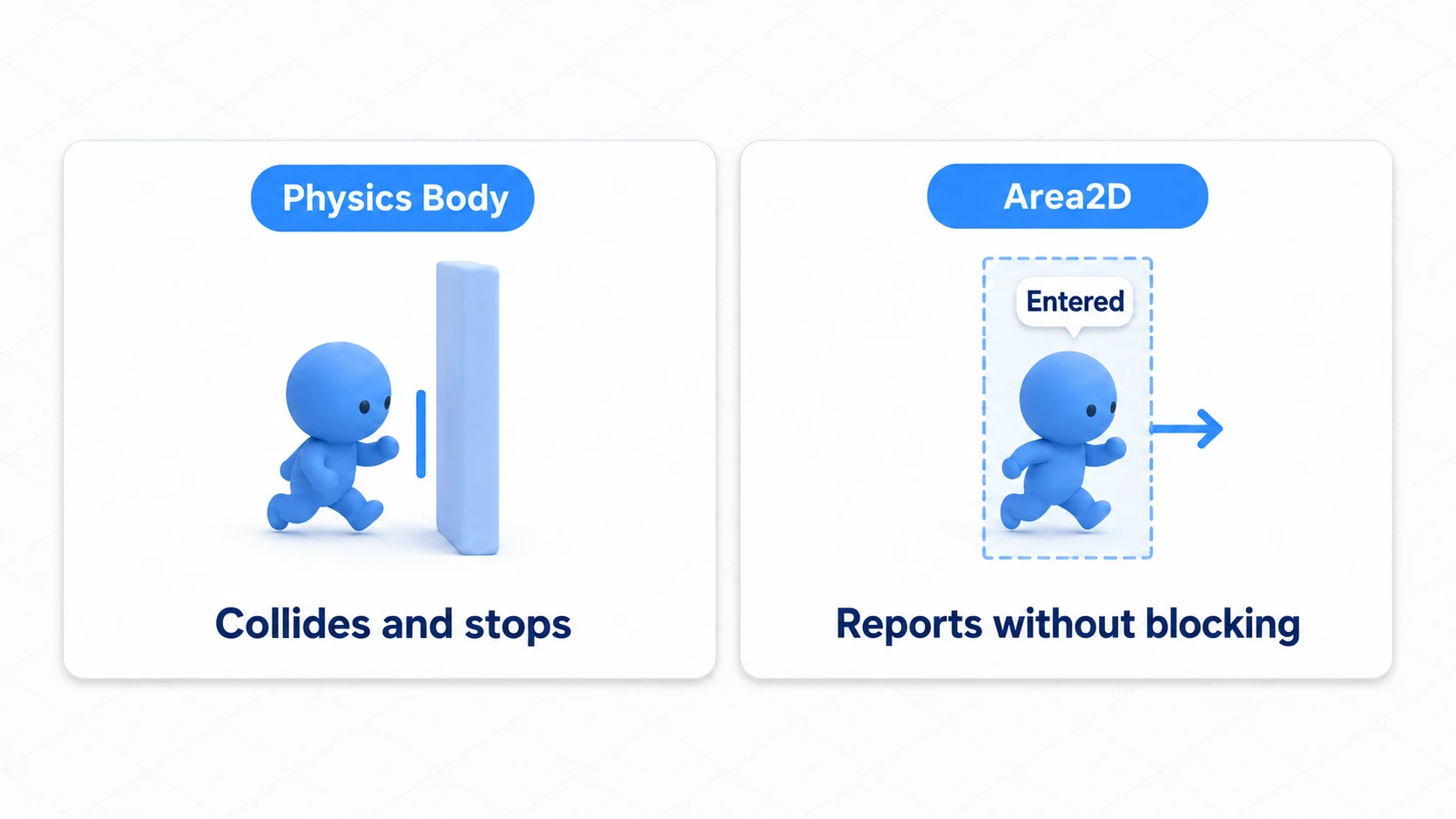

The most important point is that Area2D does not process physical collisions. While CharacterBody2D and RigidBody2D get "pushed back" by the physics engine, Area2D simply functions as a "passable sensor."

Node	Primary Purpose	Physical Behavior	Detection Function
CharacterBody2D	Controlled characters like players and NPCs	Collision response enabled	Collision detection via move_and_collide, etc.
RigidBody2D	Physics-driven objects (boxes, rocks, etc.)	Collision response enabled	Collision detection
Area2D	Range detection, triggers, sensors, effect zones	Collision response disabled	Detects object entry/exit within range

For Area2D to function, it must have a CollisionShape2D or CollisionPolygon2D as a child node. These shapes visually and physically define the "range" that Area2D detects.

---

The Key to Trigger Implementation: Understanding Signals

When Area2D detects other objects, it notifies through signals. The four most important signals for implementing triggers are:

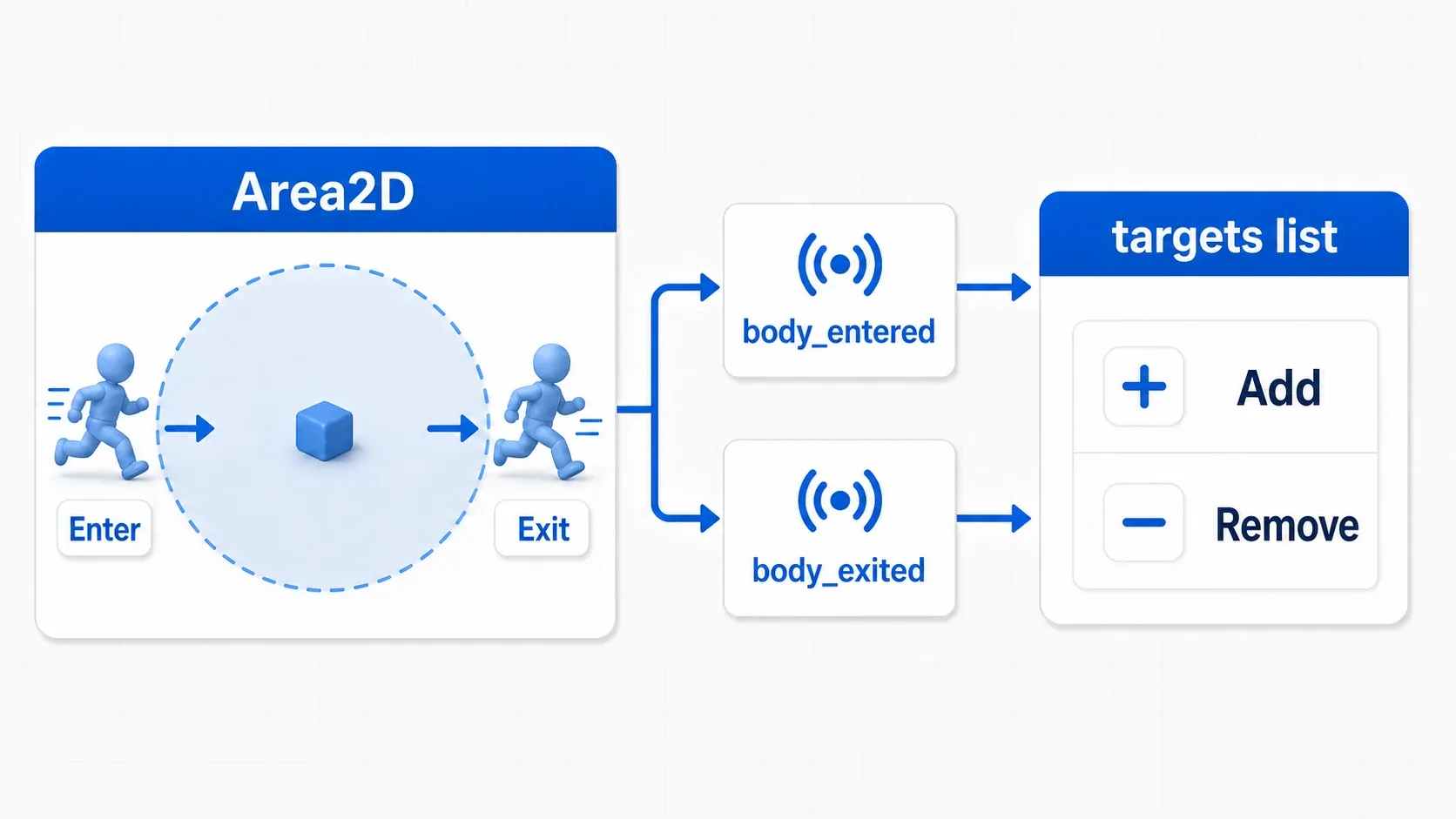

1. body_entered(body: Node2D) / body_exited(body: Node2D)

These signals fire when physics bodies like CharacterBody2D or RigidBody2D enter or exit the Area2D's range. This is most commonly used for detecting dynamic objects like players and enemies.

2. area_entered(area: Area2D) / area_exited(area: Area2D)

These signals fire when another Area2D node enters or exits this Area2D's range. Use this when you want to detect interactions between Area2Ds.

Important Properties: monitoring and monitorable

Area2D has two important properties that control detection behavior. Properly configuring these can reduce unnecessary detection processing and improve performance.

• monitoring: Whether this Area2D monitors for intrusion by other objects (default: true). Set to true when you want it to function as a trigger.
• monitorable: Whether this Area2D becomes a target for monitoring by other Area2Ds (default: true). Set to true for items that you want other areas to detect.

---

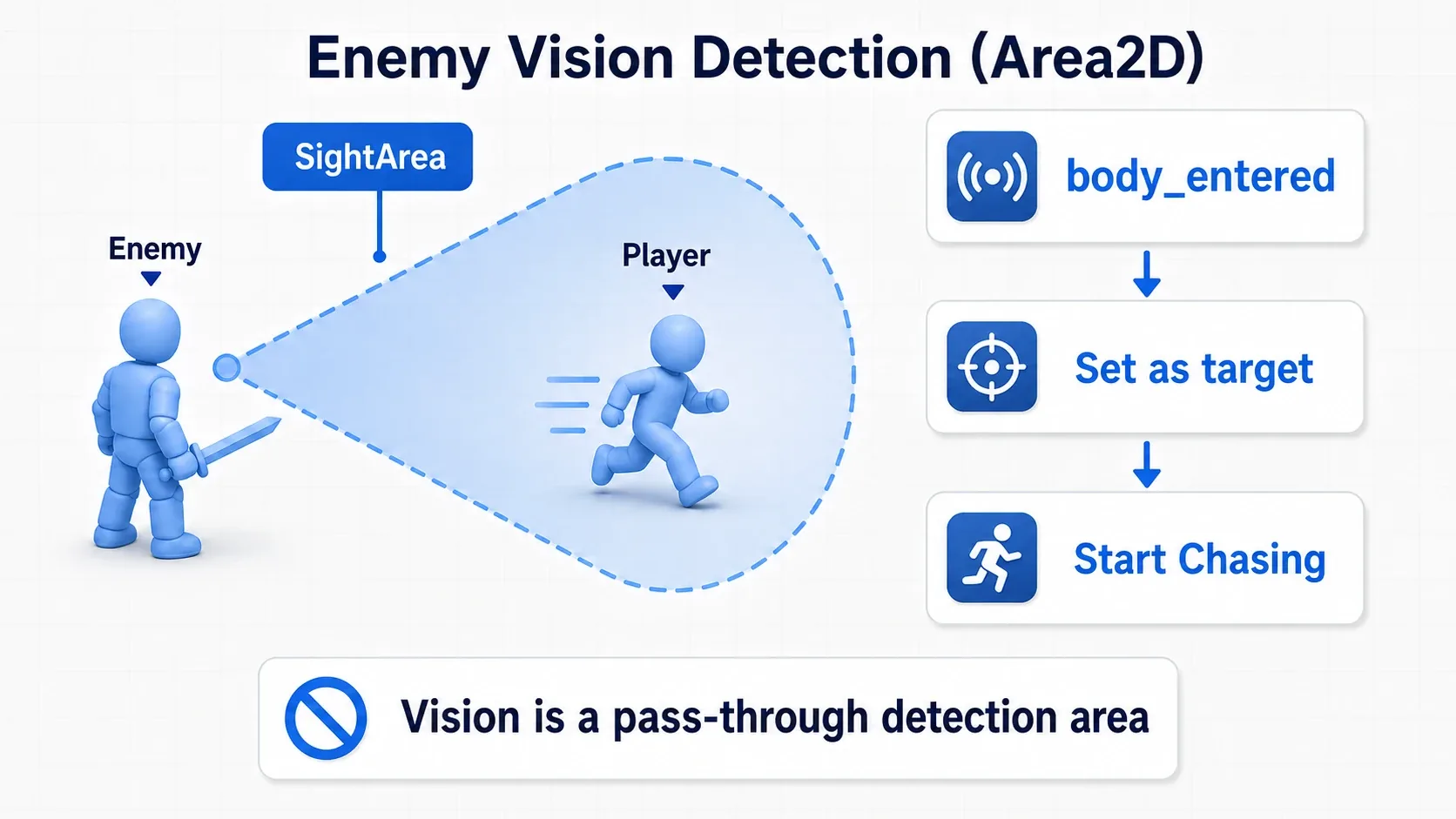

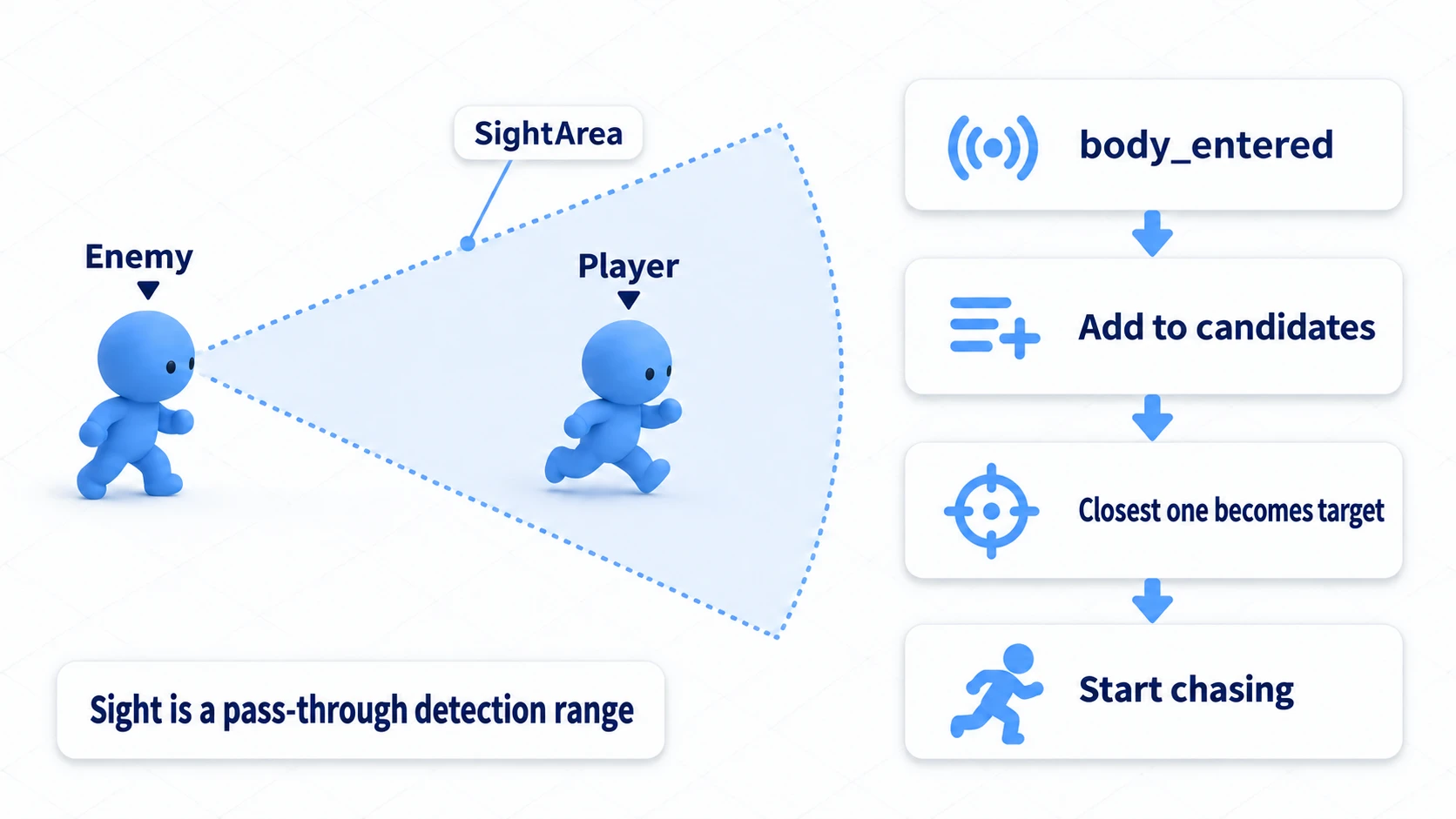

Practical Example 1: Enemy Detection Range (Chase the Nearest Target)

Beyond simple detection, let's implement more practical detection logic that selects the nearest target from multiple targets within range.

1. Add an Area2D (named SightRange) as a child of the enemy character (CharacterBody2D), with a CollisionShape2D as its child.
2. Connect the SightRange's body_entered and body_exited signals to the enemy's script.

# Enemy.gd
extends CharacterBody2D

@onready var sight_range: Area2D = $SightRange

var target_player: CharacterBody2D = null
var players_in_range: Array[CharacterBody2D] = []

func _physics_process(delta: float) -> void:
    # If players are in range, set the nearest one as target
    if not players_in_range.is_empty():
        find_closest_player()
    else:
        target_player = null

    if target_player:
        print("Chasing player %s..." % target_player.name)
        # Add chase logic here
    else:
        print("Searching...")

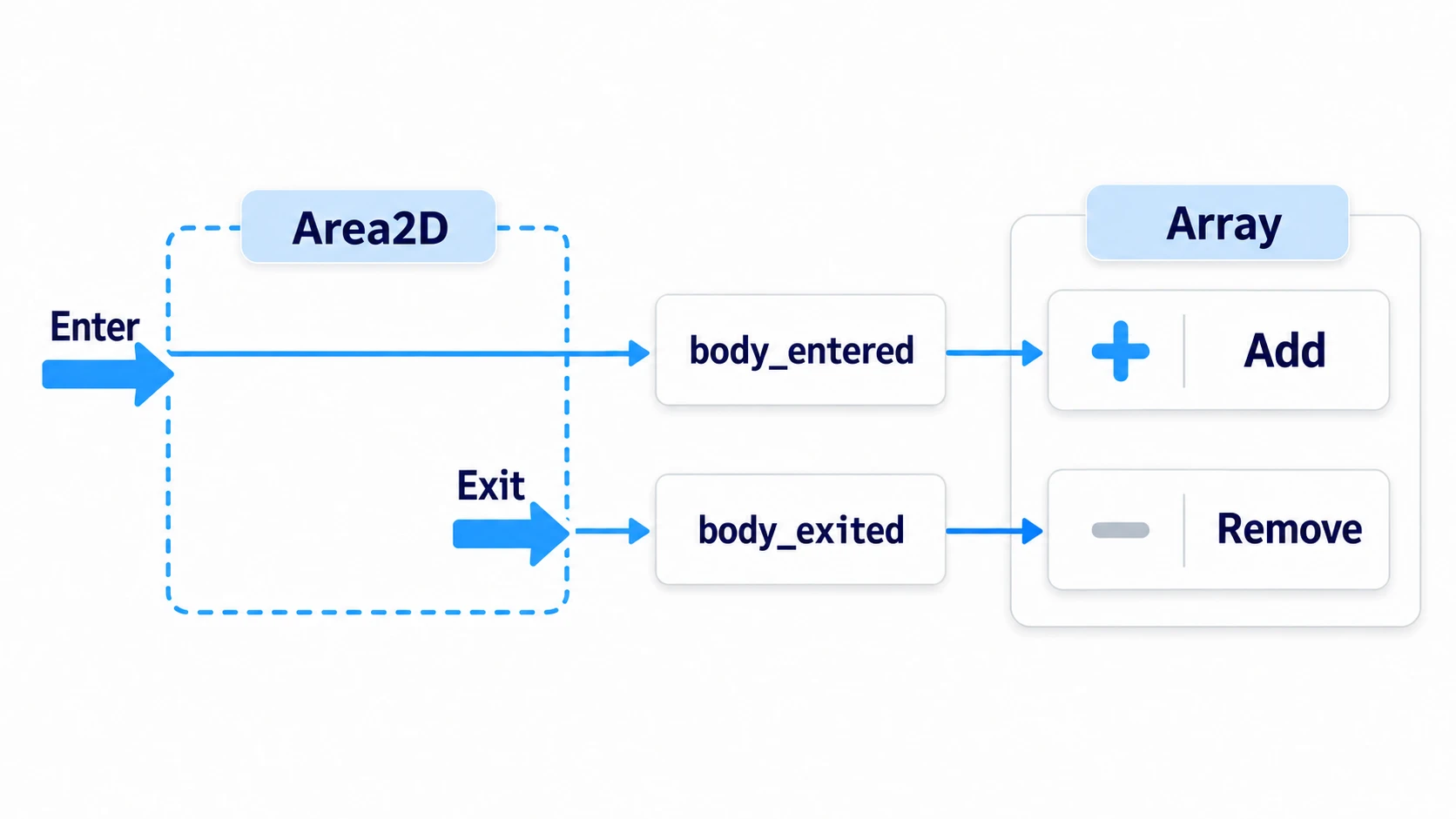

func _on_sight_range_body_entered(body: Node2D) -> void:
    if body.is_in_group("player") and body is CharacterBody2D:
        if not players_in_range.has(body):
            players_in_range.append(body)

func _on_sight_range_body_exited(body: Node2D) -> void:
    if body.is_in_group("player") and body is CharacterBody2D:
        if players_in_range.has(body):
            players_in_range.erase(body)

func find_closest_player() -> void:
    var closest_distance_sq: float = INF
    var closest_player: CharacterBody2D = null

    for player in players_in_range:
        var distance_sq: float = global_position.distance_squared_to(player.global_position)
        if distance_sq < closest_distance_sq:
            closest_distance_sq = distance_sq
            closest_player = player

    target_player = closest_player

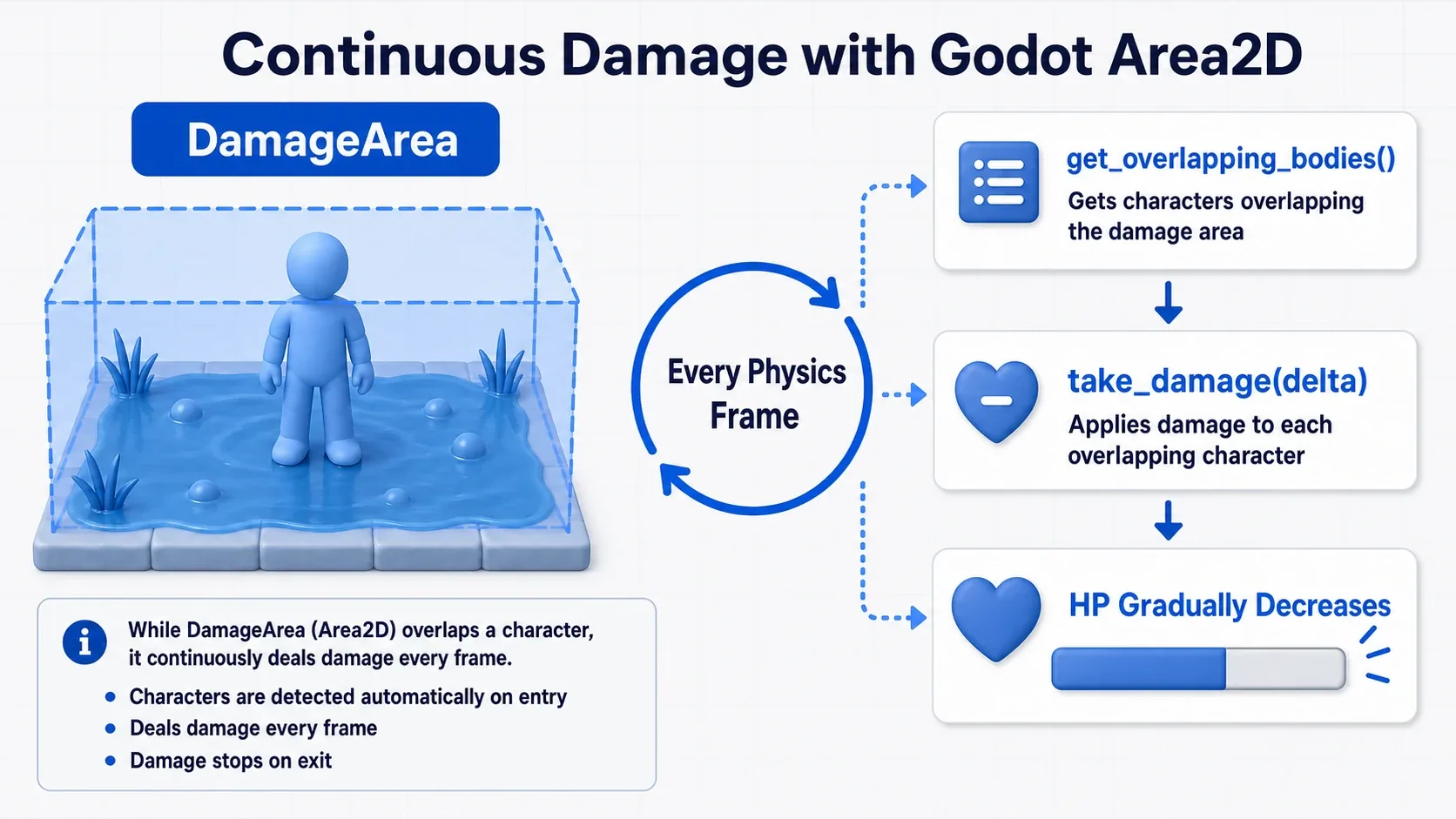

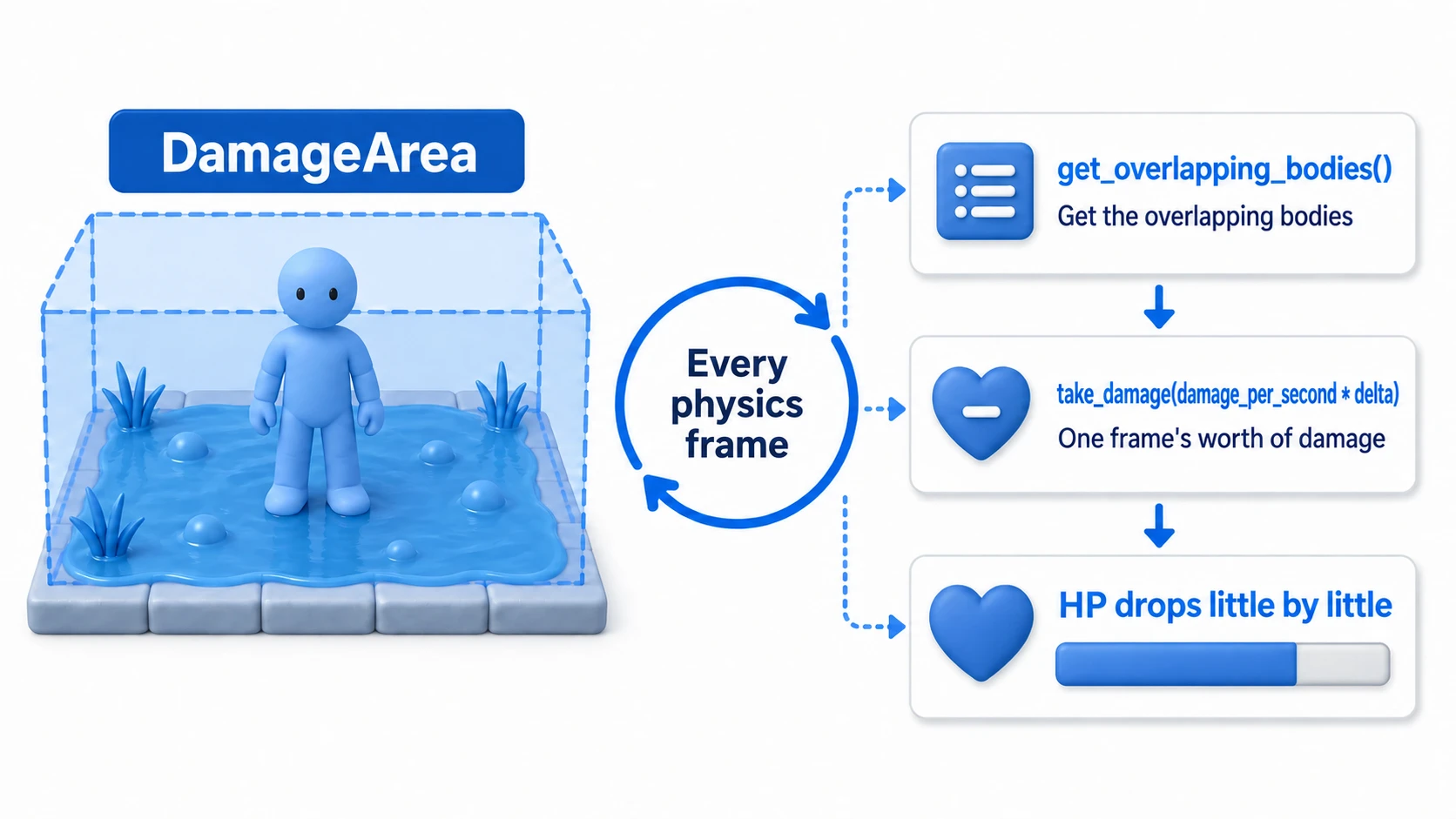

Practical Example 2: Poison Swamp with Continuous Damage

As an example of "continuously applying effects while in range"—which is difficult with signals alone—let's create a poison swamp area. Here, the get_overlapping_bodies() method takes center stage.

# PoisonSwamp.gd
extends Area2D

@export var damage_per_second: float = 10.0

func _physics_process(delta: float) -> void:
    # Get list of physics bodies currently overlapping this Area2D
    # Note: get_overlapping_bodies() returns an Array (may be typed in Godot 4.2+)
    var overlapping_bodies: Array = get_overlapping_bodies()

    for body in overlapping_bodies:
        # Check if in player group and has take_damage method
        if body.is_in_group("player") and body.has_method("take_damage"):
            var damage_to_apply = damage_per_second * delta
            body.take_damage(damage_to_apply)

By calling get_overlapping_bodies() inside _physics_process, you can get a real-time list of objects within the range.

Performance Note: get_overlapping_bodies() internally creates an array each time it's called. If many Area2Ds call this method every frame simultaneously, it may impact performance. Consider reducing call frequency (e.g., every few frames) as needed.

Performance Optimization and Advanced Filtering

As games become more complex, preventing unintended detections and maintaining performance becomes crucial. Area2D has powerful mechanisms for this.

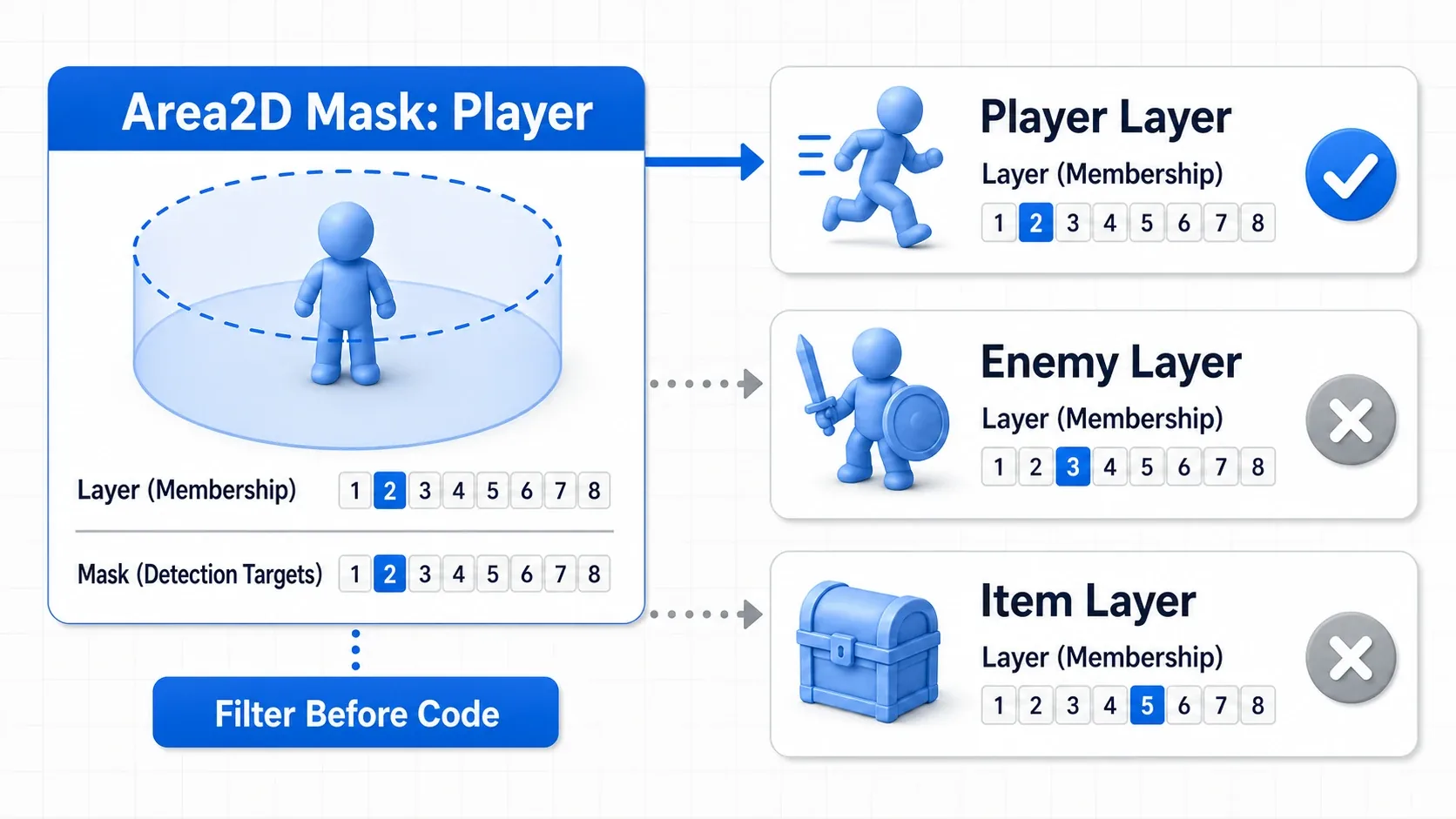

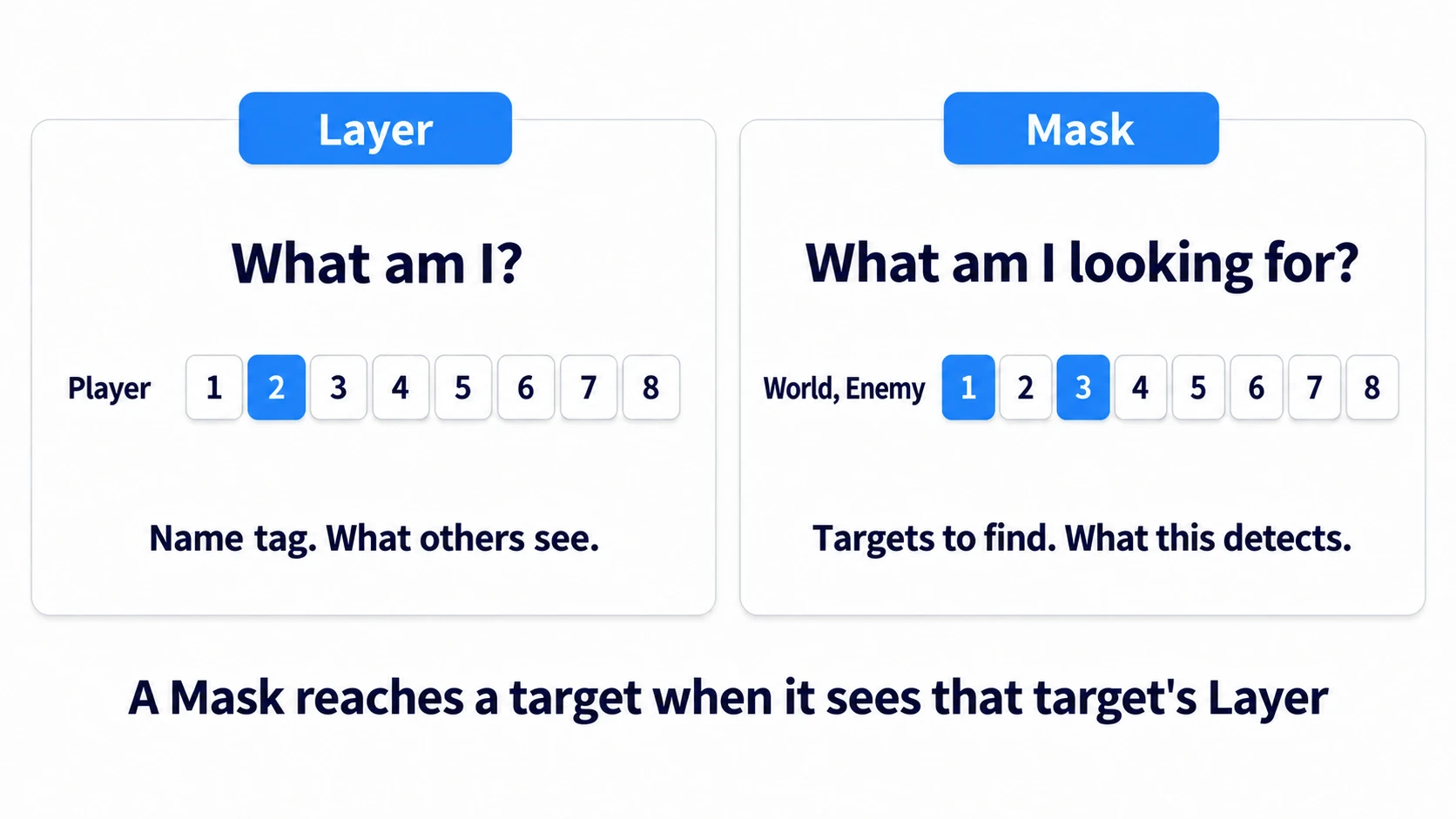

Collision Layer and Collision Mask

• Layer: Defines the "group" an object belongs to.
• Mask: Defines which "groups" an object wants to detect.

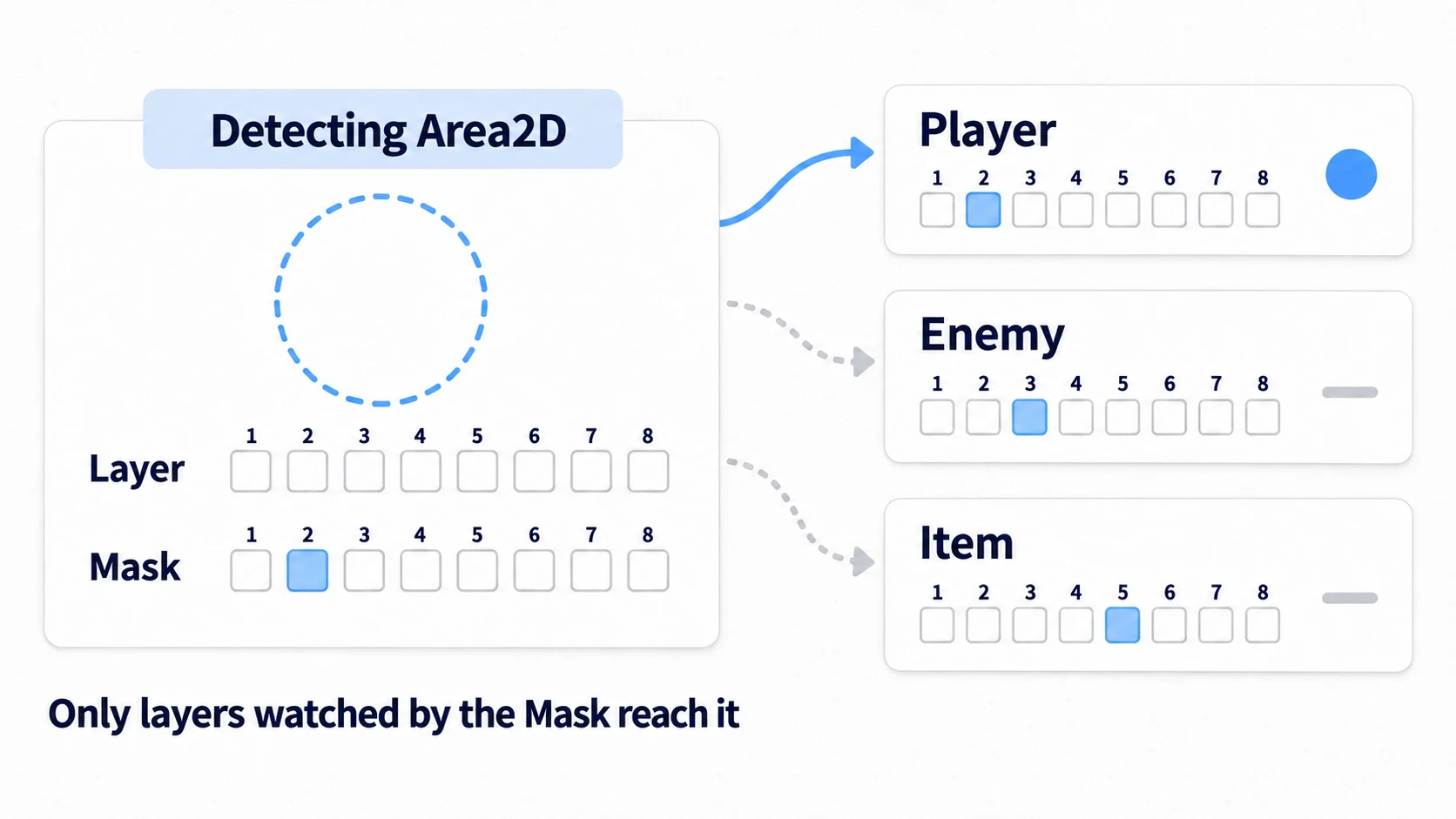

Detection only occurs when the detecting object's Mask matches the detected object's Layer. This completely cuts unnecessary detection processing at the physics engine level, making it more efficient than code-level checks like is_in_group().

---

Common Mistakes and Best Practices

Common Mistake	Best Practice
Forgetting to add CollisionShape2D as a child	Make it a habit to always add CollisionShape2D and define the range when creating an Area2D.
Assuming it collides like physics bodies (CharacterBody2D, etc.)	Understand that Area2D is a non-colliding sensor and don't use it as a physical wall.
Forgetting checks like is_in_group() inside body_entered	Always check the detected body type to avoid reacting to unintended objects. Using collision layers/masks is the best approach.
Trying to do continuous processing in body_entered	For continuous processing, use get_overlapping_bodies() inside _physics_process.
Leaving both monitoring and monitorable as true	Set monitoring to false for objects that only need to "be detected" like items, and set monitorable to false for objects that only need to "detect" like detection ranges.

Comparison with Alternative Nodes

Godot has other detection nodes. Understanding their characteristics and knowing when to use each is important.

• RayCast2D: Casts a "ray" from a point in a specified direction and detects the first object hit. Suitable for line-based detection like line of sight or ground detection.
• ShapeCast2D: Moves a specified shape in a direction and detects the first object hit along the path.
• Area2D: Detects all objects that enter a specific "range." Suitable for area-based detection like effect zones and trigger zones.

Summary

The Area2D node is the foundation for interaction and trigger implementation in Godot Engine. This mechanism that detects object presence within a range without physical collision and triggers events through signals greatly expands game design possibilities.

The examples in this article—enemy detection and item pickup using body_entered signals—are just a fraction of Area2D's applications. It can be used for debuff areas, warp zones, cutscene triggers, and much more.
