【Godot】Inventory System Design Fundamentals: Item Management with Resources and Signals

Introduction: Why Inventory Design Matters

In game development, inventory systems are essential elements that enrich the player experience. However, they're not just boxes for storing items. Item data structures, inventory logic, and UI that communicates information to players—these three distinct elements must work closely together to function properly.

Common problems developers face:

• Spaghetti Code: Item pickup, use, and discard logic scattered throughout the player script, making it hard to follow.
• Lack of Extensibility: Adding new item types like "equipment" or "non-stackable items" requires extensive code modifications.
• Tight UI Coupling: Changing inventory logic requires UI code changes, becoming a source of bugs.

This article explains an inventory design where data, logic, and UI are loosely coupled, using Godot's powerful features—Resources and signals—with concrete code examples.

---

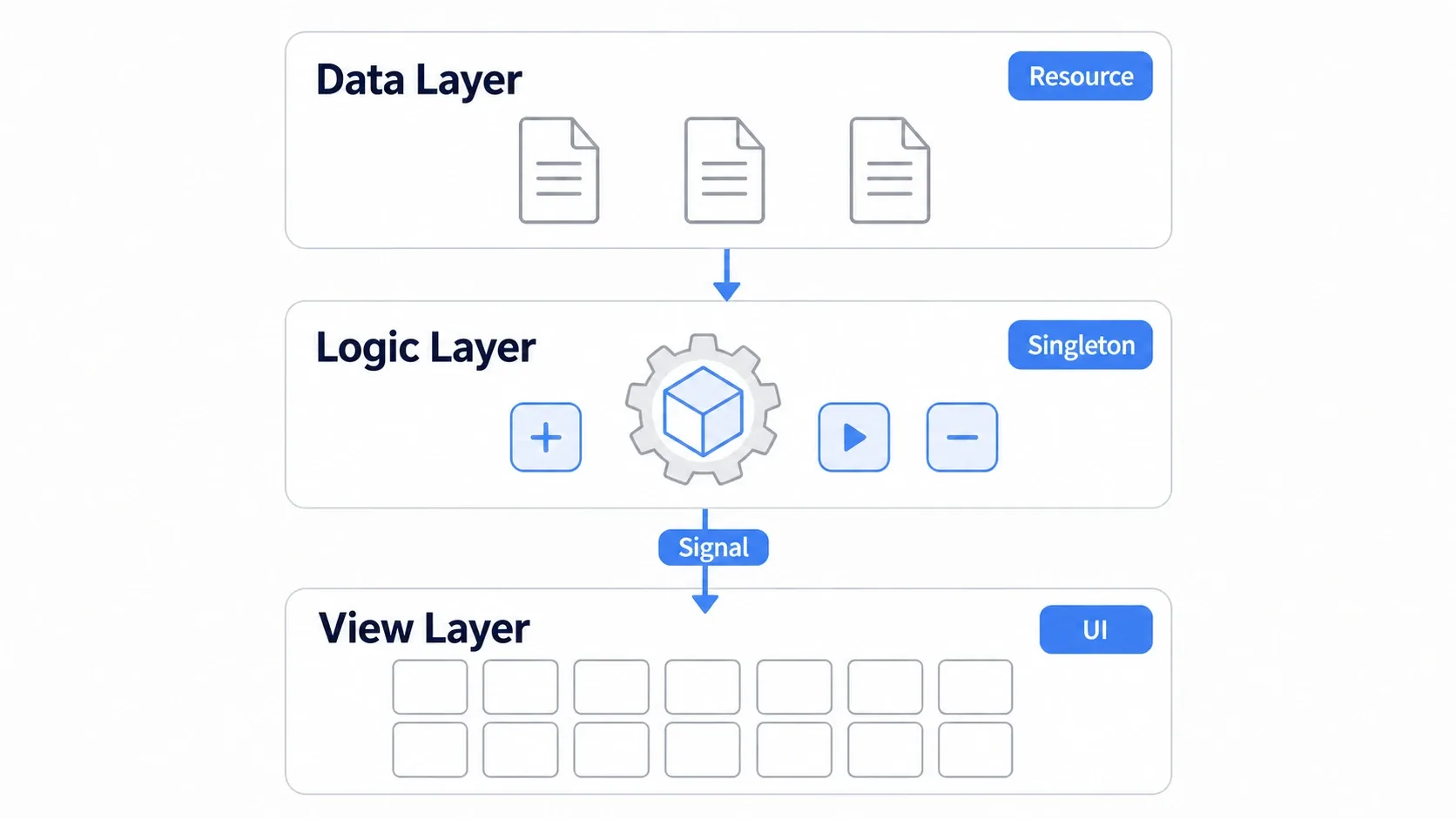

Design Philosophy: Three-Layer Separation Architecture

The key to a robust system is "separation of concerns." Build the inventory system with these three separate layers:

Layer	Role	Godot Implementation	Characteristics
Data Layer	Static information defining "what an item is"	Resource (.tres files)	Editable by game designers. High reusability.
Logic Layer	Dynamic state managing item addition, removal, usage	Singleton Node (Autoload)	Central hub with single state across the entire game.
View (UI) Layer	Visualizes inventory state to players	Control node group	Only receives signals from logic layer and updates display.

This architecture allows each layer to focus on its own role without knowing the details of other layers.

---

Section 1: [Data Layer] Item Definition with Resources

First, define ItemResource as the blueprint for items.

# res://items/ItemResource.gd
class_name ItemResource
extends Resource

# Enum defining item types
enum ItemType { CONSUMABLE, EQUIPMENT, KEY_ITEM, MATERIAL }

@export_group("Basic Info")
@export var item_name: String = "New Item"
@export_multiline var description: String = ""
@export var texture: Texture2D # Icon as direct Texture2D reference

@export_group("Inventory Settings")
@export var type: ItemType = ItemType.CONSUMABLE
@export var stackable: bool = true
@export var max_stack_size: int = 99

@export_group("Gameplay")
@export var can_be_used: bool = true
@export var heal_amount: int = 10

# Having a unique ID is recommended for comparison
# resource_path is empty if not saved as file, so provide fallback
func get_id() -> String:
    return resource_path if not resource_path.is_empty() else str(get_instance_id())

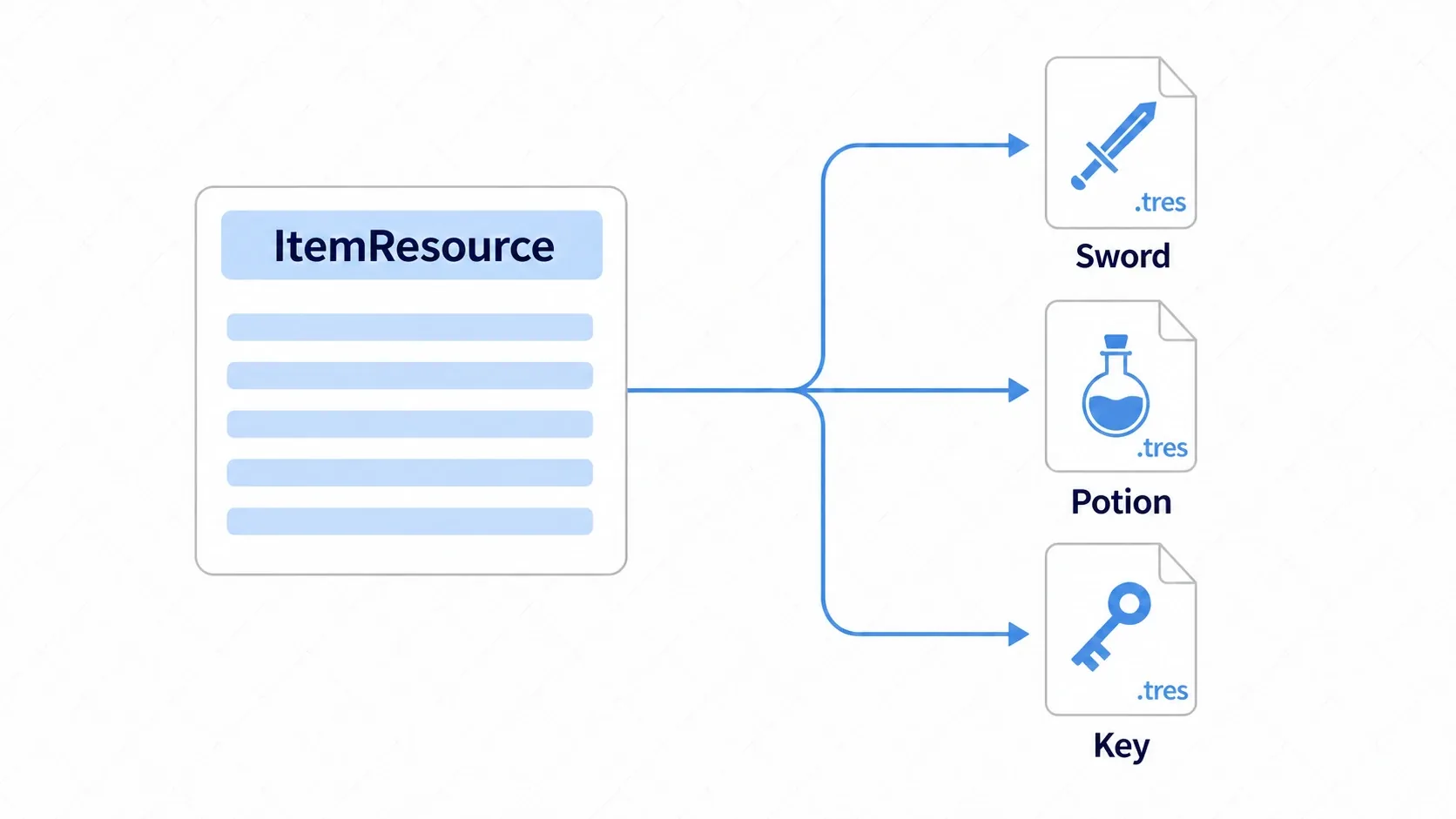

Inherit from this ItemResource and create specific items like "sword" or "potion" as .tres files in the Godot editor. Since the path itself becomes a unique ID, you don't need to manage string IDs separately.

---

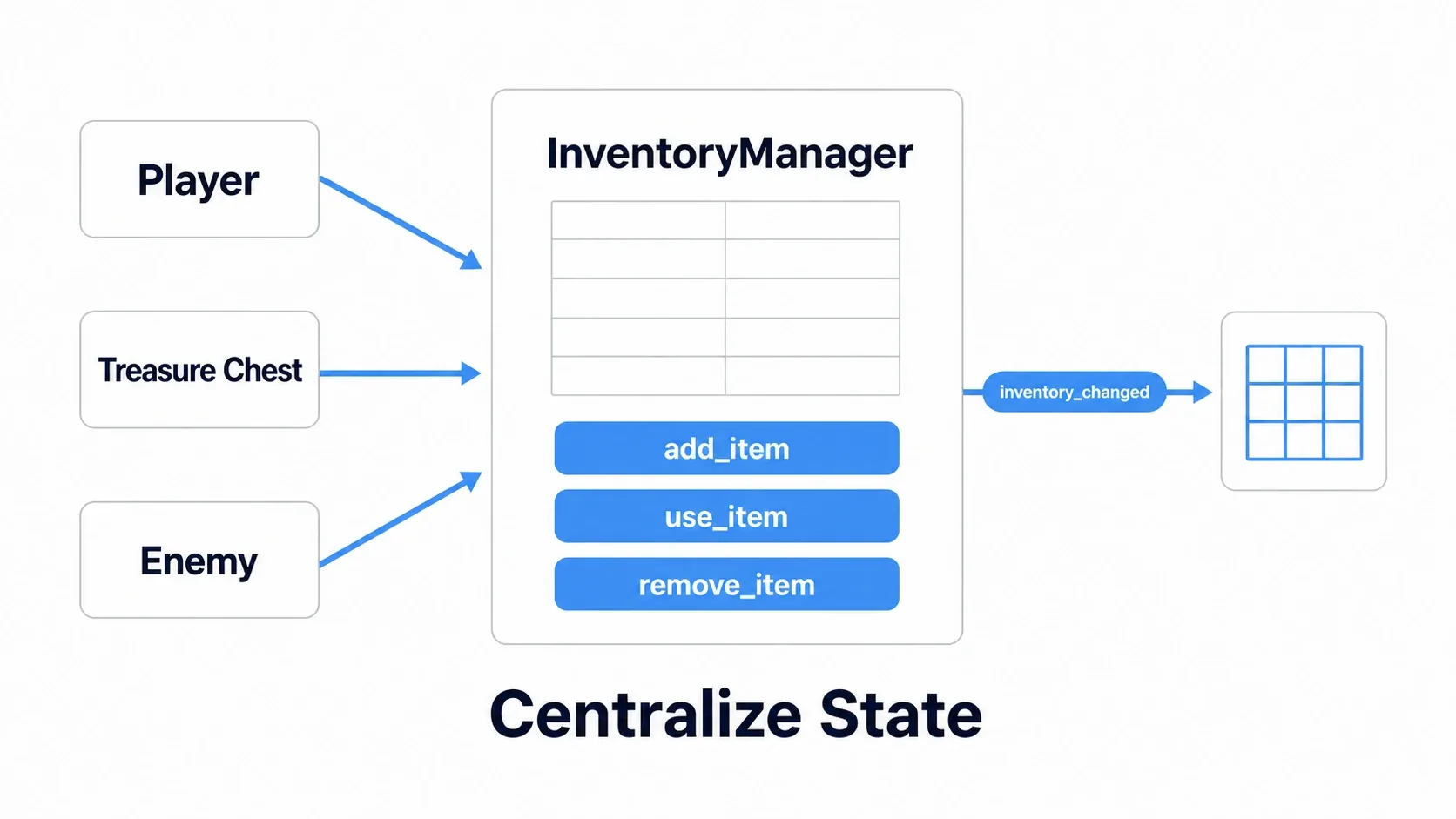

Section 2: [Logic Layer] State Management with Singleton

Next, create the InventoryManager singleton to manage inventory state. Set this as Autoload to make it accessible from anywhere in the game.

# res://managers/InventoryManager.gd
extends Node

# Signal emitted when inventory changes
signal inventory_changed
# Signal emitted when item is used (for sound effects, etc.)
signal item_used(item_resource: ItemResource)

# Key: Item ID, Value: { "resource": ItemResource, "count": int }
var _items: Dictionary = {}
const MAX_SLOTS: int = 30

# Add item
func add_item(item_resource: ItemResource, count: int = 1) -> bool:
    if not item_resource:
        printerr("Attempted to add null item")
        return false

    var item_id = item_resource.get_id()

    # Handle stackable items
    # Extension: Add logic to split excess into new slots when exceeding
    # max_stack_size, or return false to reject the addition
    if item_resource.stackable and _items.has(item_id):
        _items[item_id].count += count
        inventory_changed.emit()
        return true

    # Add item to new slot
    if _items.size() < MAX_SLOTS:
        _items[item_id] = { "resource": item_resource, "count": count }
        inventory_changed.emit()
        return true

    print("Inventory is full")
    return false

# Use item
func use_item(item_id: String):
    if not _items.has(item_id):
        return

    var item_data = _items[item_id]
    var item_resource: ItemResource = item_data.resource

    if not item_resource.can_be_used:
        return

    # Implement item effects here
    print("Used %s. HP recovered by %d!" % [item_resource.item_name, item_resource.heal_amount])
    item_used.emit(item_resource)

    # Decrease count if consumable
    if item_resource.type == ItemResource.ItemType.CONSUMABLE:
        remove_item(item_id, 1)

# Remove/decrease item
func remove_item(item_id: String, count: int = 1):
    if not _items.has(item_id):
        return

    _items[item_id].count -= count
    if _items[item_id].count <= 0:
        _items.erase(item_id)

    inventory_changed.emit()

func get_inventory_data() -> Dictionary:
    return _items.duplicate(true)

---

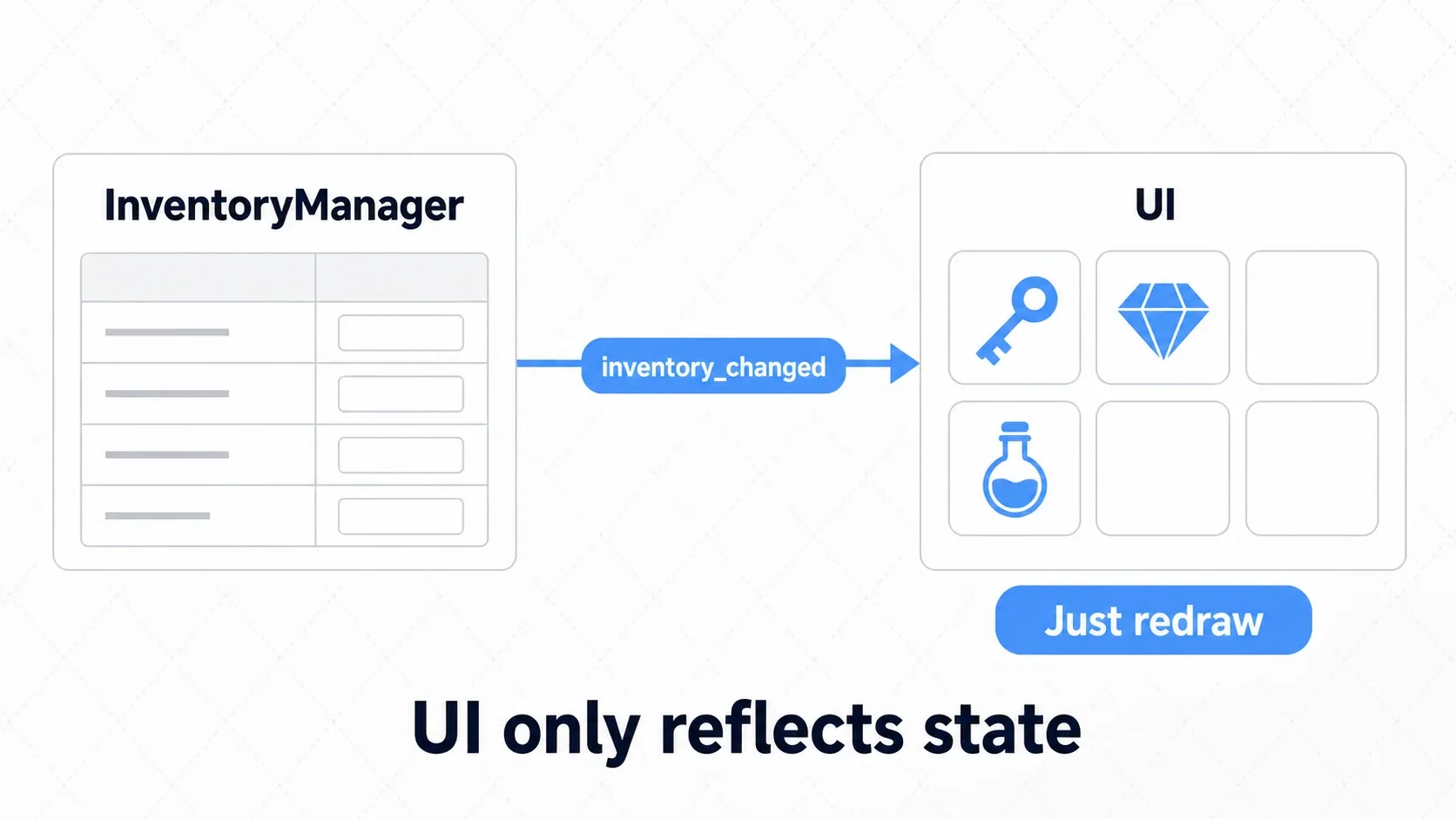

Section 3: [View Layer] Automatic UI Updates via Signals

The UI should simply display the logic layer's state. Connect to InventoryManager's inventory_changed signal to update the UI.

# res://ui/InventoryUI.gd
extends GridContainer

const SLOT_SCENE = preload("res://ui/InventorySlot.tscn")

func _ready():
    # Connect directly to singleton
    InventoryManager.inventory_changed.connect(_on_inventory_changed)
    # Initial display
    _redraw_inventory()

func _on_inventory_changed():
    _redraw_inventory()

func _redraw_inventory():
    # Clear existing slots
    for child in get_children():
        child.queue_free()

    var inventory_data = InventoryManager.get_inventory_data()

    for item_id in inventory_data:
        var item_data = inventory_data[item_id]
        var slot = SLOT_SCENE.instantiate()
        slot.update_display(item_data.resource, item_data.count)
        # Connect lambda for item usage
        slot.gui_input.connect(func(event):
            if event is InputEventMouseButton and event.button_index == MOUSE_BUTTON_LEFT and event.is_pressed():
                InventoryManager.use_item(item_id)
        )
        add_child(slot)

    # Draw empty slots
    var empty_slots_count = InventoryManager.MAX_SLOTS - inventory_data.size()
    for i in range(empty_slots_count):
        var slot = SLOT_SCENE.instantiate()
        slot.set_empty()
        add_child(slot)

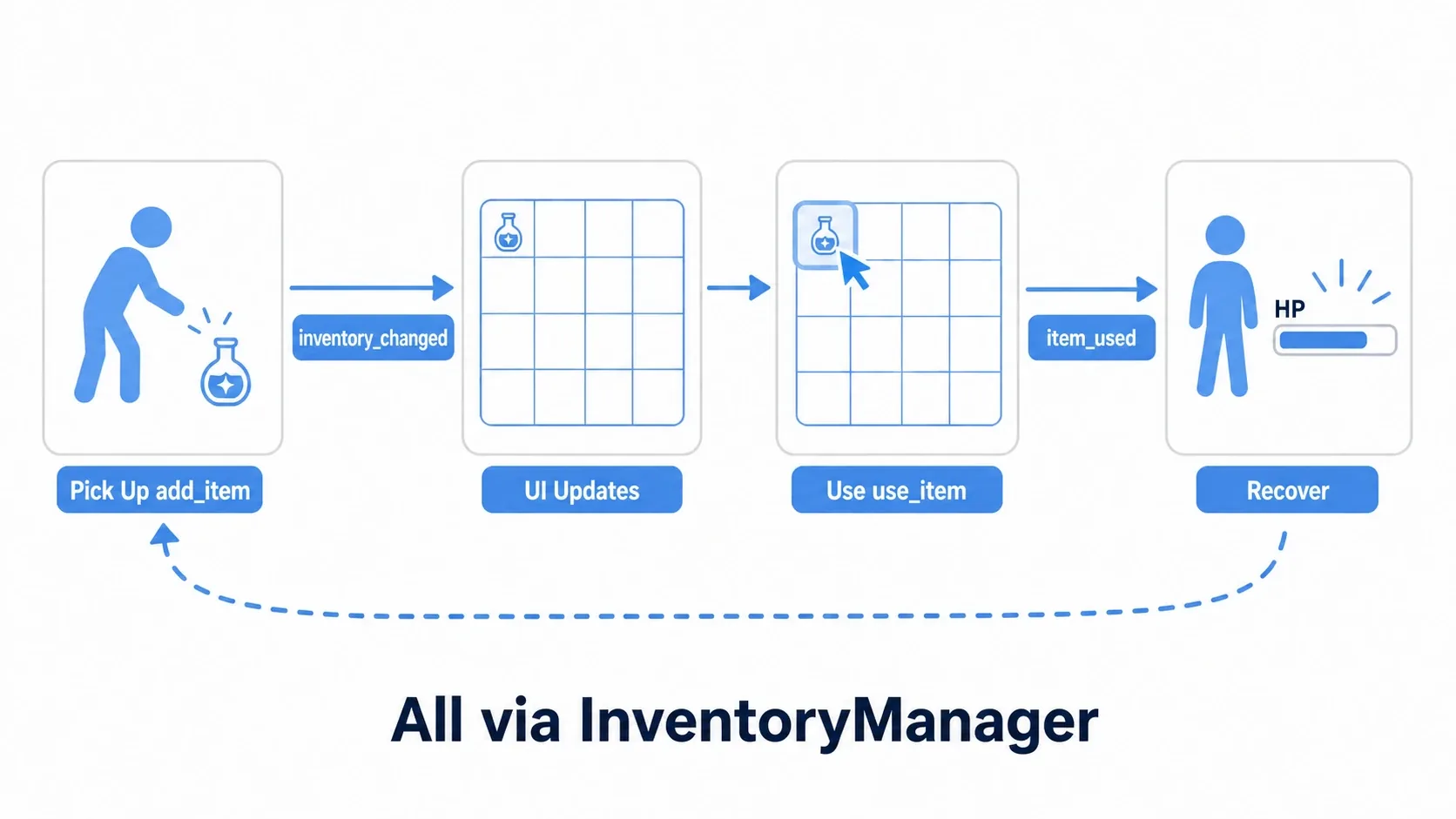

The UI simply requests item usage as InventoryManager.use_item(item_id), completely delegating the actual processing to the logic layer.

---

Common Mistakes and Best Practices

Here's a summary of common pitfalls in inventory design and best practices to avoid them.

Common Mistake	Best Practice
Tight coupling between logic and UI Direct references like get_node("../Player").add_item().	Signals and singletons UI receives signals from logic; logic is callable from anywhere via singleton.
Hardcoding data structures Writing item data directly in scripts.	Utilize Resources Separate item definitions into .tres files for data-driven design.
Inefficient UI updates Rebuilding UI every frame.	Event-driven UI updates Only update UI when inventory_changed signal fires. Consider object pooling for large scales.
Scattered state management Player, containers, and UI each holding separate inventory information.	Single Source of Truth InventoryManager singleton holds the only inventory state; others just reference it.

---

Performance and Alternative Patterns

• Performance: The Dictionary approach used here provides very fast key-based access (average O(1)), so even with thousands of items, the logic layer rarely becomes a bottleneck. Performance issues tend to occur in the UI layer when creating and destroying large numbers of nodes. UI optimization is crucial.

• Alternative Pattern (Node-based): Another approach instantiates each item as a Node and manages the inventory as a Node tree. This has the advantage of treating world-dropped items and inventory items as the same object, but state persistence (save & load) tends to become complex. The Resource-based approach in this article excels at data and state management.

Summary

This article explained inventory system design techniques for future extensibility and maintenance. Data layer separation with Resources, logic layer centralization with singletons, and loose coupling with the view layer via signals. By following these three principles, you can maintain stable core logic even as the game scales, item types increase, or UI designs change.

Element	Godot Feature	Role
Item Data	Resource	Define and store static item information
Inventory Logic	Singleton (Node)	Manage operations like adding/removing items
UI Integration	Signal	Notify UI of logic changes
