【Godot】Advanced AnimationPlayer - Mastering Tracks, Keyframes, and Callbacks

Overview: Why "Advanced" AnimationPlayer Usage Matters

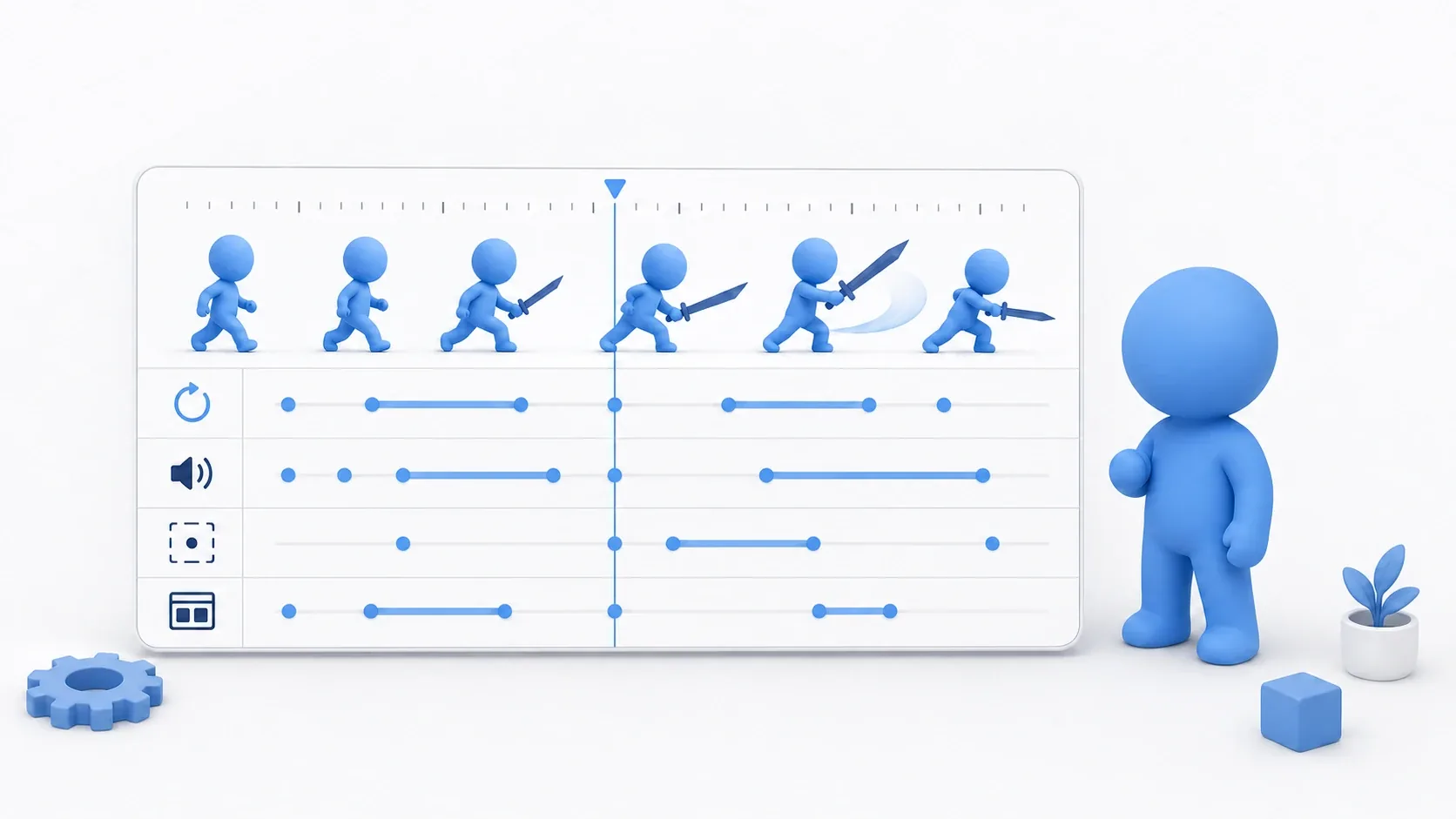

The AnimationPlayer node in Godot Engine is a powerful tool for controlling any element in your game along a timeline—far beyond simple character movement or sprite animation. AnimationPlayer's true value emerges when you understand and master Method Call Tracks, signals, and integration with other animation nodes (Tween and AnimationTree), revealing its potential as a "powerful sequencer for in-game events."

---

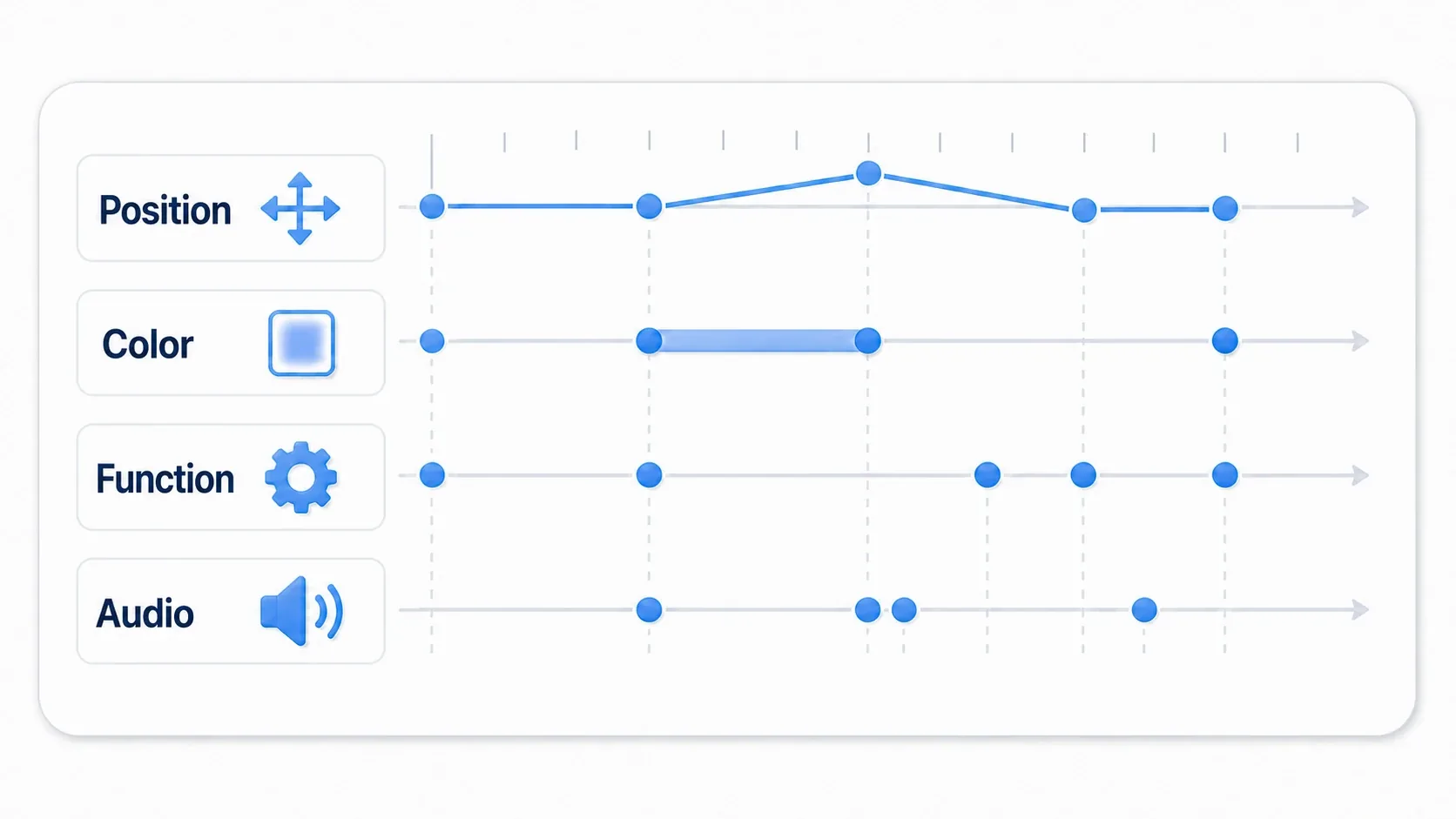

1. Understanding AnimationPlayer's Core "Track" System

AnimationPlayer constructs animations by combining multiple "tracks."

Track Type	Role and Primary Use
Property Track	Changes any node property (position, rotation, modulate, scale, etc.) over time. The most fundamental track type.

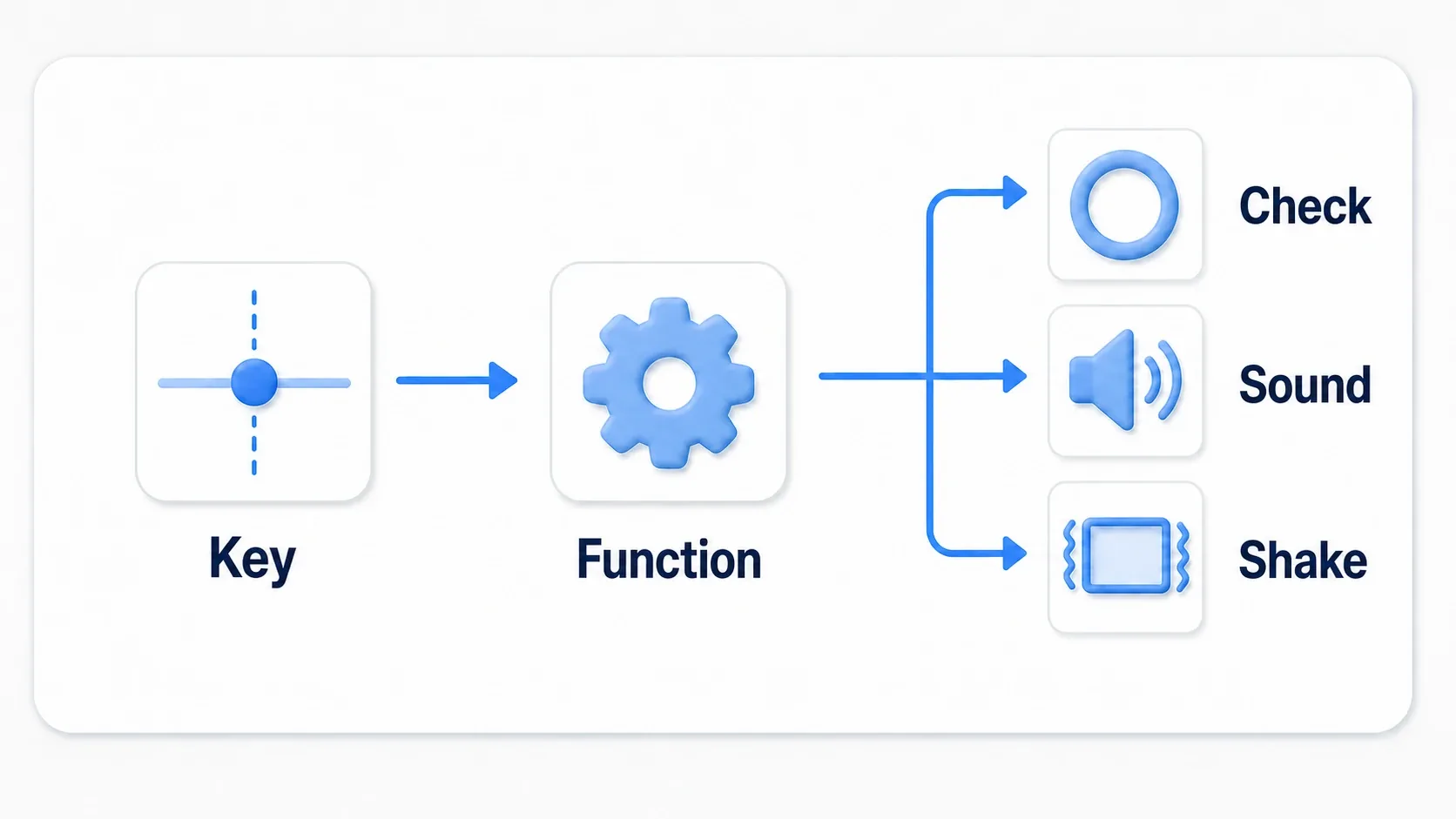

Method Call Track	The most important feature in this article. Calls any function on any node at specific animation timings. Essential for syncing logic like attack hitbox on/off, sound effects, UI updates.
Audio Track	Controls AudioStreamPlayer nodes to play/stop audio clips at specified timings.
Animation Playback Track	A track for playing animations from other AnimationPlayer nodes.
Bezier Curve Track	Controls property values with Bezier curves. Suitable for creating more complex, smooth custom curves.

2. Advanced Keyframe Operations and Interpolation

Keyframes are points that define "target values" for properties at specific times on a track.

Choosing Interpolation Modes

Interpolation Mode	Characteristics	Primary Use
Nearest	Keyframe values are held until the next keyframe. Changes are instant.	Sprite frame switching, boolean toggling
Linear	Values change linearly at constant speed between keyframes.	Constant-speed movement, fade in/out
Cubic	Values change smoothly between keyframes. Speed gradually varies.	Camera movement, smooth UI animations

---

3. Practical Code Examples

Scenario 1: Precise Attack Hitbox Synchronization

The most common use case. Enable the attack hitbox only at the moment the blade hits the enemy during a sword swing animation.

Scene Structure:

- CharacterBody2D
  - Sprite2D
  - AnimationPlayer
  - Hitbox (Area2D)
    - CollisionShape2D

Script (character.gd):

extends CharacterBody2D

@onready var animation_player = $AnimationPlayer
@onready var hitbox_collision = $Hitbox/CollisionShape2D

func _ready():
    hitbox_collision.disabled = true

func _unhandled_input(event):
    if event.is_action_pressed('attack'):
        animation_player.play('attack')

# Functions called from AnimationPlayer's Method Call Track
func enable_hitbox():
    hitbox_collision.disabled = false

func disable_hitbox():
    hitbox_collision.disabled = true

func _on_hitbox_body_entered(body):
    if body.has_method('take_damage'):
        body.take_damage(10)

AnimationPlayer Setup:

1. Create an attack animation.
2. Add a Method Call Track.
3. Insert a key calling the enable_hitbox function at the keyframe where the sword swing begins.
4. Insert a key calling the disable_hitbox function at the keyframe where the sword swing ends.

Scenario 2: Syncing UI Animation with Sound

Implement an effect where a button scales up/down and plays a sound effect when clicked.

extends Button

@onready var animation_player = $AnimationPlayer

func _ready():
    pressed.connect(_on_pressed)

func _on_pressed():
    animation_player.play('pressed_effect')

func play_sound():
    $ClickSound.play()

---

4. Common Mistakes and Best Practices

Common Mistake	Best Practice
Writing complex if/else branches in _process or _physics_process based on animation state.	Actively use Method Call Tracks to call logic (functions) directly from the animation.
Stuffing lots of logic into the animation_finished signal, making code complex.	Use animation_finished mainly for transitioning to the next state; handle mid-animation events with Method Call Tracks.
Using AnimationPlayer for simple one-time animations like fades that change dynamically.	Tween often results in cleaner code for such cases.

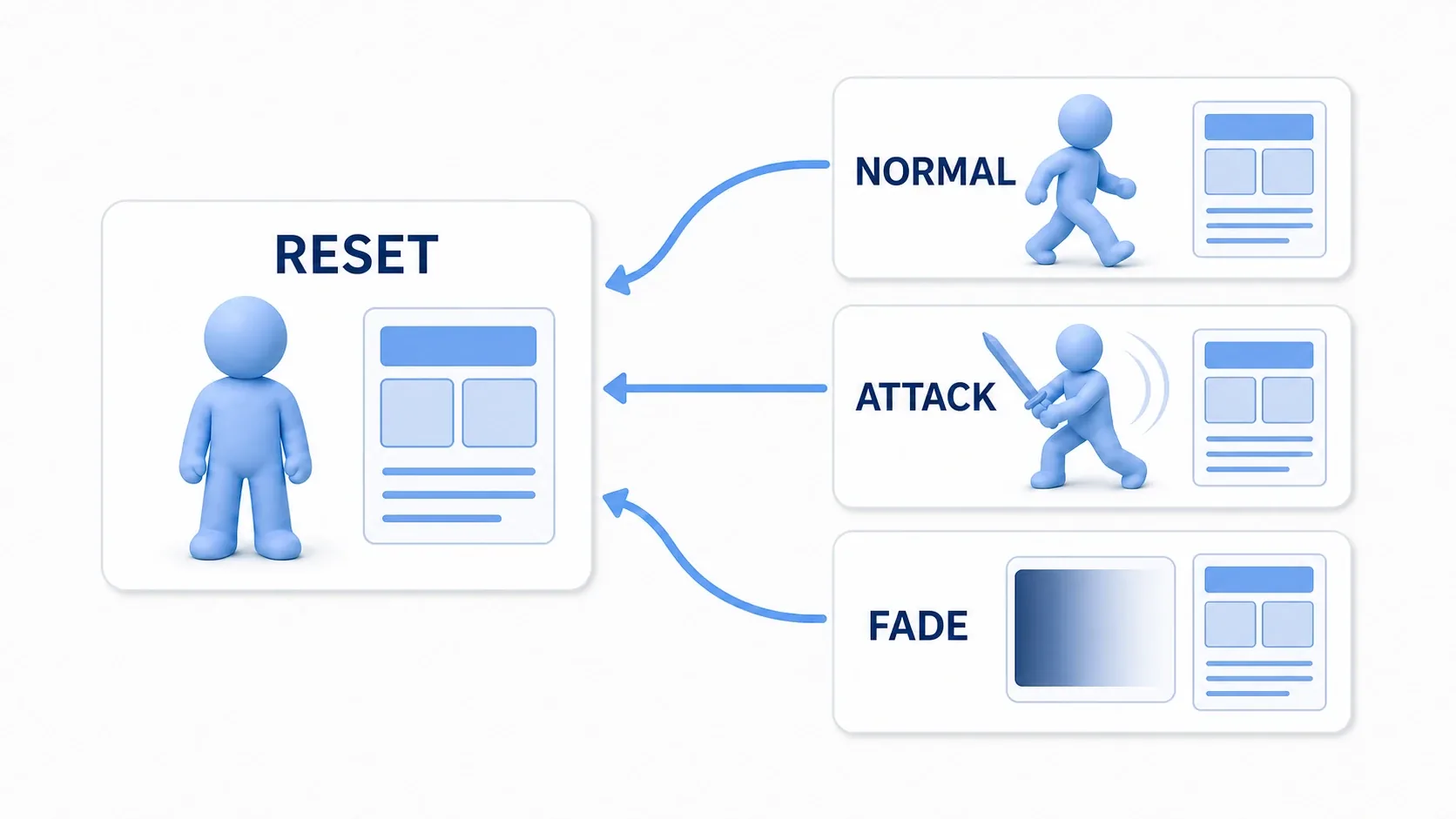

Having undefined states after animations end, causing visual glitches.	Always create a RESET animation.
Trying to manage all character states with a single AnimationPlayer.	Use AnimationTree for complex transitions and blending between multiple animations.

---

5. Performance and Comparison with Alternative Patterns

Performance Considerations

• Update Mode Selection: Continuous interpolates values between keyframes, while Discrete only updates values at keyframe points. For sprite frame switching or boolean changes where interpolation is unnecessary, using Discrete prevents unintended intermediate values.
• Calling Heavy Processes: If functions called from Method Call Tracks contain heavy processing, it can cause game-wide stuttering. Consider using call_deferred to defer processing to the next idle frame.

Note: Using separate threads in Godot (the Thread class) has restrictions on scene tree access, so consult the official documentation when separating complex processes.

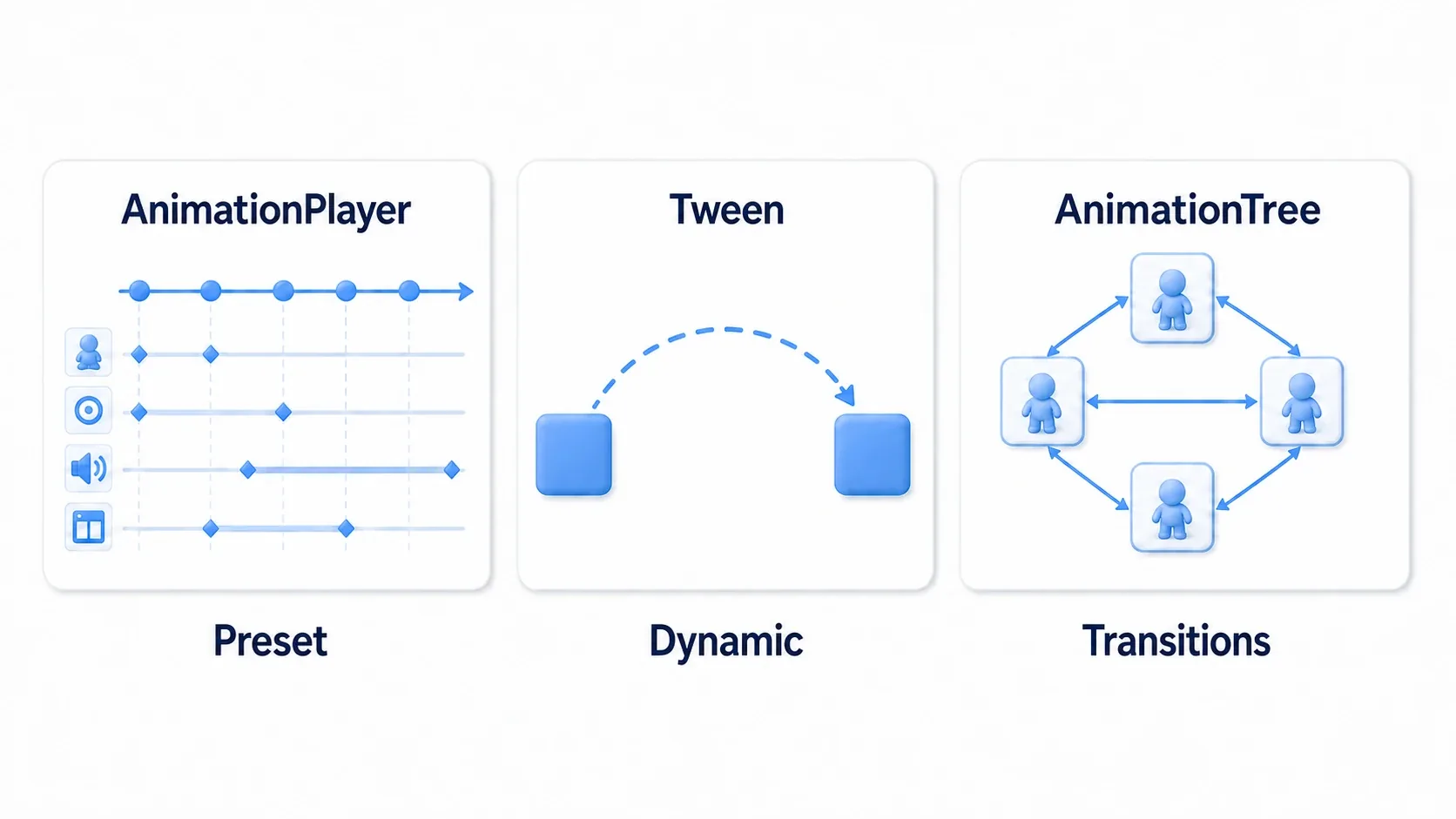

Alternative Patterns: AnimationPlayer vs Tween vs AnimationTree

Feature	AnimationPlayer	Tween	AnimationTree
Primary Purpose	Playing pre-defined complex sequences	Code-based dynamic property interpolation	State management and blending between multiple animations
Best For	Cutscenes, character attacks, standard UI effects	One-time UI effects, movement with dynamically changing targets	Character movement state transitions
Setup Method	GUI editor (timeline)	GDScript code	GUI editor (node-based state machine)
Strengths	Visual, intuitive editing; easy multi-track synchronization	Code-complete, highly flexible	Visually manage complex state transitions
Weaknesses	Difficult to handle dynamic value changes	Not suited for complex sequence synchronization	Setup can become complex

Summary

This article explained techniques for utilizing Godot Engine's AnimationPlayer as a powerful sequencer for game logic and events, beyond just animation playback.

1. Method Call Tracks are key: Calling functions directly from animations prevents _process bloat and keeps logic clean.
2. Choose the right tool: AnimationPlayer, Tween, and AnimationTree each excel in different areas. Select the optimal tool based on your scenario.
3. Practice best practices: Preparing RESET animations and integrating with AnimationTree make projects more robust and maintainable.
