【Godot】Complex Animation Management with AnimationTree and State Machines

Introduction: Why AnimationTree and State Machines Are Necessary

In game development, character animation is an extremely important element for enriching the player's experience. However, when characters have multiple states like "idle," "walk," "run," "jump," and "attack," managing the transitions between those animations in code becomes extremely complex and tedious.

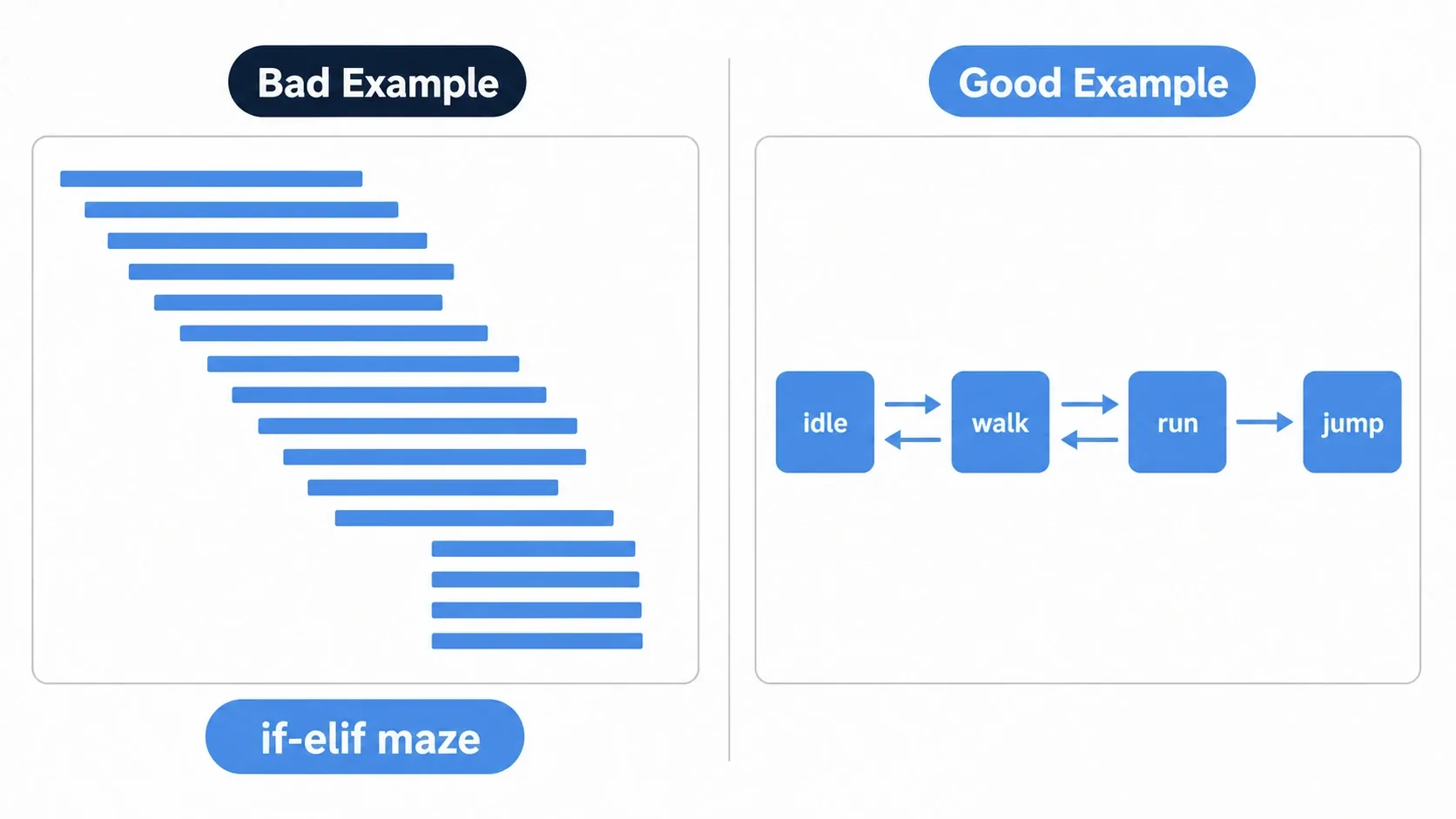

The result is the infamous giant if-elif-else nested structures appearing inside _physics_process.

Enter Godot Engine's powerful features: the AnimationTree node and its core component, the state machine (AnimationNodeStateMachine). Using these, you can separate animation playback and transition logic into a visual graph, dramatically reducing the burden on your code.

---

Understanding Key Concepts

1. AnimationTree Node

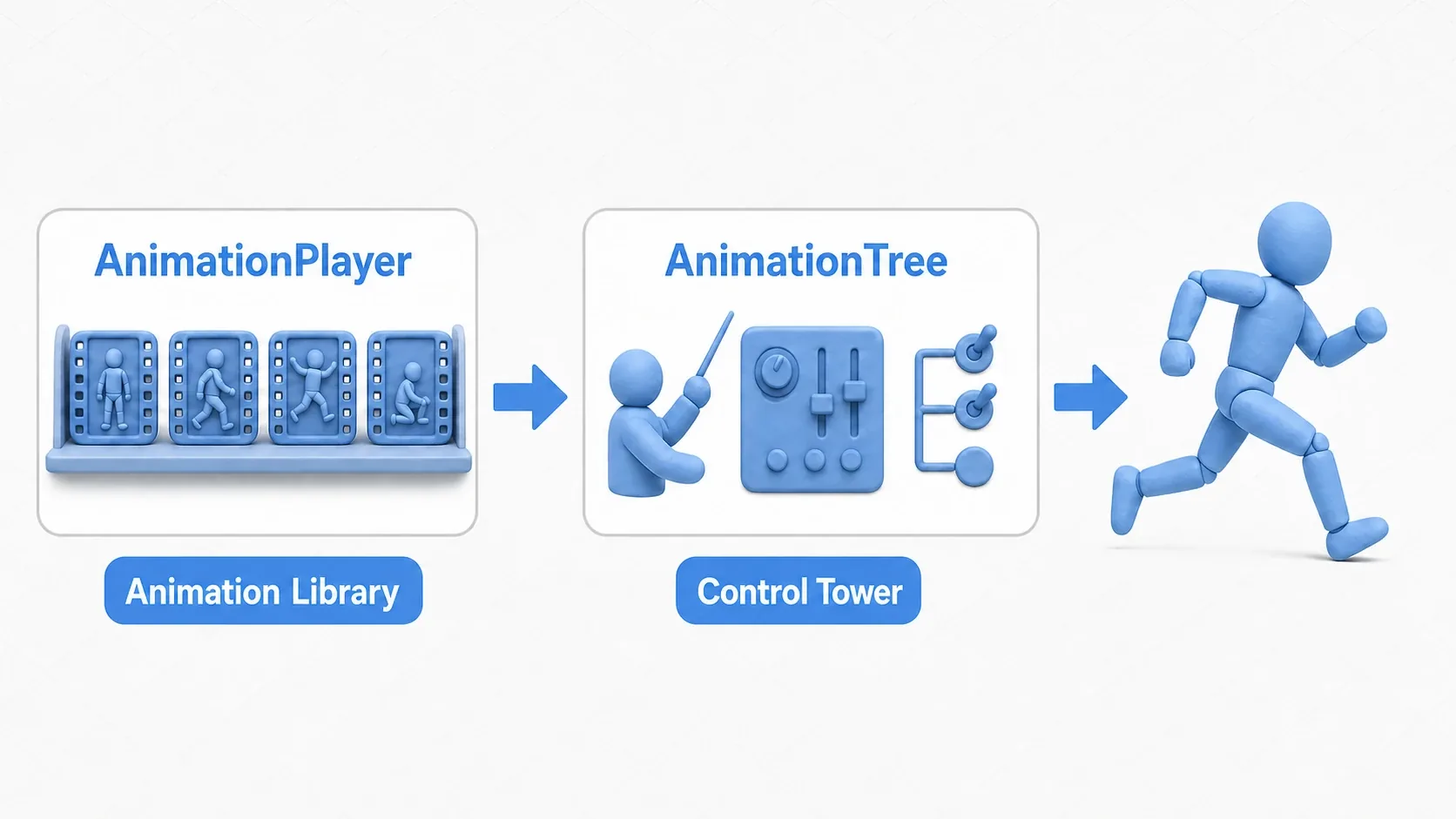

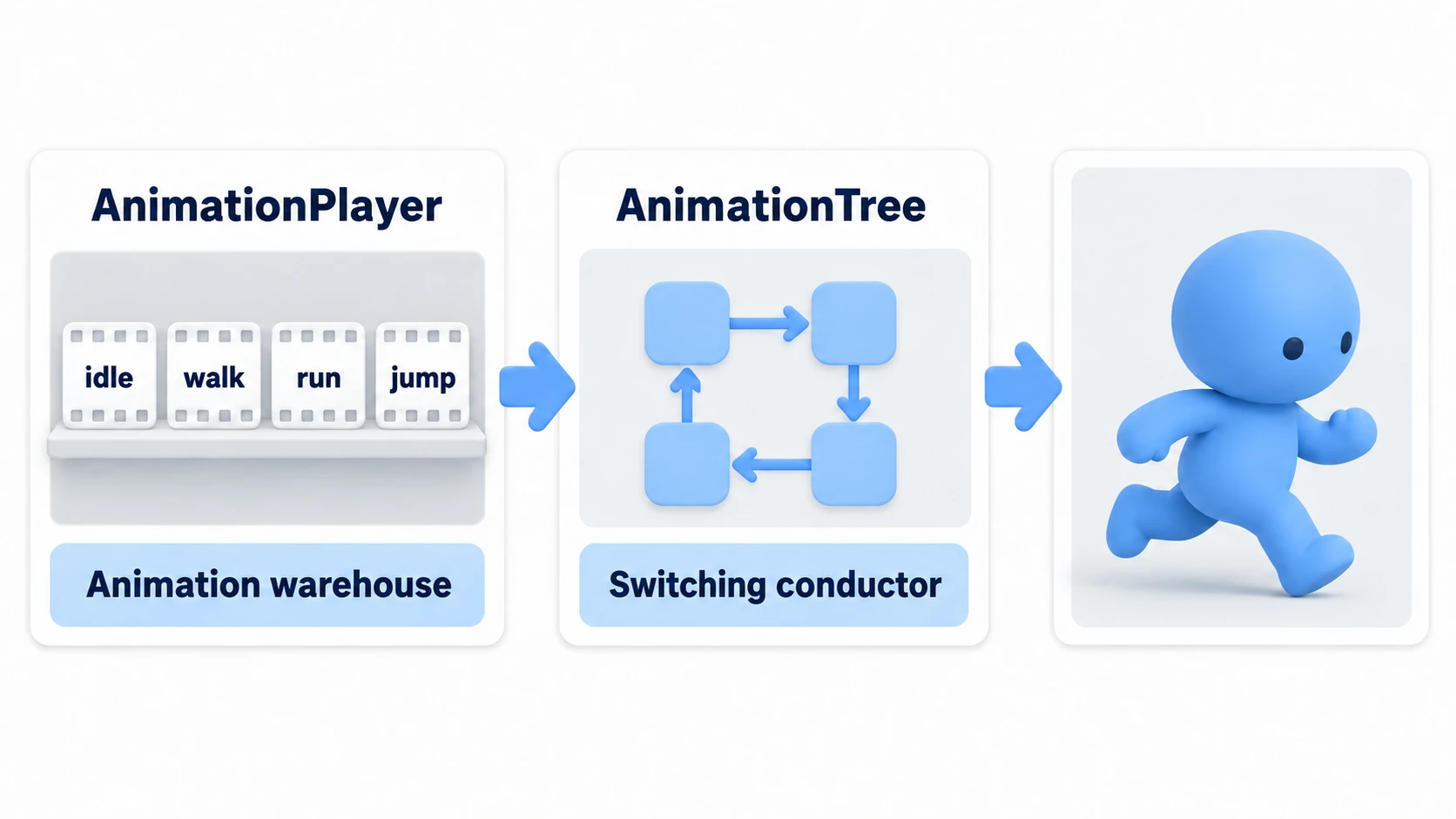

AnimationTree is a node that retrieves animation data stored in AnimationPlayer nodes and controls blending and state machine behavior. While AnimationPlayer serves as the animation "data bank," AnimationTree acts as the "engine" that executes and controls animations.

2. AnimationNodeStateMachine (State Machine)

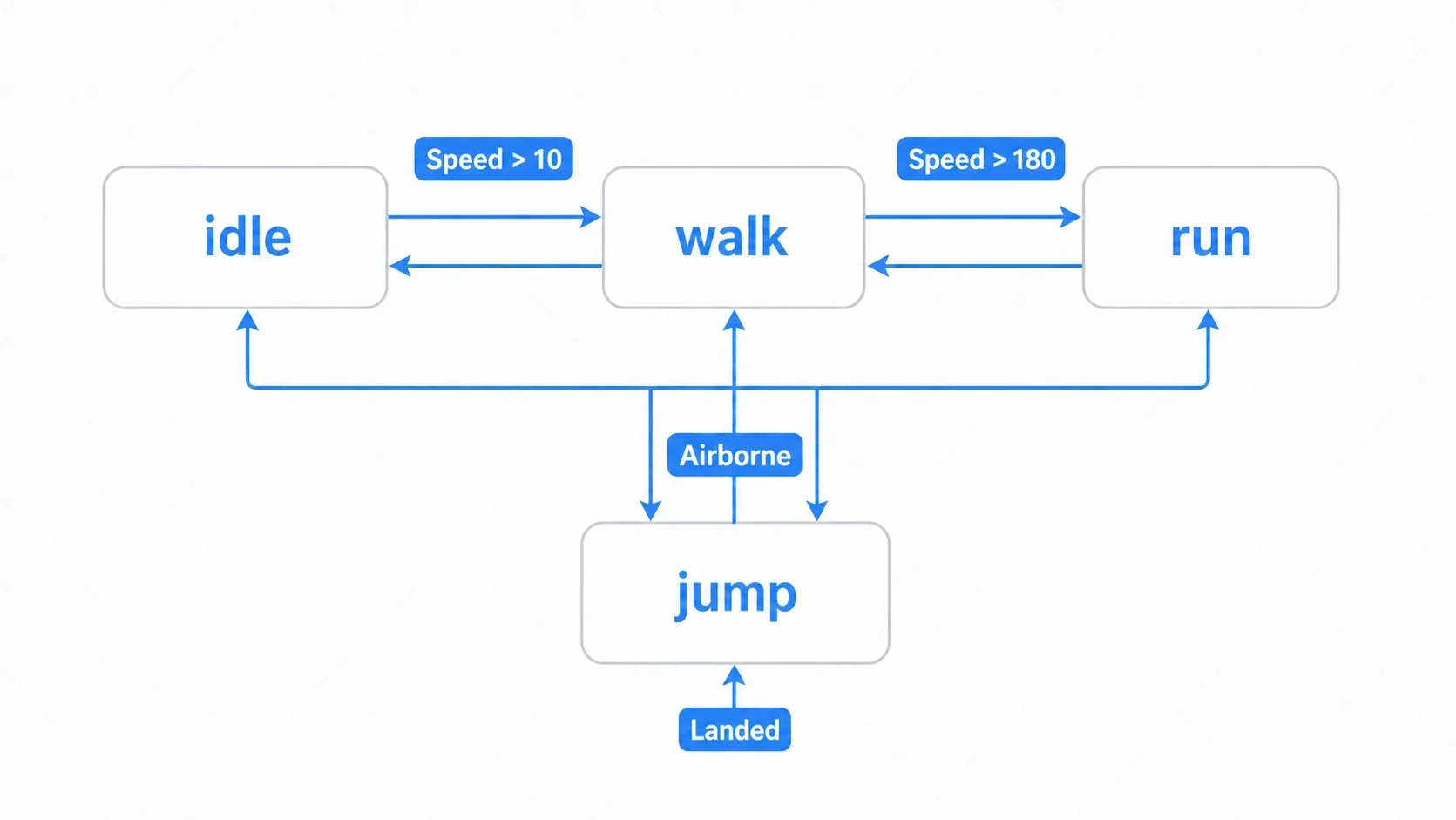

A state machine is a graph structure consisting of multiple animation nodes (states) and transitions connecting them.

• State: A node on the graph representing a specific animation.
• Transition: Arrows for moving between states. These transitions can have specific conditions set.

3. AnimationNodeStateMachinePlayback

An object used to control the state machine from GDScript. All operations from code—forced transitions via the travel() method, checking the current state, etc.—are performed through this.

---

Practice: Implementing a Character with Idle, Walk, Run, and Jump

1. Preparing Nodes and Animations

First, prepare a node structure like below and create four animations in AnimationPlayer: idle, walk, run, and jump.

- CharacterBody2D
  - Sprite2D
  - CollisionShape2D
  - AnimationPlayer
  - AnimationTree

2. Setting Up AnimationTree

1. Select the AnimationTree node and assign the AnimationPlayer node to the Anim Player property in the inspector.
2. Set the Tree Root property to New AnimationNodeStateMachine.
3. In the AnimationTree panel displayed at the bottom of the screen, add 4 Animation nodes on the graph editor and rename them to idle, walk, run, and jump.
4. Connect nodes with arrows to create transitions.

3. GDScript Control

extends CharacterBody2D

const WALK_SPEED = 100.0
const RUN_SPEED = 250.0
const JUMP_VELOCITY = -400.0

@onready var animation_tree: AnimationTree = $AnimationTree
@onready var animation_state: AnimationNodeStateMachinePlayback = animation_tree.get("parameters/playback")

var gravity = ProjectSettings.get_setting("physics/2d/default_gravity")

func _ready():
    animation_tree.active = true

func _physics_process(delta):
    # Gravity
    if not is_on_floor():
        velocity.y += gravity * delta

    # Jump
    if Input.is_action_just_pressed("ui_accept") and is_on_floor():
        velocity.y = JUMP_VELOCITY

    # Horizontal movement
    var direction = Input.get_axis("ui_left", "ui_right")
    var target_speed = 0.0
    if direction:
        if Input.is_action_pressed("ui_sprint"):
            target_speed = RUN_SPEED
        else:
            target_speed = WALK_SPEED

    velocity.x = move_toward(velocity.x, direction * target_speed, 20.0)

    move_and_slide()

    update_animation_parameters()

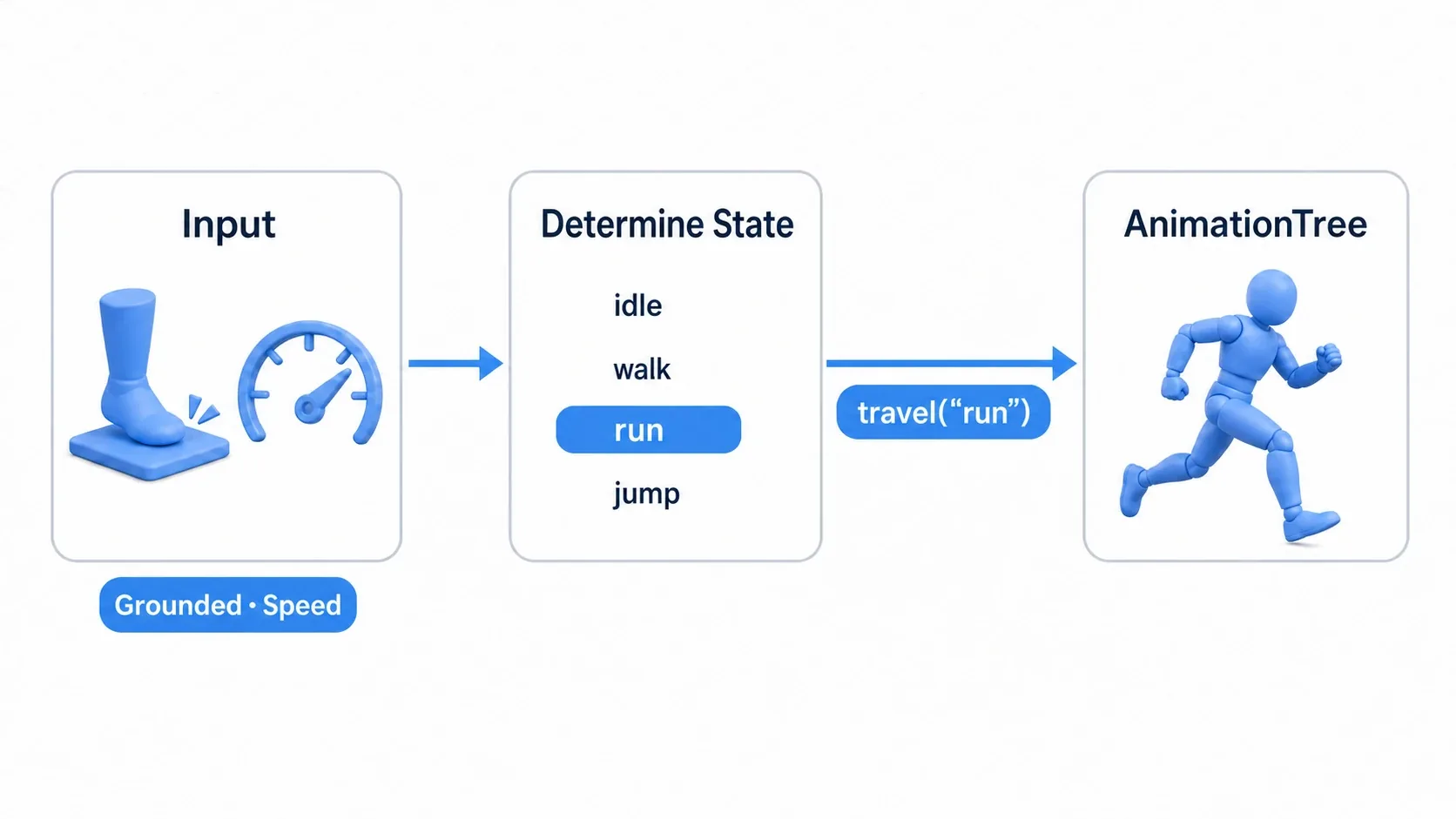

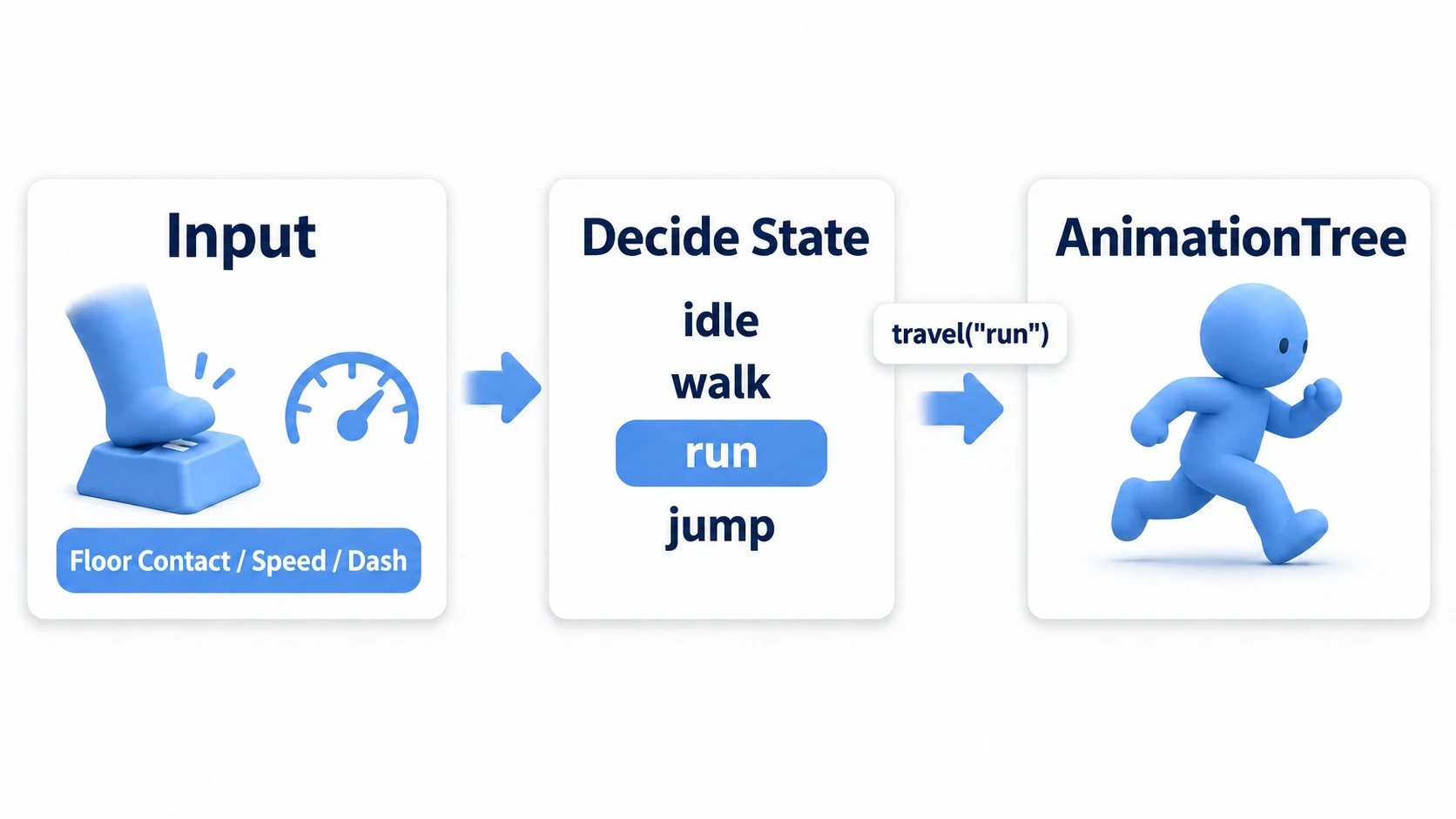

func update_animation_parameters():
    var on_floor = is_on_floor()
    var current_speed = abs(velocity.x)
    var target_state = ""

    if on_floor:
        if current_speed > 180:
            target_state = "run"
        elif current_speed > 10:
            target_state = "walk"
        else:
            target_state = "idle"
    else:
        target_state = "jump"

    # Only call travel() when current state differs
    if animation_state.get_current_node() != target_state:
        animation_state.travel(target_state)

---

Common Mistakes and Best Practices

Common Mistake	Best Practice
Overusing travel()	Update parameters with set() and leave transitions to AnimationTree's conditions. Use travel() only for special situations.
Giant single state machine	Group related states and utilize nested state machines (sub-state machines).
Using magic numbers	Define as constants or export variables like const RUN_SPEED = 250.0 to improve reusability and maintainability.

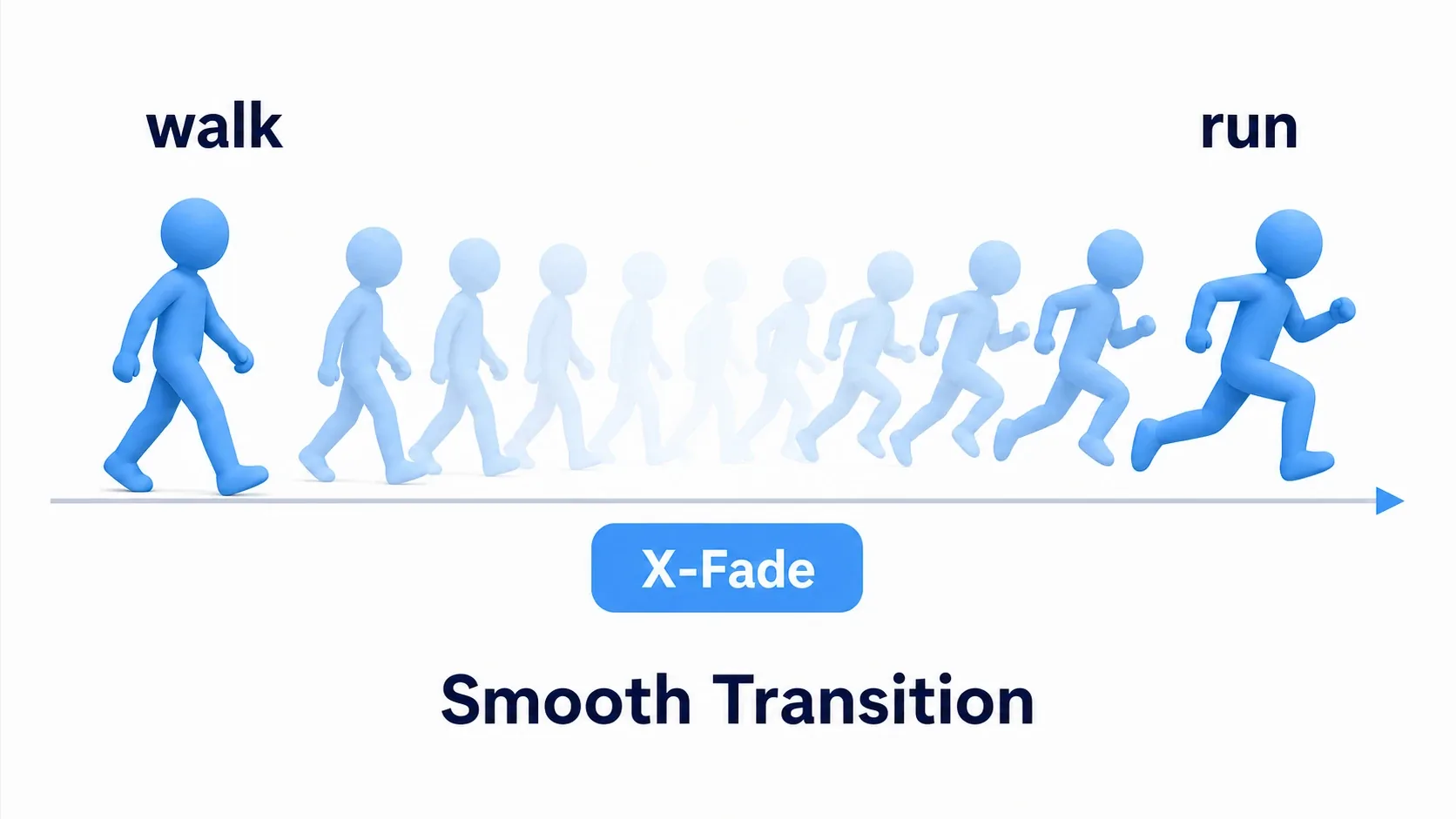

X-Fade Time of 0 on transitions	Setting a short crossfade time of 0.1-0.3 seconds smoothly interpolates animations, resulting in natural movement.

---

Performance and Alternative Patterns

Performance Considerations

• Node count and transition complexity: The more nodes and transitions in your state machine, the greater the per-frame evaluation cost.
• Blend calculations: Complex blending in BlendSpace2D or BlendTree consumes CPU resources.
• Parameter update frequency: Parameter updates via set() are lightweight, but continuously updating many parameters every frame adds slight overhead.

Alternative Pattern: Managing Everything in Code

It's also possible to manage everything in GDScript without using AnimationTree.

func _physics_process(delta):
    if not is_on_floor():
        $AnimationPlayer.play("jump")
    else:
        if abs(velocity.x) > 180:
            $AnimationPlayer.play("run")
        elif abs(velocity.x) > 10:
            $AnimationPlayer.play("walk")
        else:
            $AnimationPlayer.play("idle")

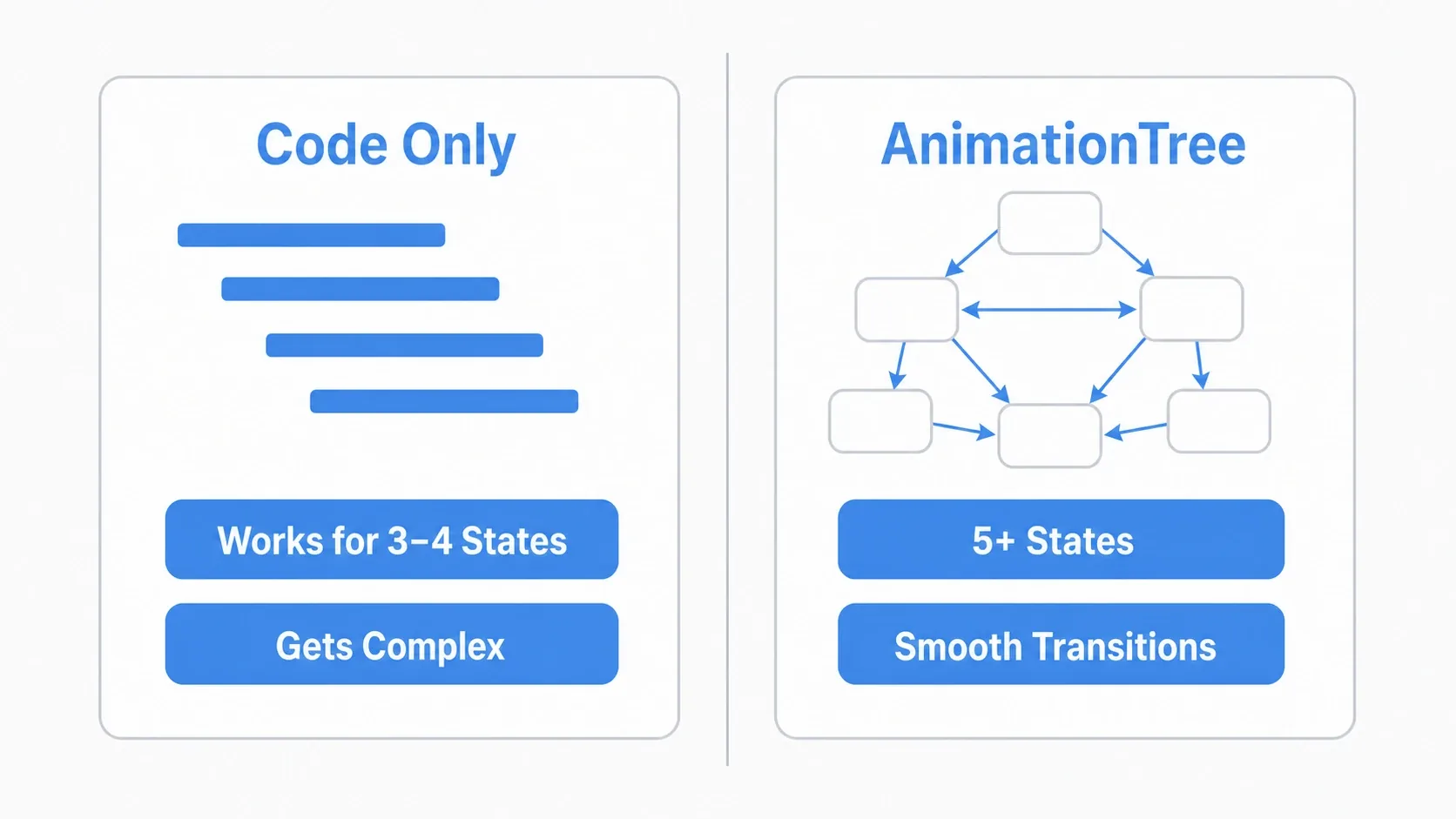

For very simple characters with only 3-4 states, this approach may be more convenient. However, as states increase, if statements nest and you easily fall into "spaghetti code."

When your character has 5 or more states, or when smooth animation transitions are required, introducing AnimationTree is recommended.

---

Next Steps

• BlendSpace2D / BlendSpace1D: Smoothly blend multiple animations based on 1D/2D vectors like speed. Ideal for 8-directional movement animations.
• AnimationNodeBlendTree: Enables more complex and free animation composition.
• AnimationNodeOneShot: Very convenient for animations that play once and return to the original state, like attacks or item usage.

Summary

Godot Engine's AnimationTree and AnimationNodeStateMachine are essential tools that dramatically simplify complex character animation management and improve game development efficiency and quality.

Feature	Role	Benefit
AnimationTree	Animation execution engine	Separates logic from AnimationPlayer
State Machine	Visual definition of transition rules	Intuitively manage complex transitions
Transition Conditions	Conditions for triggering transitions	Reduce code burden and improve flexibility

By understanding these concepts and combining them with practical GDScript control methods, your game characters will achieve more lively and natural movement.
