【Godot】Godot Engine Camera2D Practical Techniques: Mastering Smooth Follow, Screen Shake, and Dynamic Zoom

Practical Camera2D Techniques for Enhanced Immersion

The Camera2D node in Godot Engine functions as the "eye" of 2D games, responsible for following the player or displaying specific scenes. However, beyond simply following the player, adding sophistication to camera movement can dramatically improve your game's immersion and feedback.

Especially in action and platformer games, camera movement directly affects how players experience controls. This article explains implementation methods for three practical Camera2D techniques that elevate game quality: smooth follow, screen shake, and dynamic zoom, complete with concrete GDScript code.

---

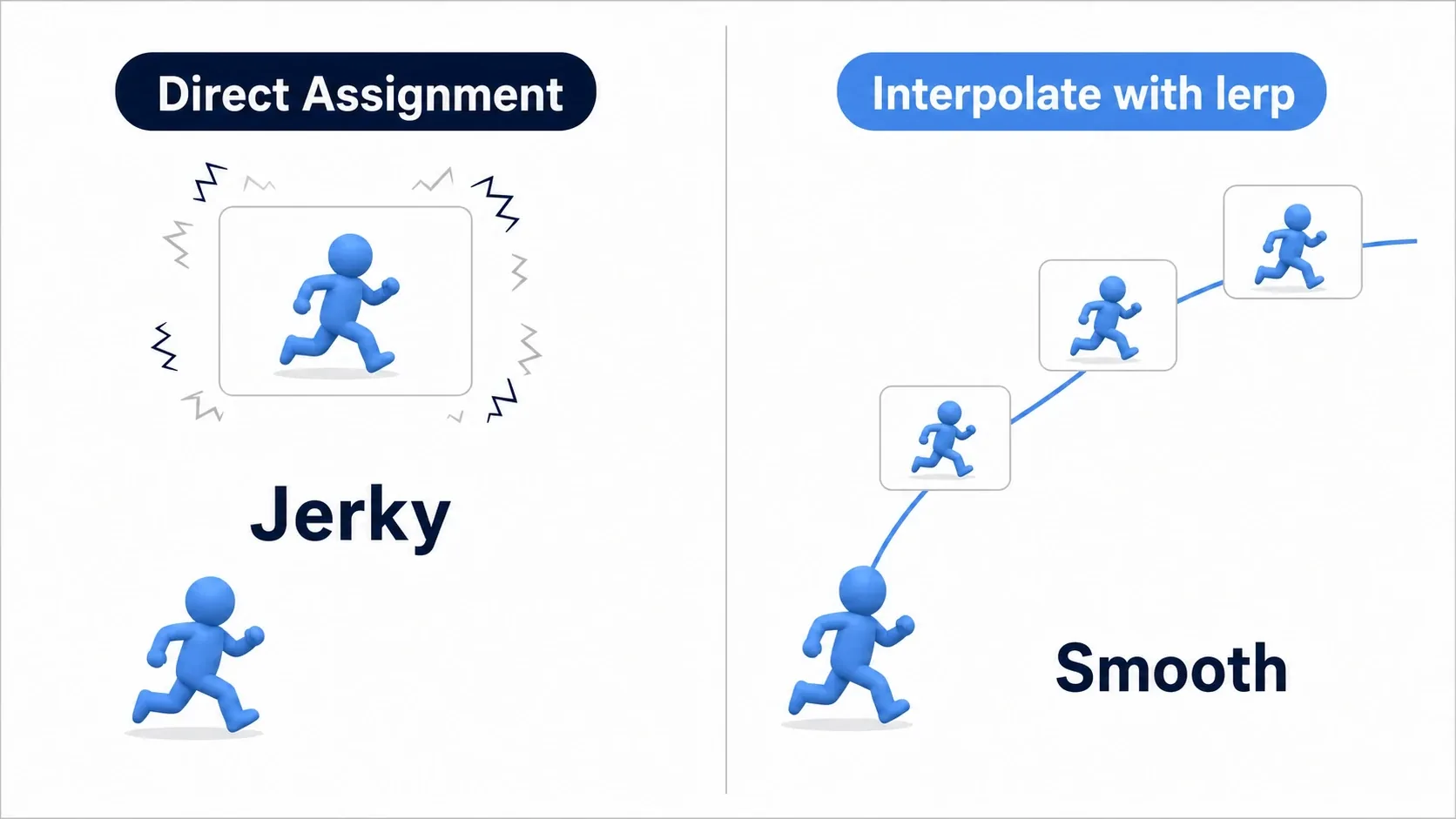

1. Smooth Follow for Gentle Player Tracking

Basic Camera2D following can be achieved by setting global_position in scripts, but simply assigning the target's coordinates directly makes camera movement stiff, causing stuttering as the camera can't keep up with player movement. Particularly when physics-based movement (_physics_process) and camera rendering (_process) timing diverge, stuttering called jitter tends to occur.

position_smoothing_enabled: Easy Introduction

Camera2D nodes come with a standard position_smoothing_enabled property. Simply setting this to true and adjusting position_smoothing_speed easily achieves smooth following.

• Pros: Very easy to implement. Configurable with just a few clicks in the inspector.
• Cons: Fixed follow speed. Not suitable for dynamic speed changes or complex control.

Advanced Following with Lerp (Linear Interpolation)

For finer control over follow speed, or when standard smoothing doesn't yield satisfactory results, use GDScript's lerp (linear interpolation) function.

# Script attached to Camera2D
extends Camera2D

@export var target: Node2D
# Follow smoothness. Smaller values = smoother (slower)
@export_range(0.0, 1.0) var follow_smoothing: float = 0.05

func _physics_process(delta: float) -> void:
    if not is_instance_valid(target):
        return

    # Smoothly interpolate camera position toward target
    global_position = global_position.lerp(target.global_position, 1.0 - pow(follow_smoothing, delta))

The key point in this code is using 1.0 - pow(follow_smoothing, delta) for the lerp weight. This keeps camera follow speed nearly constant even when frame rate (delta) fluctuates.

---

2. Screen Shake for Conveying Impact

Screen shake is an important feedback technique for visually conveying in-game impacts—when players take damage, unleash powerful attacks, or explosions occur.

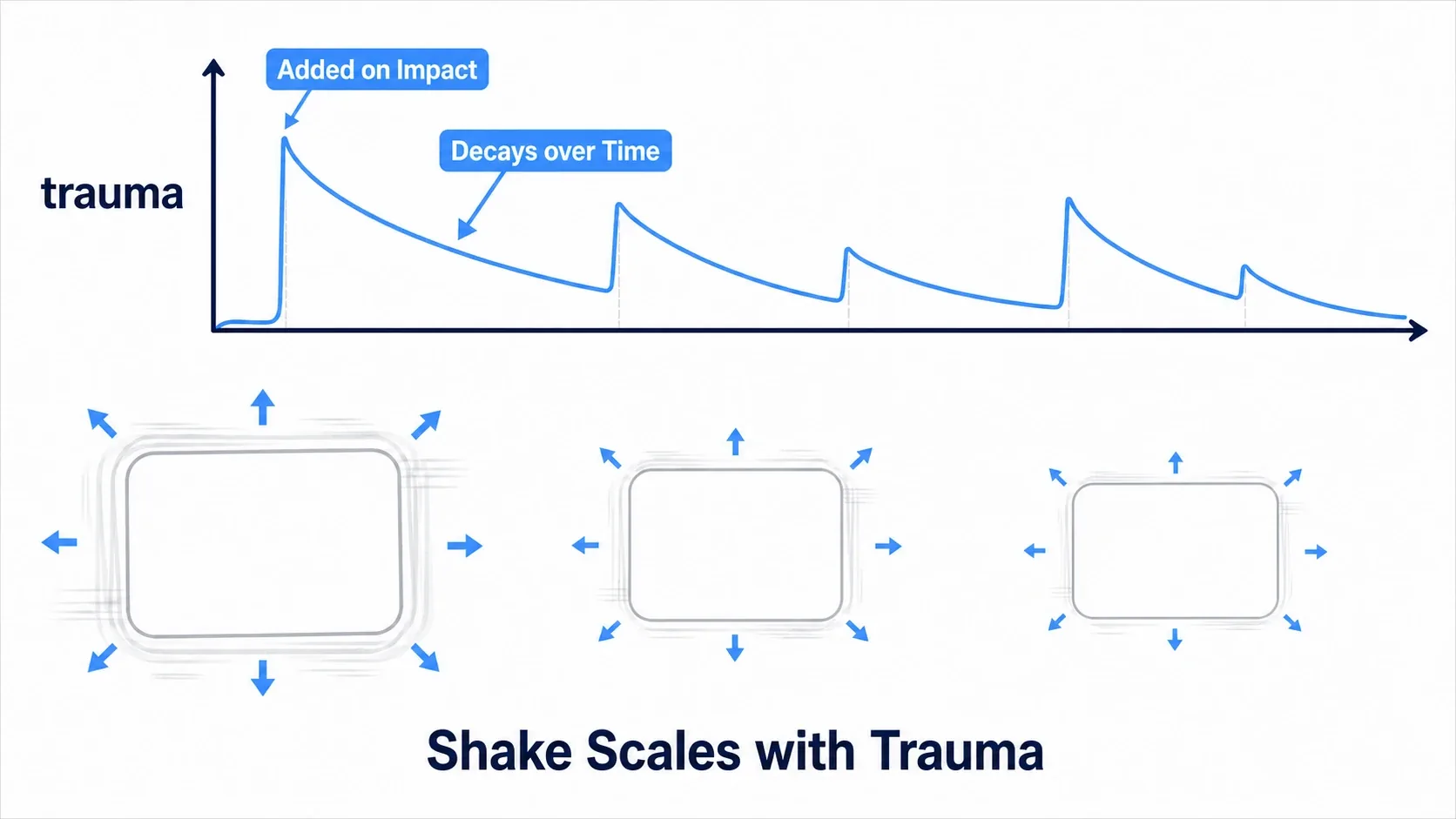

Trauma-Based Screen Shake

One of the most effective methods for implementing screen shake is the trauma value-based approach.

1. Trauma Value Management: Add a "trauma" value between 0.0 and 1.0 each time an impact occurs.
2. Shake Amount Calculation: Calculate screen shake amount based on the trauma value. Higher trauma means larger shakes.
3. Decay: The trauma value gradually decays over time.

# Script attached to Camera2D
extends Camera2D

var trauma: float = 0.0
@export var trauma_decay: float = 0.8 # Trauma decay rate per second
@export var max_offset: float = 10.0 # Maximum shake offset

func add_trauma(amount: float):
    # Add trauma value, clamping to not exceed 1.0
    trauma = min(trauma + amount, 1.0)

func _process(delta):
    if trauma > 0:
        # Decay trauma over time
        trauma -= trauma_decay * delta
        trauma = max(trauma, 0.0)

        # Calculate shake amount (squaring trauma creates sharper decay appearance)
        var shake_amount = trauma * trauma

        # Apply random offset
        var x_offset = randf_range(-1.0, 1.0) * max_offset * shake_amount
        var y_offset = randf_range(-1.0, 1.0) * max_offset * shake_amount

        offset = Vector2(x_offset, y_offset)
    else:
        # Reset offset when trauma is gone
        offset = Vector2.ZERO

Attach this script to Camera2D and call add_trauma(0.5) when events like explosions occur to achieve realistic screen shake.

---

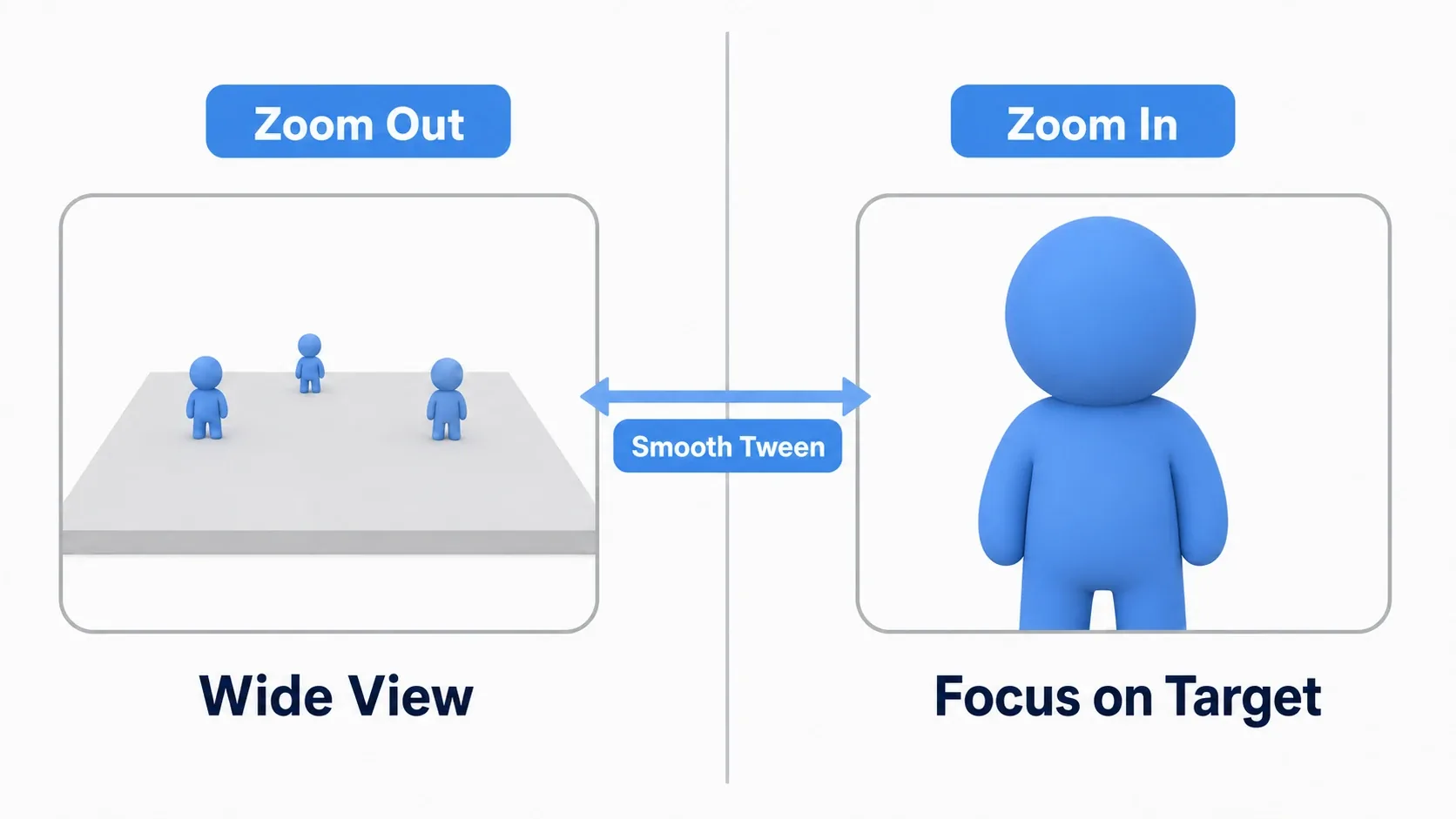

3. Dynamic Zoom for Scene Direction

Camera2D's zoom feature is highly effective not just for scaling the screen, but for enhancing game direction and strategy. For example, zooming in at the start of a boss fight or zooming out to show a vast area.

Smooth Zoom with Tween Node

Changing zoom instantly can cause discomfort for players. Use Tween to smoothly transition zoom values over time.

# Script attached to Camera2D
extends Camera2D

# Function to execute zoom animation
func animate_zoom(target_zoom: float, duration: float = 0.5) -> void:
    # Create new Tween
    var tween = create_tween().set_trans(Tween.TRANS_SINE).set_ease(Tween.EASE_OUT)

    # zoom property is Vector2, so animate both axes with same value
    tween.tween_property(self, "zoom", Vector2(target_zoom, target_zoom), duration)

# Usage example
func _unhandled_input(event: InputEvent) -> void:
    if event.is_action_pressed("zoom_in"):
        animate_zoom(1.5) # Zoom in to 1.5x
    if event.is_action_pressed("zoom_out"):
        animate_zoom(1.0) # Return to default zoom

---

Common Mistakes and Best Practices

Category	Common Mistake	Best Practice
Following	Following physics objects in _process causes jitter.	Perform physics object following in _physics_process. In Godot 4, setting Camera2D's Process Callback to Physics is easiest.
Coordinate System	Confusing position and global_position, causing camera to move to unintended locations.	Always calculate based on global coordinates (global_position) for stable behavior independent of parent-child relationships.
Interpolation	Directly multiplying delta with lerp's weight argument, creating frame rate-dependent movement.	Use frame rate-corrected formulas like 1.0 - pow(smoothing, delta).

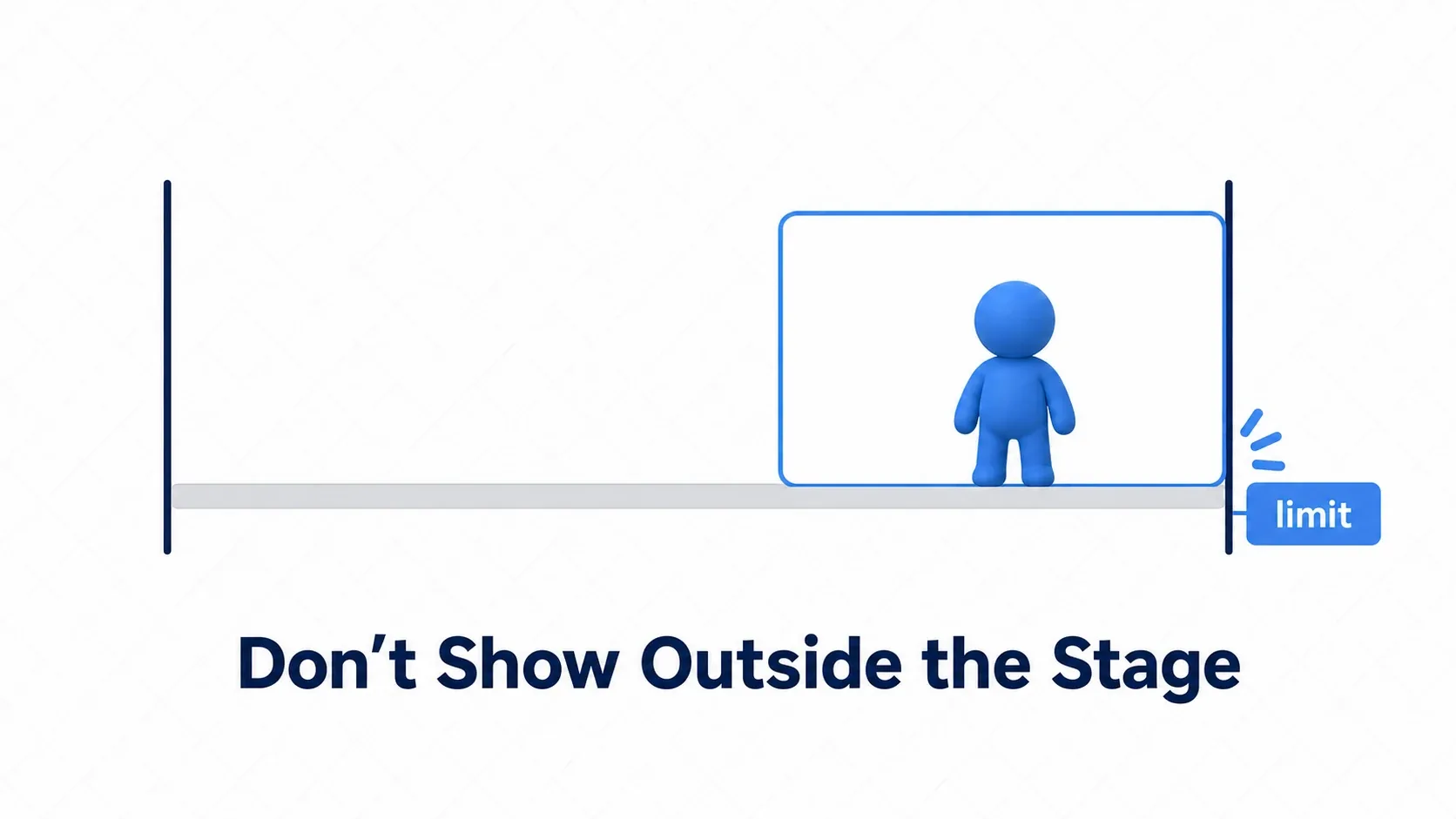

Performance	Continuing to render off-screen objects, degrading performance.	Restrict camera movement range with Camera2D's limit property.

---

Performance and Alternative Patterns

• Performance: The techniques introduced here won't be problematic for most PC games. However, in mobile games or games with many objects, per-frame lerp and pow calculations may add slight load.

• Alternative Pattern (Screen Shake): Instead of shaking offset, you can use shaders to distort the entire screen. This may achieve complex effects like rotation and chromatic aberration at lower cost.

Summary: Combining Practical Techniques

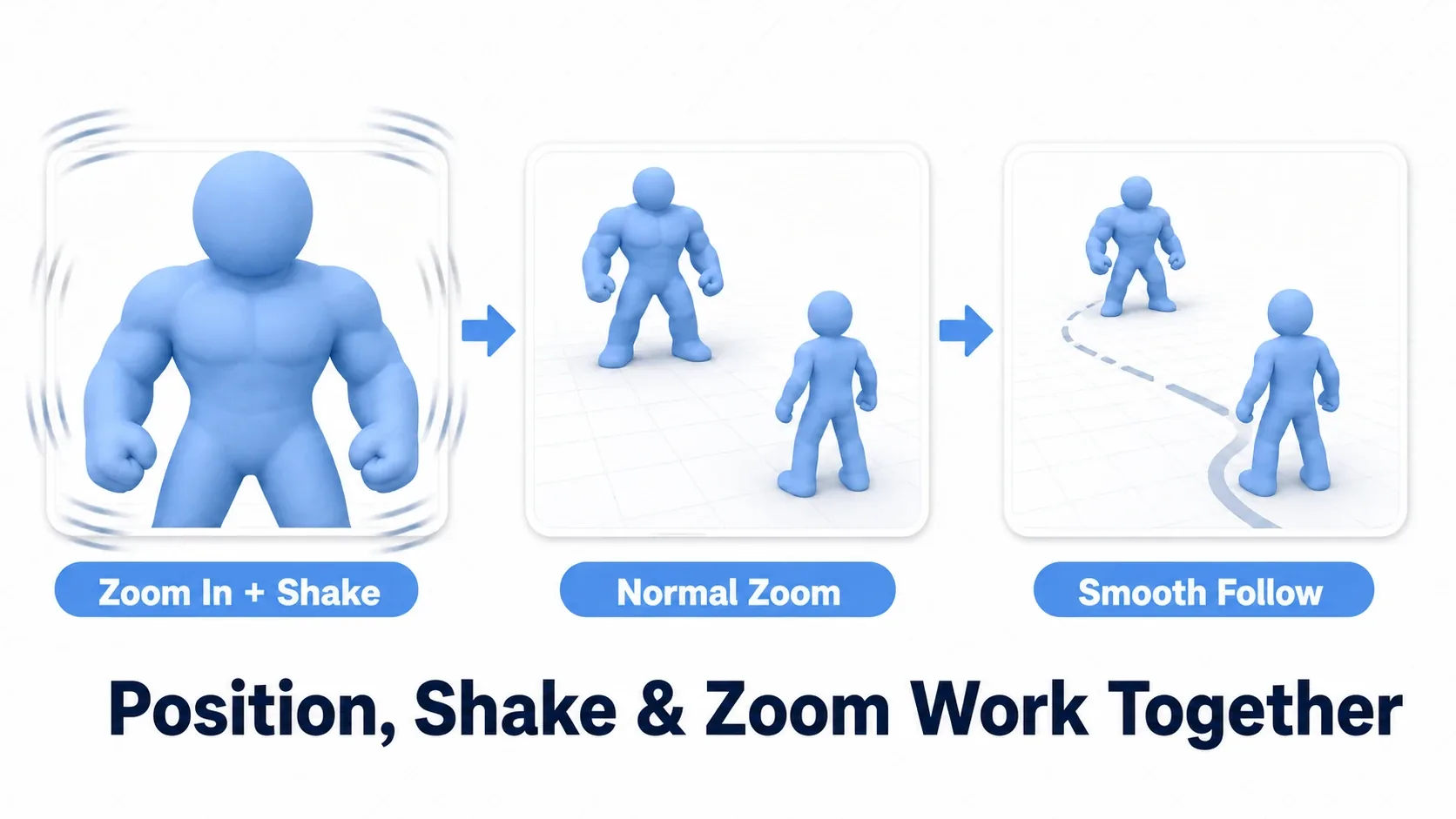

The three Camera2D techniques introduced in this article function independently, but combining them provides an even richer game experience.

Technique	Purpose	Primary Implementation	Use Cases
Smooth Follow	Improve player tracking smoothness	lerp function, _physics_process	Constant movement, running
Screen Shake	Impact and event feedback	Trauma value, randomized offset	Explosions, taking damage, powerful attacks
Dynamic Zoom	Scene direction, strategy changes	Tween node, zoom property	Boss fight start, area transitions

Master these techniques and bring your Godot games to life.
