【Godot】Control Node Fundamentals and Layout Containers - Building Responsive UI in Godot Engine

Why Learn UI Building Fundamentals

In game development, the user interface (UI) is a crucial connection point between players and the game world. However, building UI that adapts to diverse devices with different screen sizes and aspect ratios is often a challenging task for developers. Godot Engine provides a powerful toolset of Control nodes and layout containers to solve this UI building challenge. Understanding and mastering these is key to efficiently creating responsive UI that delivers consistent user experiences across all environments.

This article covers everything from the role of Control nodes—the foundation of UI in Godot Engine—to specific uses of layout containers that automatically adjust complex layouts.

---

1. What is a Control Node

In Godot Engine's node tree, the foundation for UI elements is the Control node. Control nodes inherit from CanvasItem, and like Node2D, they are elements that render on screen, but differ mainly in these ways:

1. Anchors and Offsets: Control nodes have Anchors and Offsets properties for defining position and size relative to the parent node.
2. Input Handling: They have signals and methods for processing UI-specific input events like button clicks and slider manipulation.
3. Themes and Styles: They support a Theme system for centrally managing UI element appearance.

Key Control Node Properties

Property	Role	Common Settings

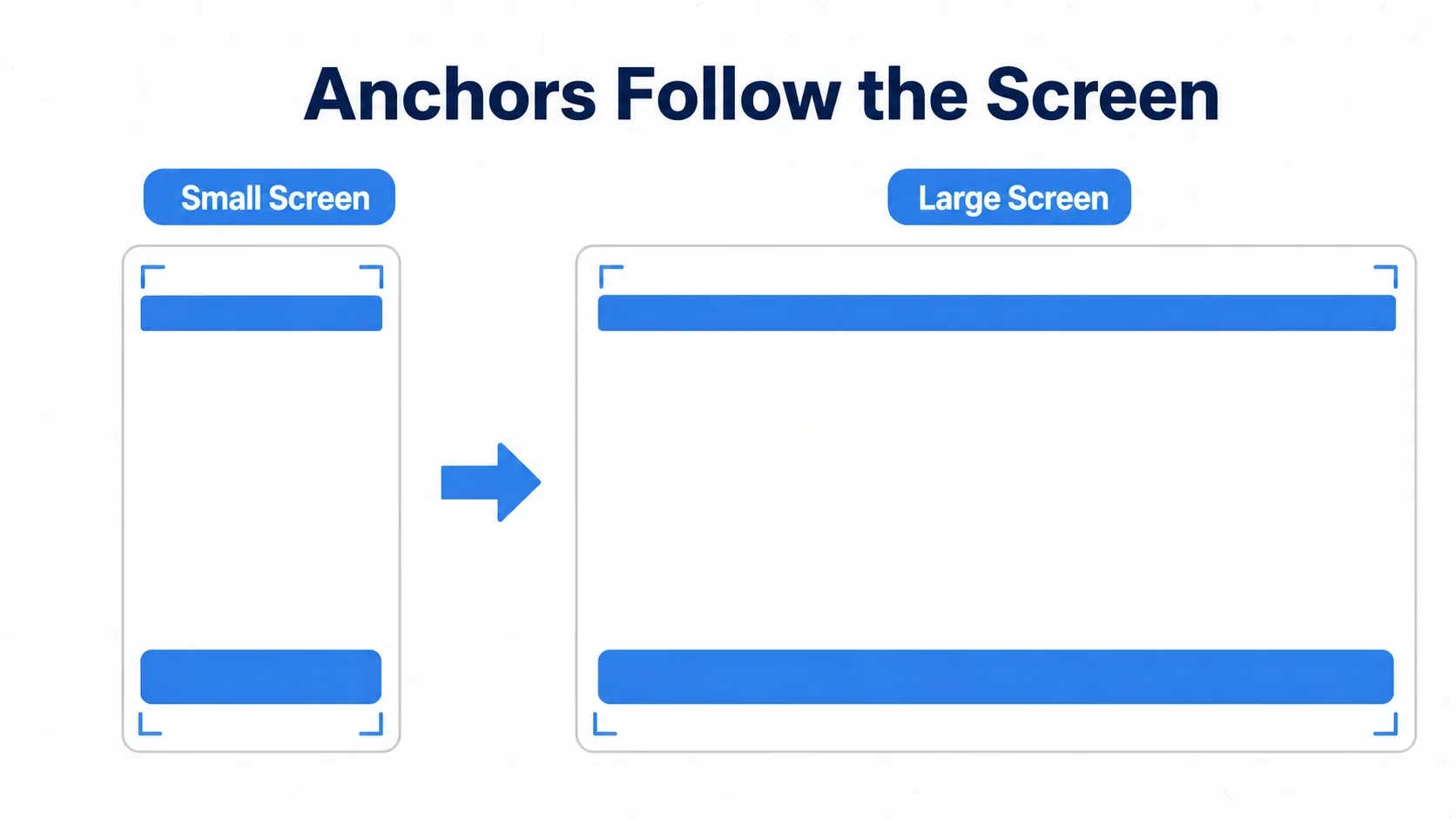

Anchors	Defines where the node's four corners are pinned relative to the parent node.	Top Left (default), Full Rect (expands to fill), Center, etc.
Offsets	Defines deviation (in pixels) from positions defined by anchors.	Left, Top, Right, Bottom
Size Flags	Defines how the node behaves within its parent layout container.	Fill (fills available space), Expand (expands as much as possible)

---

2. The Power of Layout Containers

While basic UI can be built with Control nodes alone, manually adjusting positions every time screen size changes is inefficient. This is where layout containers (Container nodes) come in.

Layout containers are special Control nodes that automatically manage and adjust the size and position of their child Control nodes. This allows developers to focus on relationships between elements and layout rules without worrying about exact coordinates of individual UI elements.

Key Layout Containers

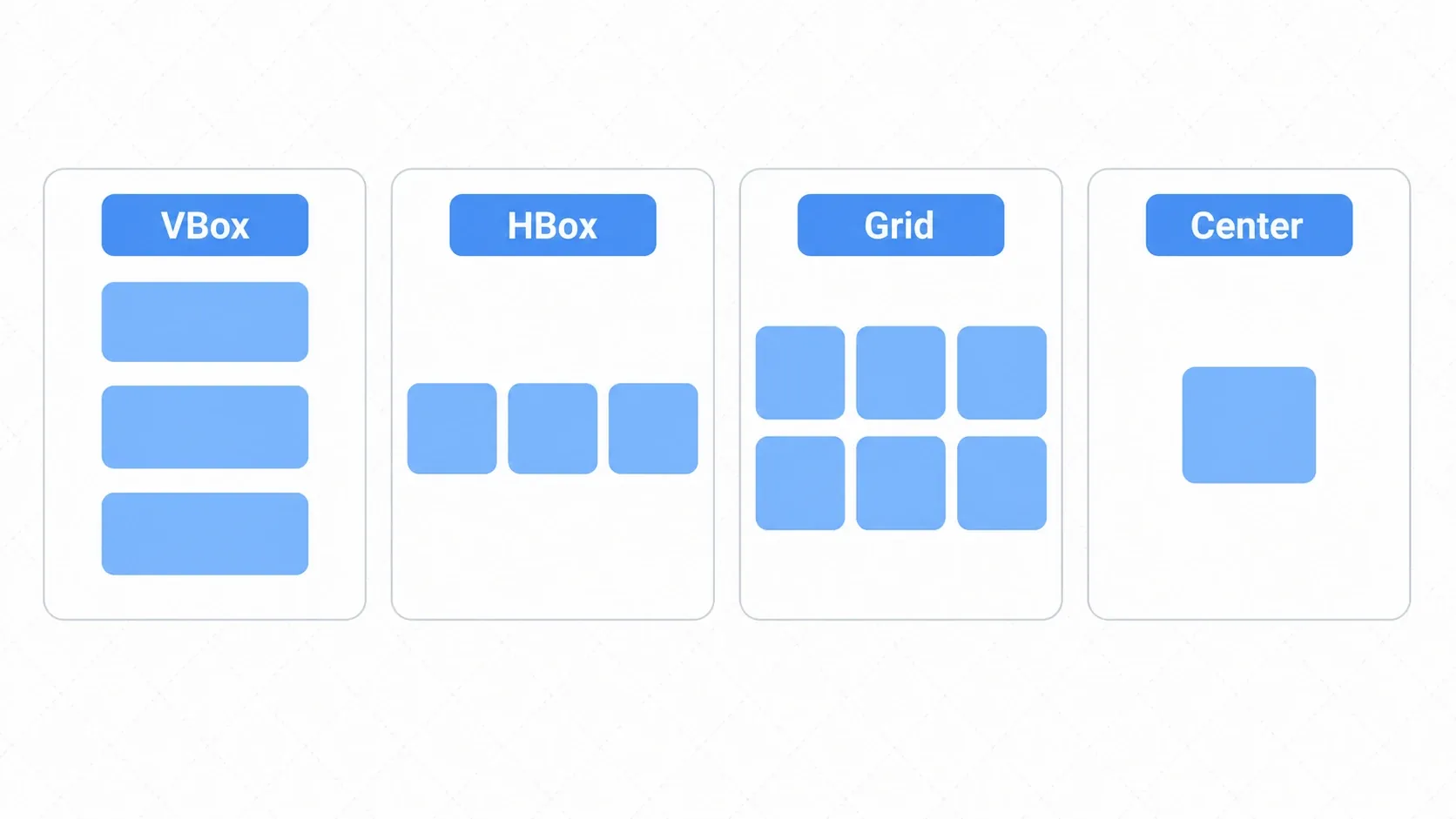

Container Node	Function	Use Cases
VBoxContainer	Arranges children vertically from top to bottom.	Main menus, settings lists, vertical dialogs
HBoxContainer	Arranges children horizontally from left to right.	Toolbars, horizontal confirmation buttons (OK/Cancel)
GridContainer	Arranges children in a grid pattern with specified column count.	Inventory screens, skill trees, level selection
MarginContainer	Adds uniform margins around children.	Ensuring safe margins around screen edges or UI sections
CenterContainer	Positions children at the center of its rectangle.	Title logos, loading icons, popup windows
PanelContainer	Draws a panel background based on a StyleBox and places children inside.	UI window backgrounds, information display area separators
ScrollContainer	Displays scrollbars when children exceed its size.	Long text display, lists with variable item counts

Container Nesting Patterns

In actual UI design, combining multiple containers is common practice.

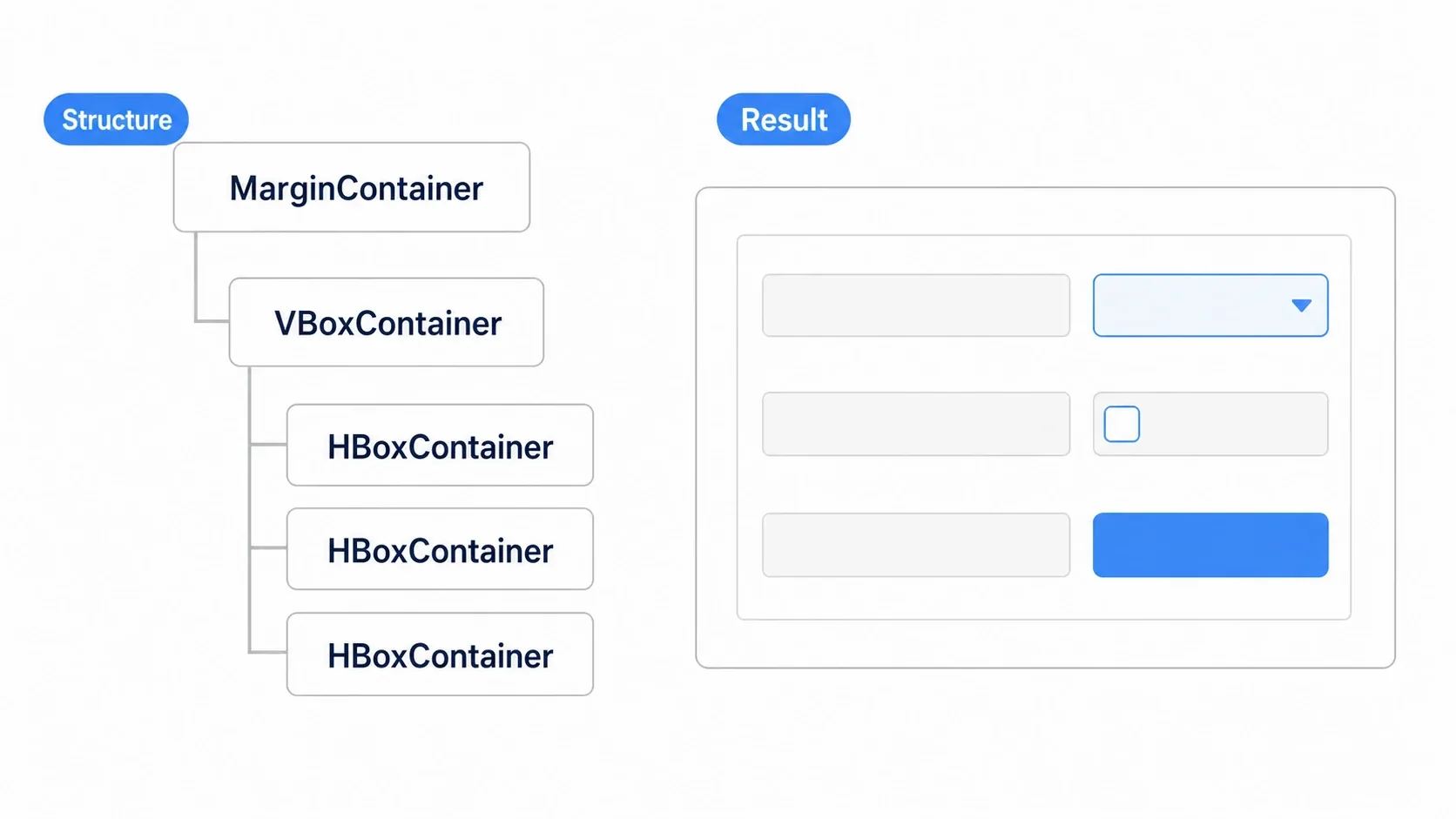

# Typical settings screen structure example
MarginContainer (ensures screen-wide margins)
  └─ VBoxContainer (arranges settings items vertically)
       ├─ Label (title: "Graphics Settings")
       ├─ HBoxContainer (arranges resolution setting horizontally)
       │    ├─ Label (item name: "Resolution")
       │    └─ OptionButton (resolution selection dropdown)
       ├─ HBoxContainer (fullscreen setting)
       │    ├─ Label (item name: "Fullscreen")
       │    └─ CheckBox
       └─ HBoxContainer (right-align confirmation button)
            ├─ Control (dummy node to fill space)
            └─ Button ("Apply" button)

---

3. Practical Example: Building a Main Menu

Let's look at the steps and code example for building a simple main menu with vertically arranged buttons using layout containers.

Building the Scene

1. Root Node: Add a Control node as the scene root and name it MainMenu.
2. Add Container: Add a VBoxContainer as a child of MainMenu.
3. Position Container: Select VBoxContainer and choose the "Full Rect" preset from the Layout menu in the inspector.
4. Add Buttons: Add 3 Button nodes as children of VBoxContainer and set their text to "Start Game", "Settings", and "Quit".

Implementing Button Functionality with GDScript

# MainMenu.gd
extends Control

@onready var start_button = $VBoxContainer/ButtonStart
@onready var settings_button = $VBoxContainer/ButtonSettings
@onready var quit_button = $VBoxContainer/ButtonQuit

func _ready():
    start_button.pressed.connect(_on_start_button_pressed)
    settings_button.pressed.connect(_on_settings_button_pressed)
    quit_button.pressed.connect(_on_quit_button_pressed)

func _on_start_button_pressed():
    print("Starting game!")
    # get_tree().change_scene_to_file("res://game_scene.tscn")

func _on_settings_button_pressed():
    print("Opening settings screen")

func _on_quit_button_pressed():
    print("Quitting game")
    get_tree().quit()

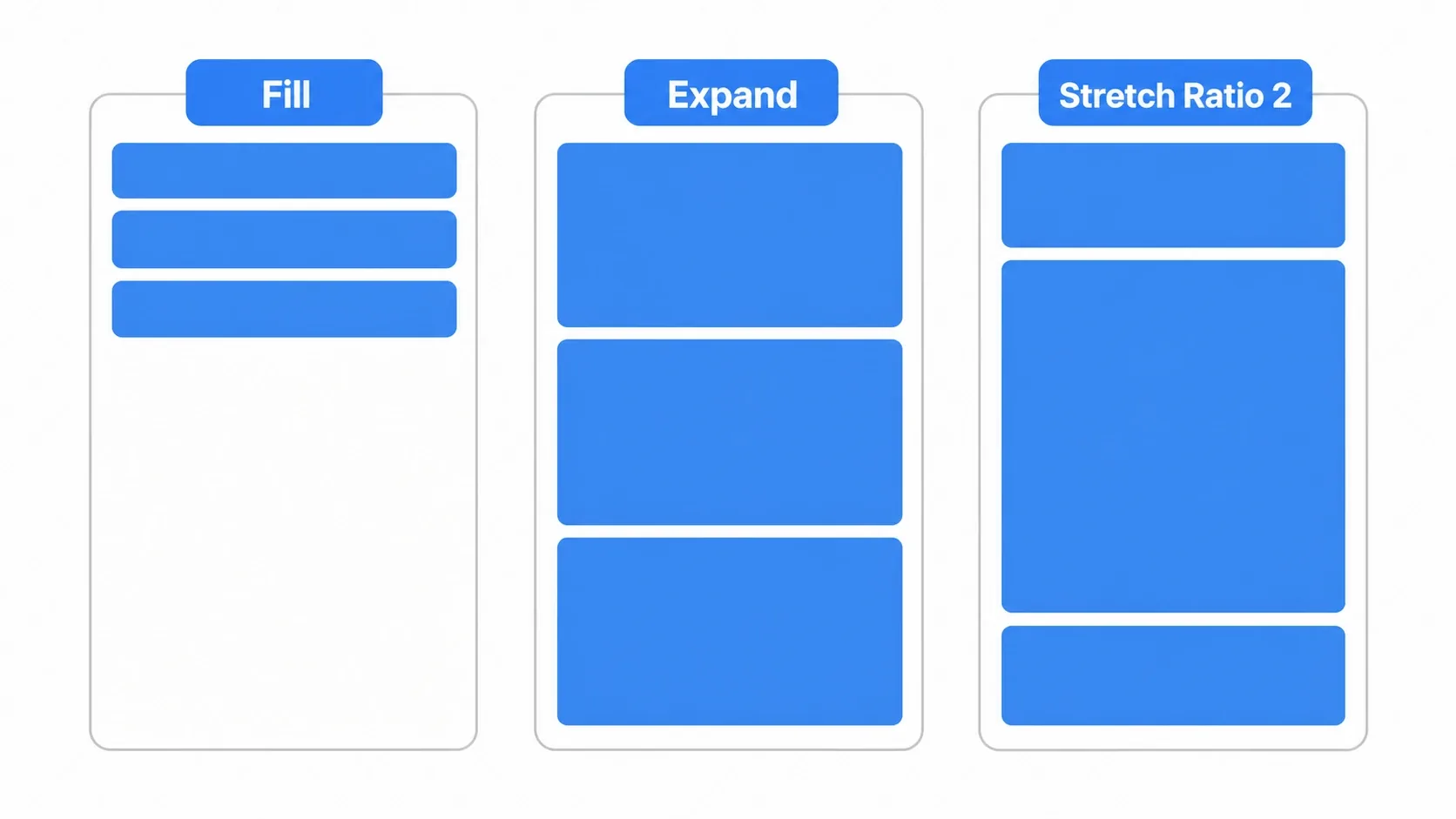

4. Advanced Layout Adjustment: Using Size Flags

Size flags are crucial for fine-grained control over child node sizes within layout containers.

1. Fill: The node expands to fill available space.
2. Expand: The node equally divides and occupies the container's remaining space.

If you set the Expand flag on all three buttons, the buttons share height equally. To make a specific button twice as tall, set that button's "Stretch Ratio" to 2.

---

Common Mistakes and Best Practices

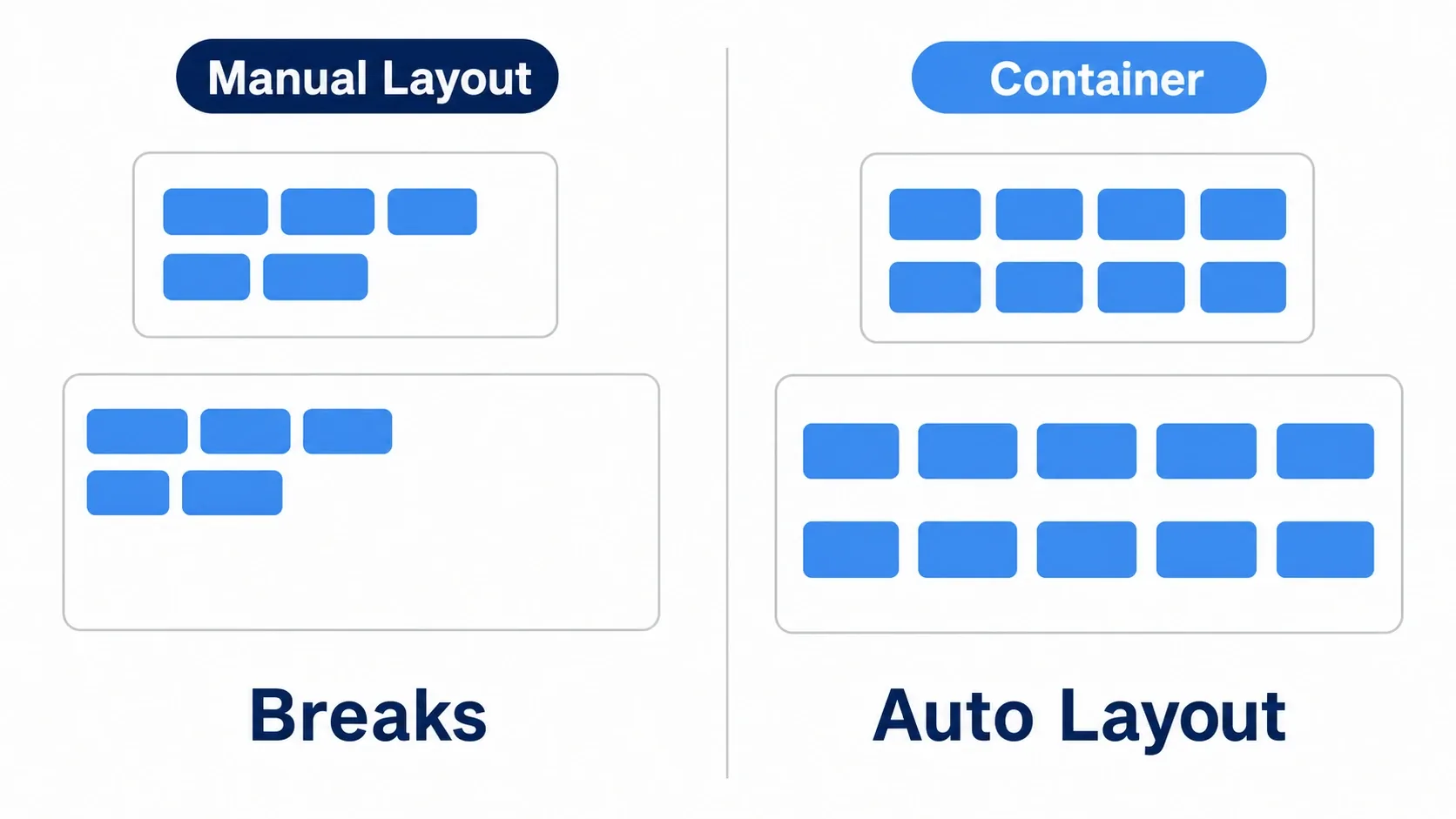

Common Mistake	Best Practice
Manually placing all UI elements and directly changing position.	Actively use containers and let containers handle layout. Minimize manual adjustments.
Writing code to manually adjust layout every time screen size changes.	Properly configure anchors and size flags to fully leverage Godot's responsive system.
Setting UI styles (colors, fonts) individually on each node.	Create a Theme resource to centrally manage UI appearance project-wide.
Creating complex UI in one giant scene.	Create reusable UI components like HP bars and buttons as individual scenes and use them as instances.
Overusing get_node("path/to/node") and writing code fragile to path changes.	Use @onready and scene unique nodes (%) for safer, more robust node references.

---

Performance and Alternatives

• Container Cost: Containers are very convenient, but deep nesting or having hundreds to thousands of children in one container can incur recalculation costs during resizing. Keep UI structure as simple as possible while maintaining meaningful groupings.

• Custom Drawing: Using the _draw() function, you can freely draw lines, circles, textures, etc. on Control nodes. This is a powerful option for creating UI that's difficult to express with containers (e.g., graphs, custom-shaped gauges).

Summary

UI building in Godot Engine uses Control nodes as the foundation, with layout containers automating and making layouts responsive as the basic strategy.

• Control Nodes: The foundation of UI elements, defining relative position with anchors and offsets.
• Layout Containers: Automatically manage child node placement, enabling responsive UI that adapts to various screen sizes.
• Size Flags and Stretch Ratio: Fine-tune node behavior and space distribution within containers.

By understanding these concepts and practicing with practical code examples, you'll be able to build games with professional and user-friendly UI.
