【Godot】Creating Explosion, Smoke, and Magic Effects with GPUParticles2D

Introduction: Why Particle Effects Matter

In game development, particle effects serve more than just decorative purposes. They instantly convey visual information to players—the impact of explosions, the mystery of magic, the heat of flames, the drifting of smoke—dramatically enhancing game immersion and feedback.

Godot Engine provides two main particle systems: CPUParticles2D and GPUParticles2D. This article focuses on GPUParticles2D, which leverages the GPU's parallel processing capabilities to render massive numbers of particles with high performance and efficiency. We'll explain how to create three key effects: "explosions," "smoke," and "magic."

1. Why GPUParticles2D? Differences from CPU and Basic Structure

Performance Comparison: CPU vs GPU

Feature	GPUParticles2D (This Article's Focus)	CPUParticles2D
Processing Location	GPU (Graphics Card)	CPU (Main Processor)
Performance	◎: High performance even with thousands to tens of thousands of particles	△: Risk of slowdown beyond a few hundred
Control Flexibility	◯: Advanced control possible through shaders	◎: Can directly manipulate individual particles via GDScript
Primary Uses	Large-scale effects: explosions, flames, rain, blizzards	Small-scale effects: UI highlights, dust at character's feet

The biggest advantage of GPUParticles2D is leveraging the GPU's massive parallel processing capability. This allows rendering large numbers of particles with minimal impact on the CPU where your main game logic runs.

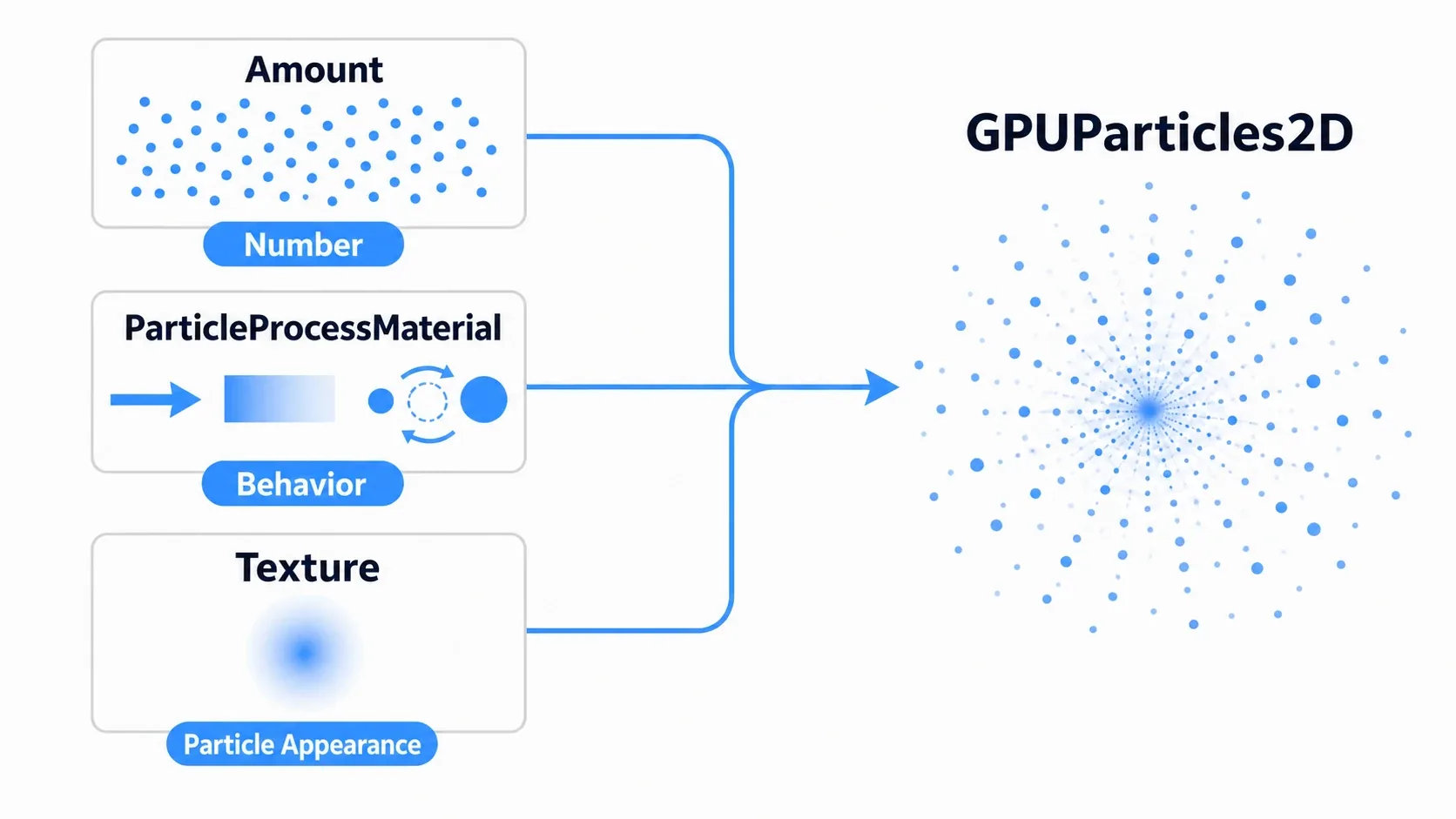

Node Basic Structure: Three Essential Elements

To make GPUParticles2D functional, you need to configure at least these three properties:

1. Amount: Maximum number of particles emitted at once. Directly affects performance.
2. Process Material: The heart that defines particle behavior (movement, color, size, etc.). Create by selecting New ParticleProcessMaterial.
3. Texture: The image that determines each particle's appearance. Typically a white-to-black gradient image.

---

2. Key ParticleProcessMaterial Settings

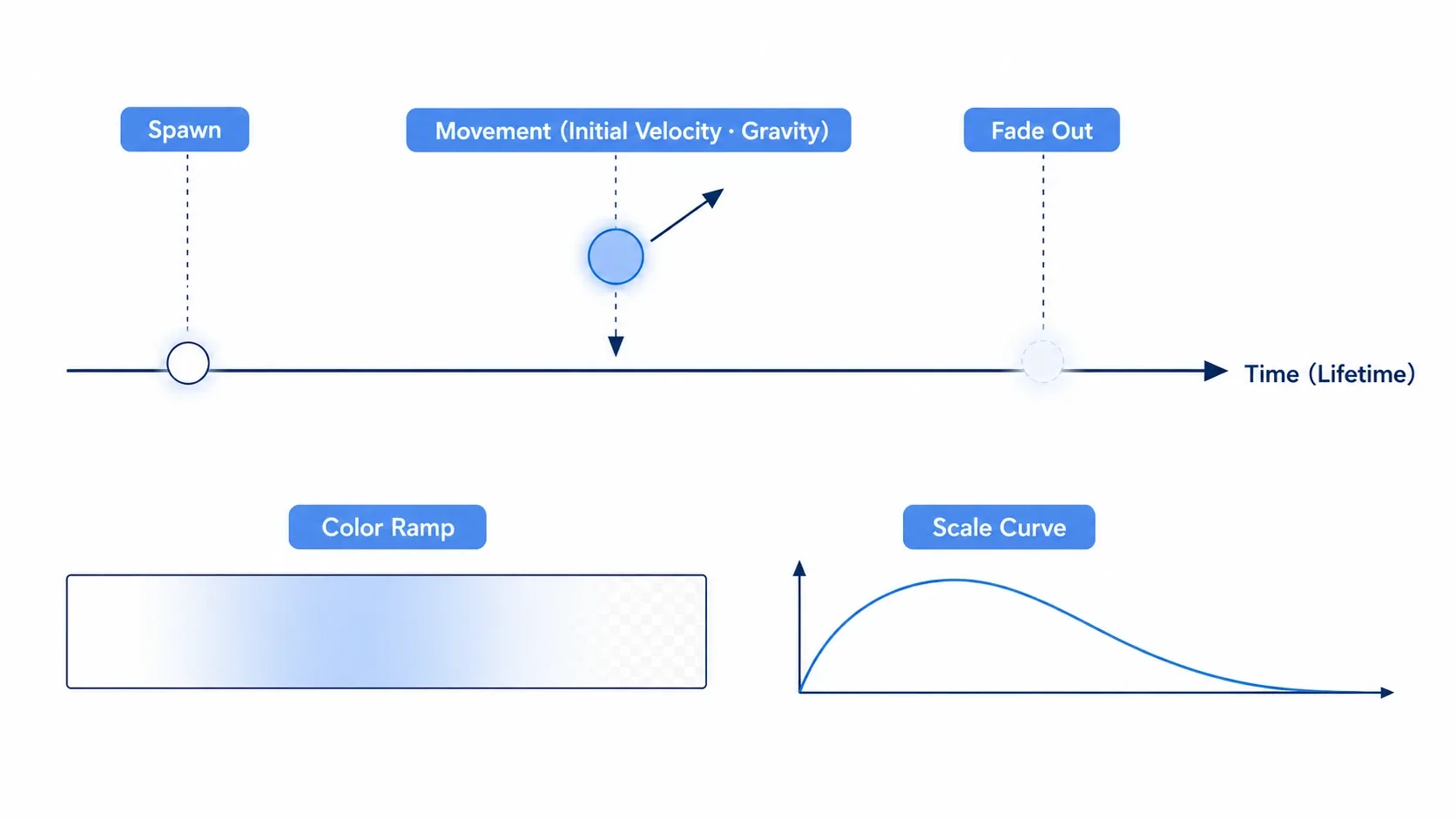

ParticleProcessMaterial provides diverse properties for choreographing a particle's "lifetime."

2.1. Emission and Lifetime (Time)

• Lifetime: Time in seconds until particles disappear. Determines effect duration.
• One Shot: When enabled, emits the number of particles specified by Amount once and stops (e.g., explosions).
• Preprocess: Pre-calculates the specified seconds of simulation at scene start.

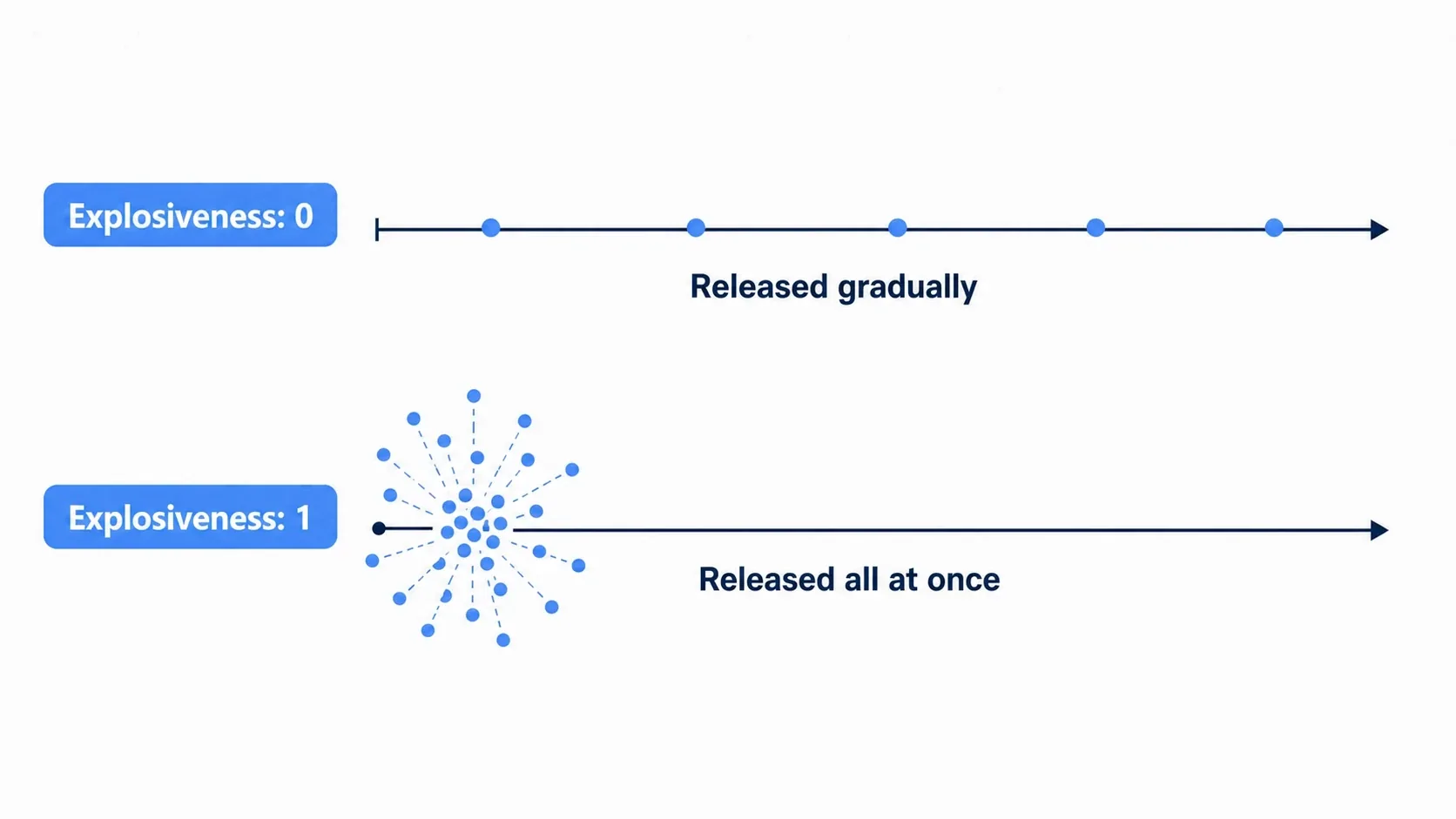

• Explosiveness: Used with One Shot. At 0, particles emit gradually over Lifetime; at 1, all particles emit instantly in frame 0.

2.2. Shape and Direction (Emission Shape & Direction)

• Emission Shape: Defines where particles originate. Point (single point) is basic, but Sphere, Ring, etc. are available.
• Direction: Specifies the base direction particles fly as a vector.
• Spread: Spread angle from the specified Direction (0–180 degrees).

2.3. Movement and Physics

• Initial Velocity: Particle initial speed. Setting Velocity Min and Velocity Max creates speed variation.
• Gravity: Gravity applied to particles. For smoke rising upward, use negative values (e.g., (0, -50)).
• Damping: Resistance to movement. Higher values make particles slow down faster.
• Angular Velocity: Particle rotation speed.

2.4. Color and Size Changes (Color & Scale)

Changes in appearance over time dramatically improve effect realism.

• Scale Curve: Defines size changes throughout particle lifetime via a curve.
• Color Ramp: Defines color changes throughout particle lifetime via a gradient. Don't forget to modify alpha (transparency) values.

---

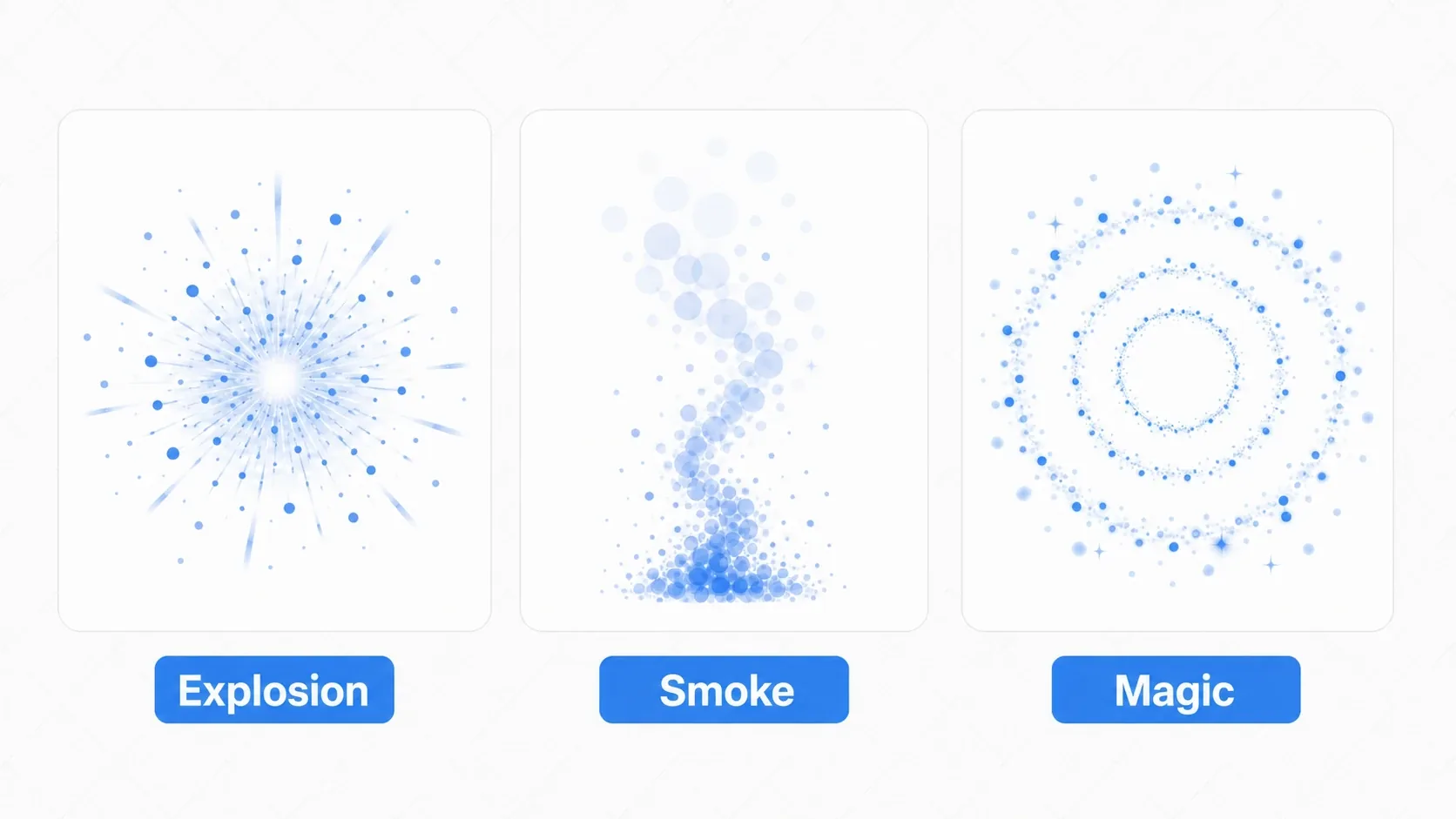

3. Practice: Recipes and Code Examples for Three Major Effects

Practice 1: "Explosion" with Shockwave

Explosions are dynamic effects that occur instantly, spread violently, and disappear quickly.

Settings Recipe:

• Time: Lifetime: 0.8, One Shot: on, Explosiveness: 1.0
• Emission Shape: Spread: 180
• Physics: Initial Velocity Min: 200, Initial Velocity Max: 300, Gravity: (0, 0)
• Scale Curve: Curve that starts at maximum size and gradually reaches 0.
• Color Ramp: [White(t=0)] -> [Yellow(t=0.2)] -> [Orange(t=0.5)] -> [Black/Transparent(t=1.0)]

GDScript: Playing Explosion Effect

# ExplosionEffect.gd
extends GPUParticles2D

func _ready():
    # Connect `finished` signal to receive callback when emission completes
    finished.connect(_on_finished)

# Function to play explosion
func explode(pos: Vector2):
    global_position = pos
    restart() # Emit particles

# Delete node when particles finish
func _on_finished():
    queue_free()

Note: The finished signal is only emitted when One Shot is enabled. For continuous effects (like smoke), it won't fire—use alternative methods (Timer or manual management) to detect completion.

Practice 2: Drifting "Smoke"

Smoke is a sustained effect that rises slowly, sways in the wind, diffuses, and eventually fades away.

Settings Recipe:

• Time: Lifetime: 3.5, One Shot: off
• Physics: Gravity: (0, -30), Damping: 5
• Turbulence: Enabled: on, Noise Strength: 2.0, Noise Scale: 1.5 (creates swaying motion)
• Scale Curve: Curve that slowly increases in size.
• Color Ramp: [White(t=0)] -> [Gray/Semi-transparent(t=0.7)] -> [Black/Transparent(t=1.0)]

Practice 3: Orbiting "Magic Projectile"

Magic effects are characterized by mystical movements that defy physics.

Settings Recipe:

• Time: Lifetime: 1.5, One Shot: on
• Emission Shape: Ring, Ring Radius: 10, Ring Height: 1
• Physics: Initial Velocity Min: 50, Initial Velocity Max: 80
• Color Ramp: [Cyan(t=0)] -> [Blue(t=0.5)] -> [Purple/Transparent(t=1.0)]
• Hue Variation: Variation Min: -0.1, Variation Max: 0.1 (adds hue variance)

GDScript: Performance Management with Effect Pooling

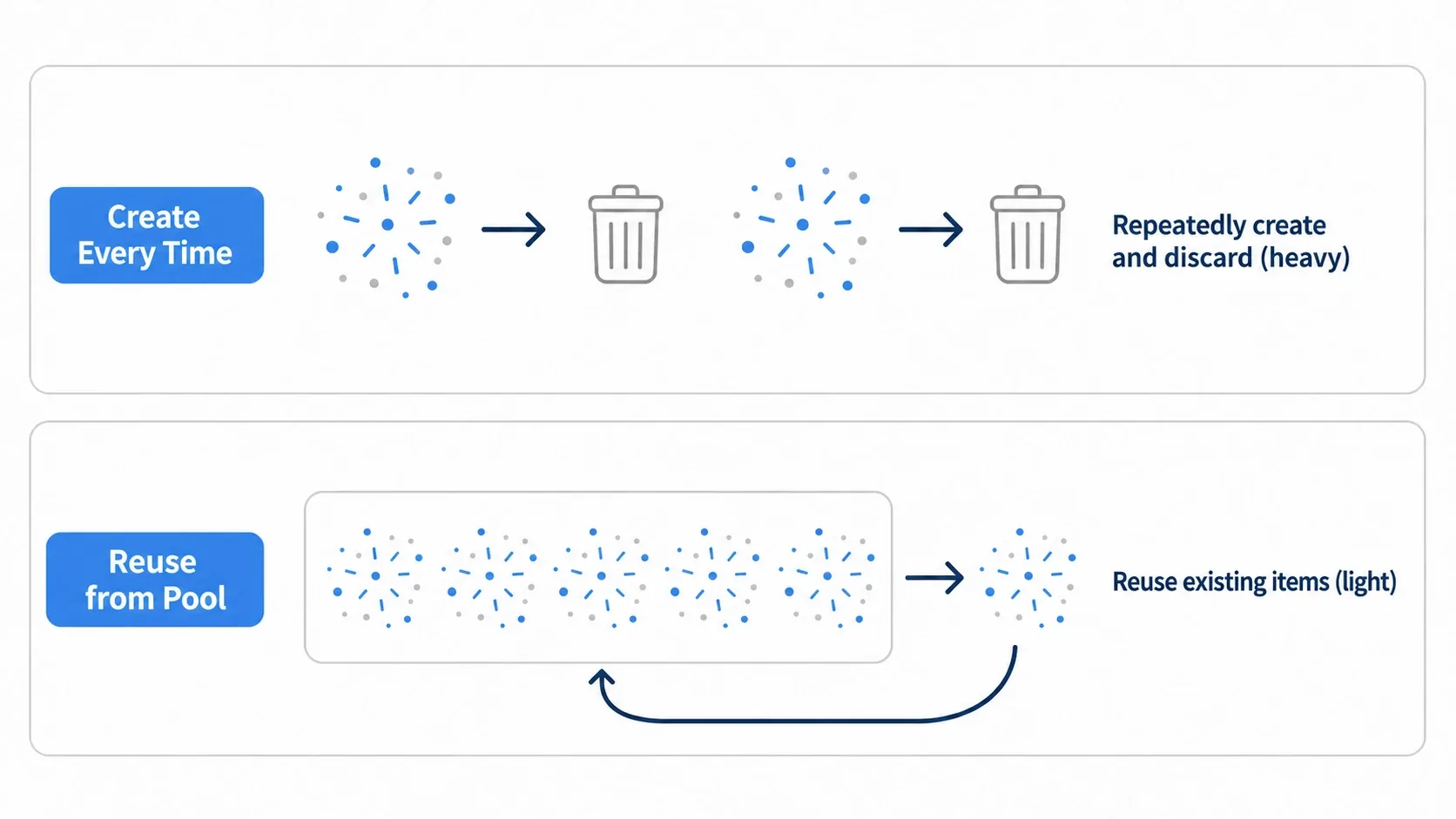

For effects like magic projectiles that are frequently created and destroyed, object pooling is the standard approach.

# EffectManager.gd
extends Node

@export var magic_bullet_scene: PackedScene
var bullet_pool: Array = []

func _ready():
    # Pre-create 10 instances
    for i in 10:
        var bullet = magic_bullet_scene.instantiate()
        bullet.visible = false
        add_child(bullet)
        bullet_pool.append(bullet)

func get_bullet() -> GPUParticles2D:
    for bullet in bullet_pool:
        if not bullet.visible:
            bullet.visible = true
            return bullet
    # Create new if pool is empty (fallback)
    var new_bullet = magic_bullet_scene.instantiate()
    add_child(new_bullet)
    bullet_pool.append(new_bullet)
    return new_bullet

# Return bullet to pool
func return_bullet(bullet: GPUParticles2D):
    bullet.visible = false
    bullet.emitting = false

---

4. Performance Optimization and Best Practices

Common Mistakes and Best Practices

Common Mistake	Best Practice
Setting Amount unnecessarily high	Set Amount to the minimum necessary; create density through Scale and movement
Not setting Visibility Rect	Always set Visibility Rect to suppress off-screen particle rendering
Forgetting to set Color Ramp alpha, leaving black particles visible	Always set alpha to 0 at lifetime end for smooth fade-out
Running all effects in _process	Utilize One Shot and finished signal to avoid unnecessary per-frame processing
Using instantiate()/queue_free() for frequently used effects	Implement object pooling to reuse instances
Using large textures as-is	Use "texture atlases" combining multiple effect images into one to reduce draw calls

Performance Considerations

• Overdraw: When semi-transparent particles overlap, the same pixel is drawn multiple times, increasing GPU load. Adjust particle size and count appropriately.
• Draw Calls: Each GPUParticles2D node generates one draw call. Consider using texture atlases to share materials and reduce draw calls.

Summary

By combining GPUParticles2D and ParticleProcessMaterial, you can create diverse effects like explosions, smoke, and magic with high performance.

The key to effect creation lies in adjusting these three elements:

1. Lifetime and One Shot: Effect duration and emission pattern.
2. Gravity and Damping: Particle movement and physical behavior.
3. Color Ramp and Scale Curve: Visual changes over time.

By combining these settings and experimenting with advanced properties like Emission Shape and Velocity Curve, you can build your own unique, richer game worlds.
