The navigation mesh isn't generating properly. What's the cause?

The most common cause is collision shape geometry that isn't closed or is too complex. Check if the `source_geometry_mode` of `NavigationRegion2D` matches your scene structure. Adjusting `cell_size` or `agent_radius` values may also help.

My character gets too close to walls. How do I fix this?

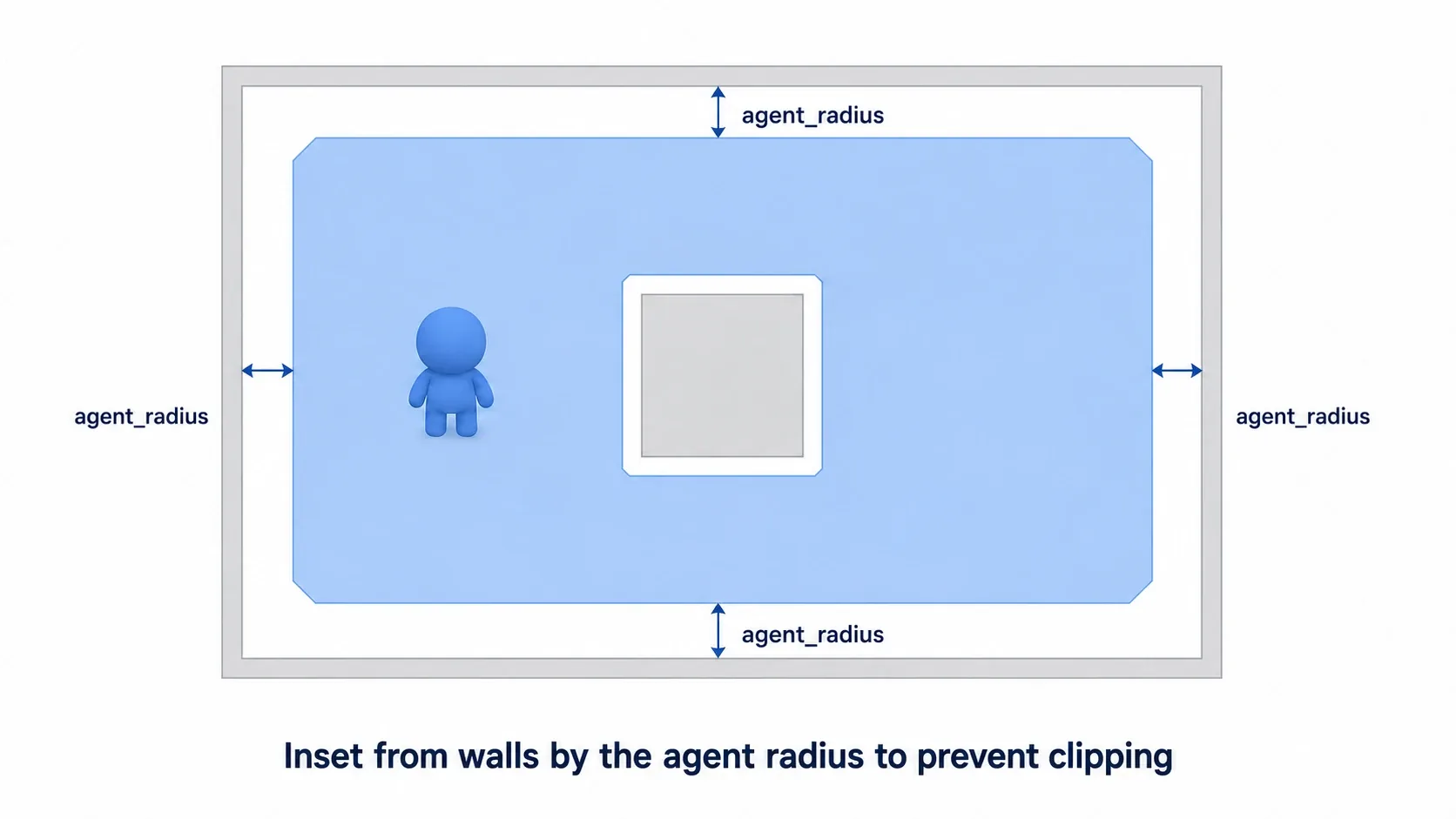

Increase the `agent_radius` in the NavigationPolygon resource. This generates the navigation mesh inward from walls and obstacles by the agent's radius, keeping characters at appropriate distances.

How do I make navigation work on moving floors or elevators?

Godot's standard navigation assumes static meshes. Supporting moving platforms requires advanced implementation like moving the navigation mesh itself or switching to custom movement logic while on the platform.

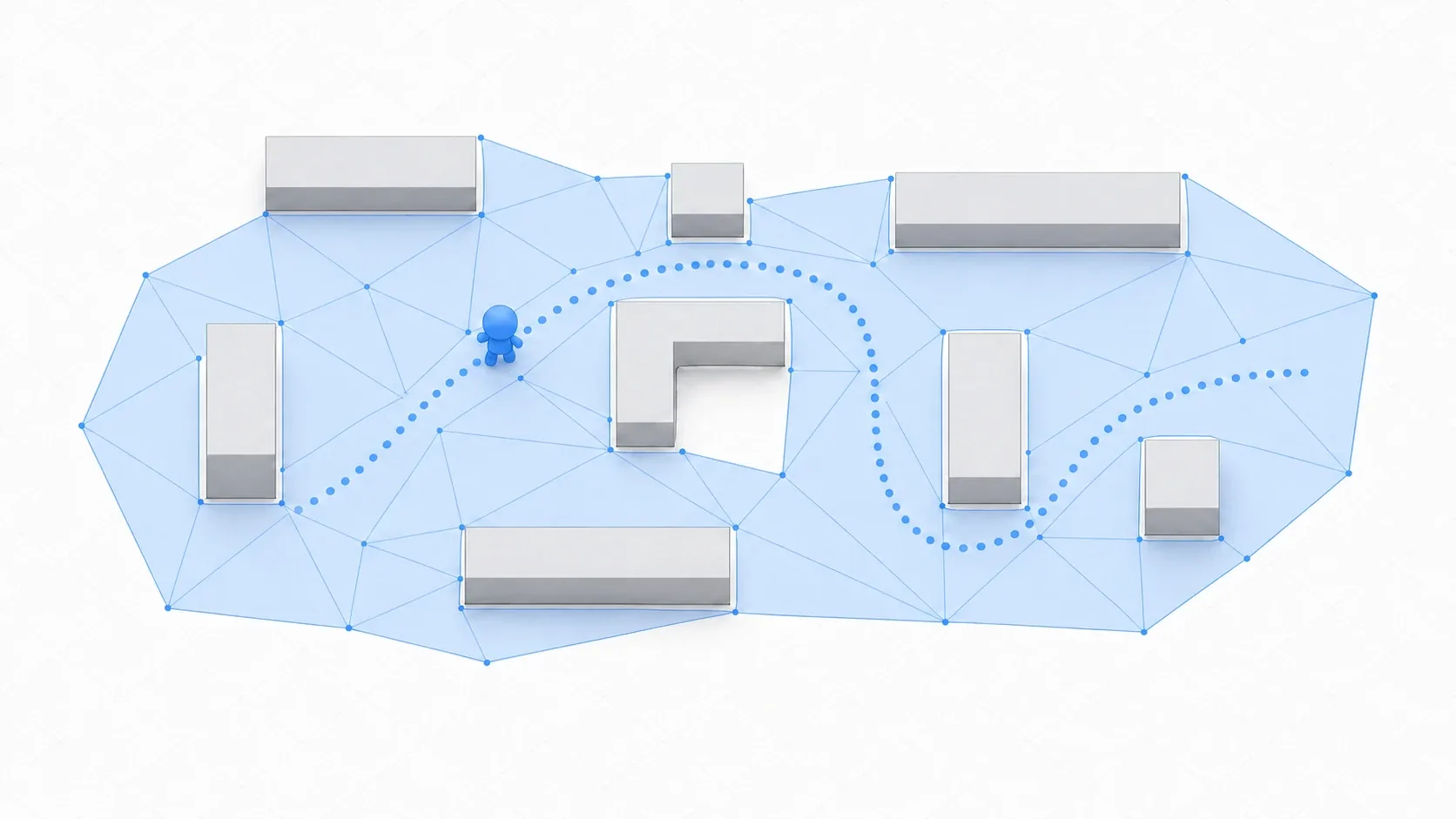

【Godot】Smart Obstacle Avoidance with NavigationRegion2D and Navigation Meshes

In game development, "smart AI movement" where NPCs navigate to destinations while avoiding obstacles greatly enhances player experience. In Godot Engine, NavigationRegion2D nodes and navigation meshes handle this pathfinding and obstacle avoidance.

This article explains the roles of these nodes and how to use them to create systems where characters smoothly navigate around obstacles, with concrete code examples.

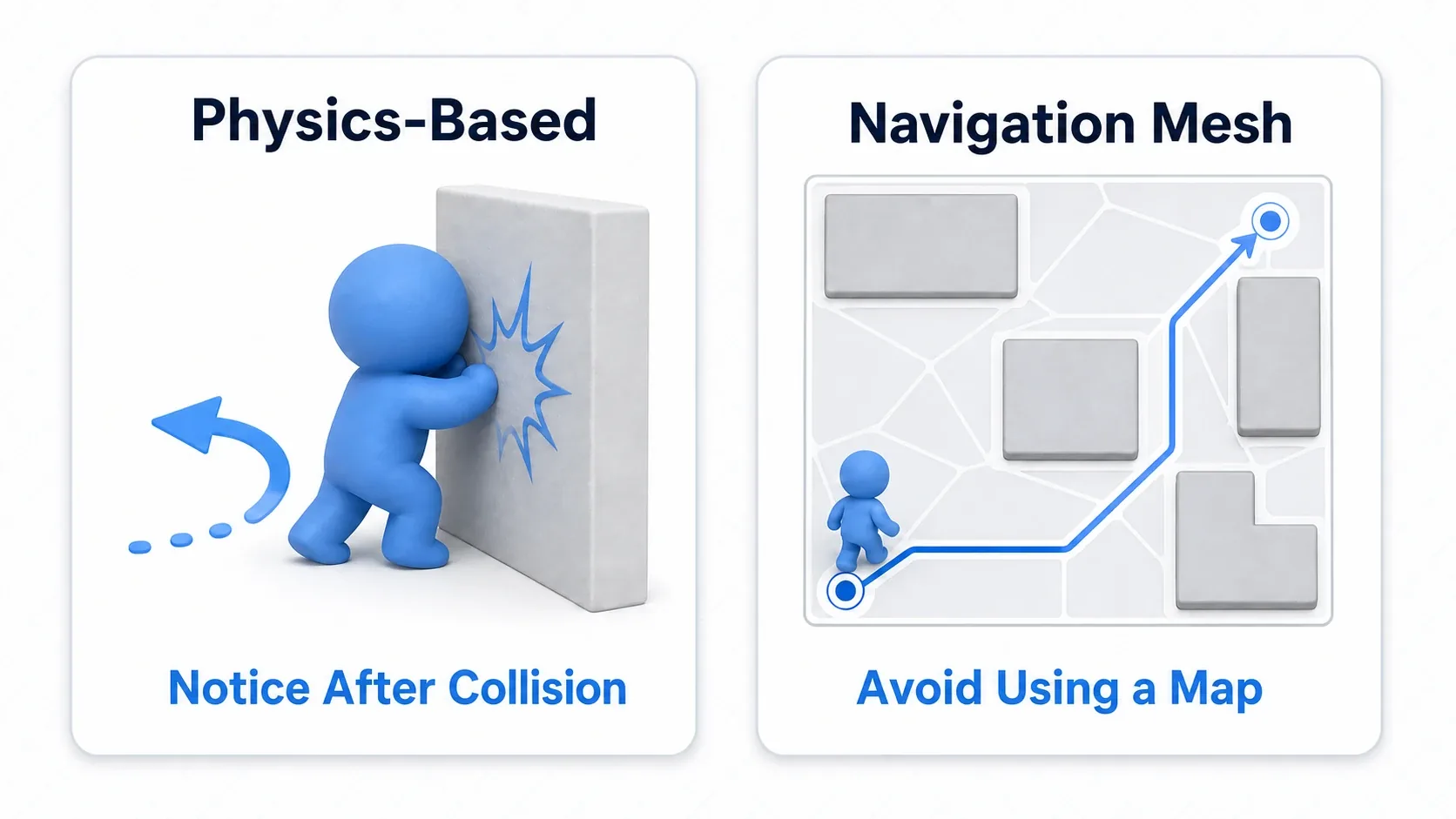

Why Navigation Meshes Are Necessary

Navigation meshes are necessary for character movement because traditional physics-based movement doesn't let characters know obstacles exist until they collide with them.

Physics-based Movement (Collision-based): Characters only recognize obstacles when they actually collide with them (StaticBody2D, etc.). This is like "hitting a dead end then looking for another path"—inefficient and unnatural.
Navigation Mesh (Path-based): "Navigable areas" are pre-defined as polygon meshes. AI references this map and calculates optimal paths that avoid obstacles before colliding.

NavigationRegion2D manages this "map for AI" and places it in scene space.

Generating (Baking) Navigation Meshes with NavigationRegion2D

The process of generating navigation meshes is called "baking." In Godot, navigable areas can be automatically calculated based on shapes of collision-enabled nodes placed in the scene.

Scene Preparation

First, construct your stage with nodes that have CollisionShape2D or CollisionPolygon2D, such as TileMap or StaticBody2D. These become "obstacles" for the navigation mesh.

NavigationRegion2D Setup

Add a NavigationRegion2D node to the scene and configure the following key properties in the inspector:

Property	Description	Recommended Value Hints
`navigation_polygon`	`NavigationPolygon` resource holding the navigation mesh data.	Create new with "New NavigationPolygon".
`enabled`	When `true`, this region is enabled on the navigation server.	`true` by default.
`source_geometry_mode`	How to obtain geometry for mesh generation.	For `TileMap`, use `SOURCE_GEOMETRY_GROUPS_WITH_CHILDREN` and add `TileMap` to a navigation group.

Important properties to set on the NavigationPolygon resource:

Property	Description	Recommended Value Hints
`agent_radius`	Radius of the moving agent. Paths are generated keeping safe distance from walls and obstacles.	Set slightly larger than character's collision radius.

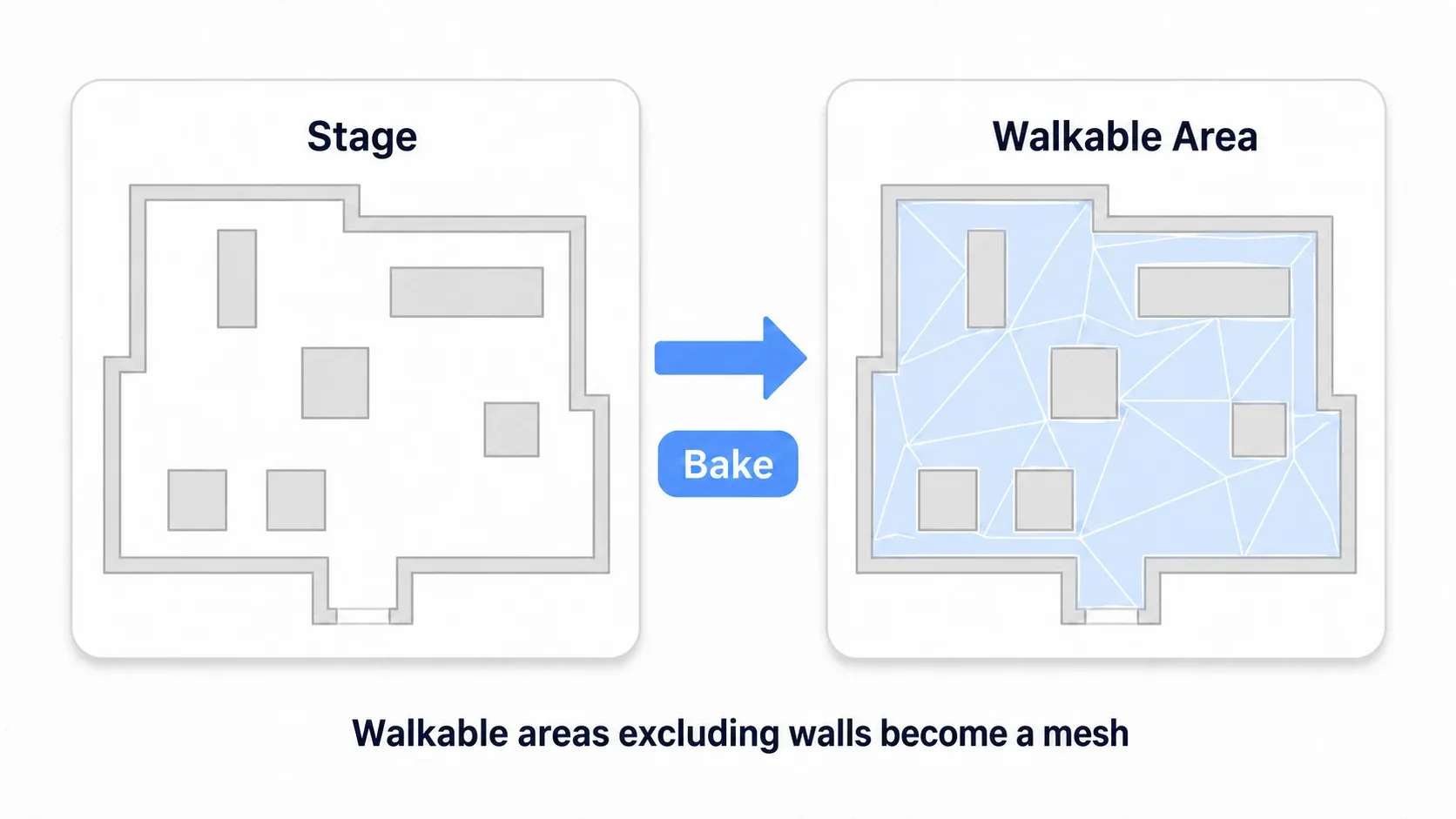

Baking the Mesh

Once configured, select the NavigationRegion2D node and click the "Bake NavigationMesh" button in the editor's top toolbar. On success, a blue semi-transparent polygon appears in the scene view. This is the area where AI can move.

Practical Movement Script with NavigationAgent2D

Once the navigation mesh is complete, implement characters that move on it. NavigationAgent2D plays the central role here.

Add NavigationAgent2D as a child node of the character you want to move (e.g., CharacterBody2D). This agent communicates with the navigation server, calculating paths and avoiding collisions with other agents.

Extended Movement Script

The following script moves a character to the clicked mouse position.

# Script attached to CharacterBody2D
extends CharacterBody2D

@export var speed: float = 200.0

@onready var navigation_agent: NavigationAgent2D = $NavigationAgent2D

func _ready() -> void:
    # Set agent properties
    navigation_agent.path_desired_distance = 4.0
    navigation_agent.target_desired_distance = 4.0

func _physics_process(delta: float) -> void:
    if navigation_agent.is_navigation_finished():
        return

    # Get current target position
    var current_agent_target: Vector2 = navigation_agent.get_next_path_position()

    # Calculate movement direction
    var new_velocity: Vector2 = (current_agent_target - global_position).normalized() * speed

    # Apply RVO (Reciprocal Velocity Obstacles) collision avoidance
    # Calling set_velocity() returns safe velocity via velocity_computed signal
    navigation_agent.set_velocity(new_velocity)

func _input(event: InputEvent) -> void:
    if event.is_action_pressed("click"):
        # Set mouse click position as target
        navigation_agent.target_position = get_global_mouse_position()

func _on_navigation_agent_2d_velocity_computed(safe_velocity: Vector2) -> void:
    # Only call move_and_slide() in signal handler
    # (avoid double calling with _physics_process)
    velocity = safe_velocity
    move_and_slide()

Pathfinding and RVO Avoidance

NavigationAgent2D serves two main roles:

Pathfinding: Provides the next movement point via get_next_path_position(), allowing characters to avoid static obstacles.
RVO Avoidance: Using the velocity_computed signal, obtain velocity vectors adjusted based on RVO (Reciprocal Velocity Obstacles) to avoid collisions with other moving agents.

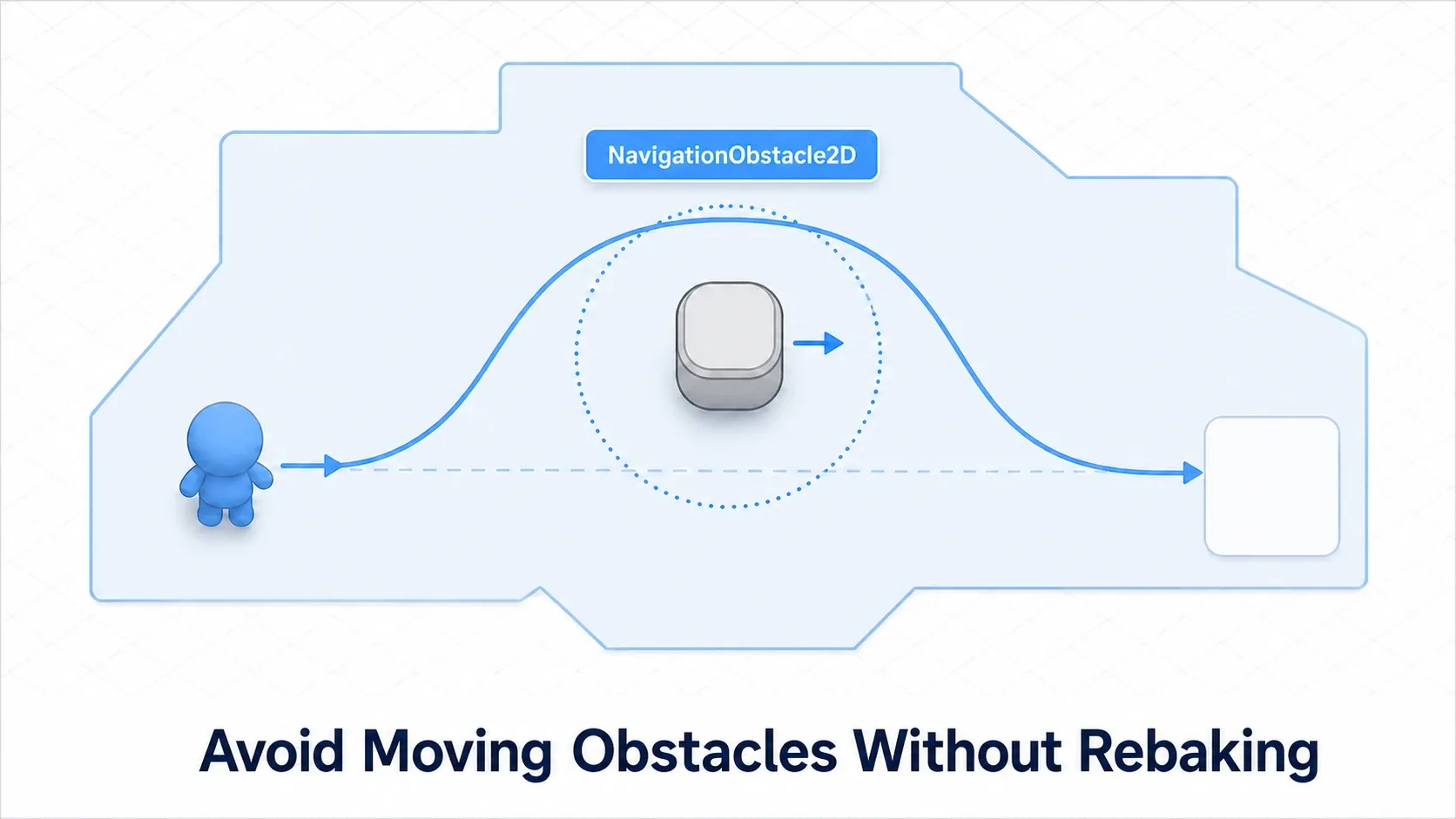

Handling Dynamic Obstacles

To avoid obstacles that appear dynamically during gameplay (e.g., objects placed by players), add a NavigationObstacle2D node to those obstacles.

NavigationObstacle2D sets up temporary "avoidance zones" around itself without re-baking the mesh. This causes other agents with NavigationAgent2D to adjust their behavior to avoid these dynamic obstacles.

Common Mistakes and Best Practices

Common Mistake	Best Practice
Setting `target_position` every frame in `_physics_process`.	Set `target_position` only once when the destination changes (e.g., on mouse click). Setting it every frame causes repeated path calculations and performance degradation.
Directly setting `global_position` to `get_next_path_position()` result.	This causes teleporting-like unnatural movement. `get_next_path_position()` is just "the next waypoint." Characters should move from current position toward that waypoint.
RVO avoidance not working (characters overlapping).	Use `NavigationAgent2D`'s `velocity_computed` signal and set the calculated `safe_velocity` to `CharacterBody2D`'s `velocity` for reliable results.
Dynamic obstacles not being avoided.	Check if `NavigationObstacle2D` is enabled and if obstacle collision layers and agent collision masks are properly configured.

Summary

NavigationRegion2D and navigation meshes are fundamental elements for implementing smart AI movement in Godot Engine.

Element	Role	Avoids
`NavigationRegion2D`	Define and hold navigable areas (navigation mesh)	Static walls and terrain
`NavigationAgent2D`	Execute pathfinding and adjust movement	Other moving agents, `NavigationObstacle2D`

By understanding and utilizing this system, your game's NPCs can understand map structure, coordinate with other characters, and smartly reach their destinations.
